Starter Solenoid Cable Replacement (LM2)

Removal Procedure

Unless directed otherwise, the ignition must be OFF with the key removed, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components. For Vehicles equipped with OnStar® (UE1) with Back Up Battery:The Back Up Battery is a redundant power supply to allow limited OnStar® functionality in the event of a main vehicle battery power disruption to the VCIM (OnStar®module). Do not disconnect the main vehicle battery or remove the OnStar® fuse with the ignition key in any position other than OFF. Retained accessory power should be allowed to time out or be disabled (simply opening the driver door should disable retained accessory power) before disconnecting power. Disconnecting power to the OnStar® module in any way while the ignition is On or with retained accessory power activated may cause activation of the OnStar® Back-Up Battery system and will discharge and permanently damage the back-up battery. Once the Back-Up Battery is activated it will stay on until it has completely discharged. The back-up battery is not rechargeable and once activated the back-up battery must be replaced.

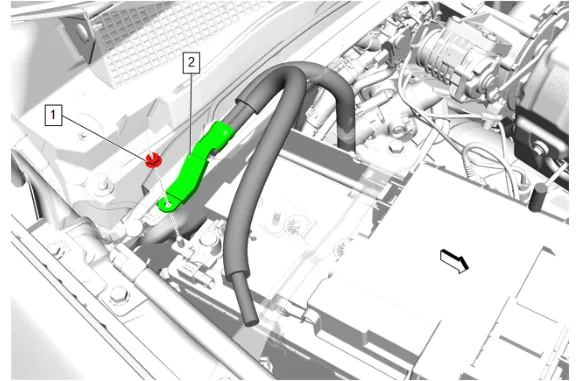

Starter Solenoid Cable Replacement (LM2) — figure 1

Battery Post Negative Cable Clamp Nut (1) @ Battery Monitor Module » Remove
Starter Solenoid Cable (2) » Reposition away

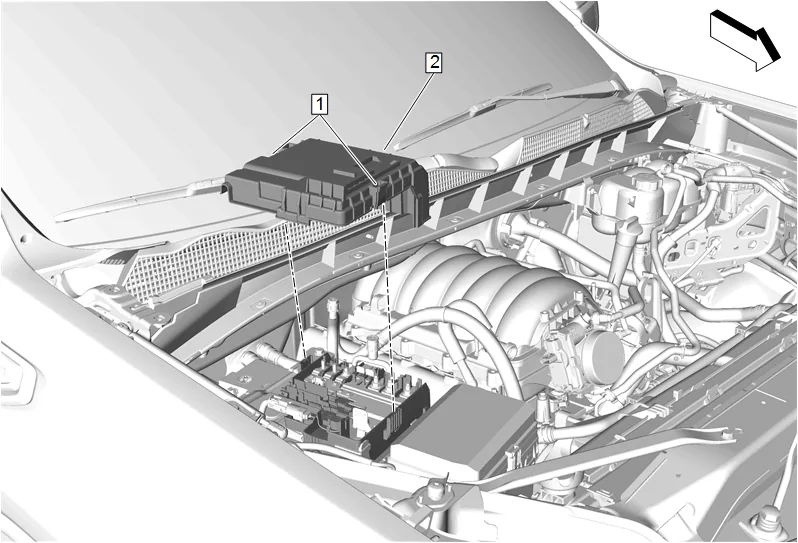

Starter Solenoid Cable Replacement (LM2) — figure 2

Retaining Tab (1) » Disengage [2x]
Front Compartment Fuse Block Cover (2) » Remove

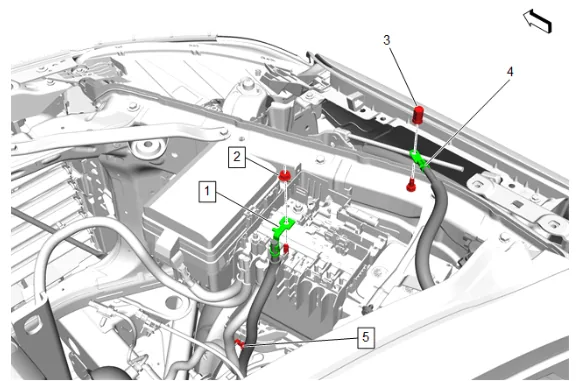

Starter Solenoid Cable Replacement (LM2) — figure 3

Battery Positive Cable Nut (2) » Remove
Starter Solenoid Cable (1) » Remove
Battery Negative Cable Ground Nut (3) » Remove
Starter Solenoid Cable (4) » Remove
Retainer (5) » Disengage
Front Wheelhouse Liner - Right Side » Remove — Front Wheelhouse Liner Replacement

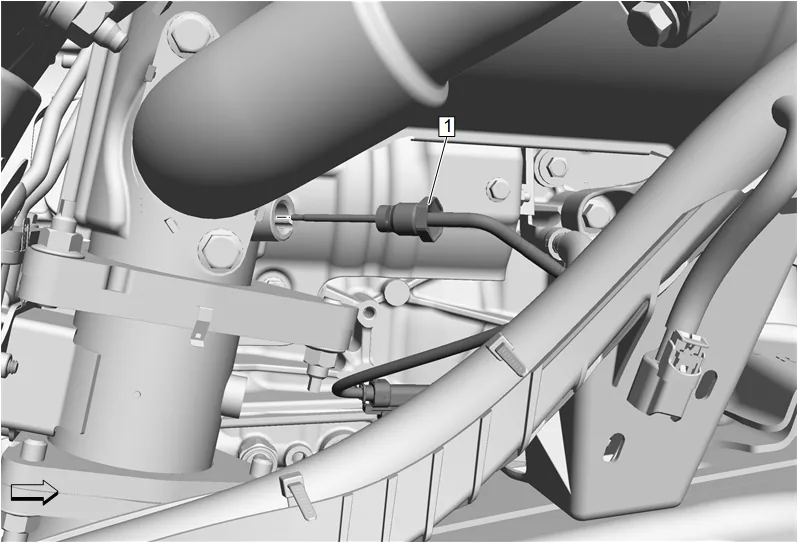

Starter Solenoid Cable Replacement (LM2) — figure 4

Exhaust Temperature Sensor - Position 3 (1) » Remove and position aside

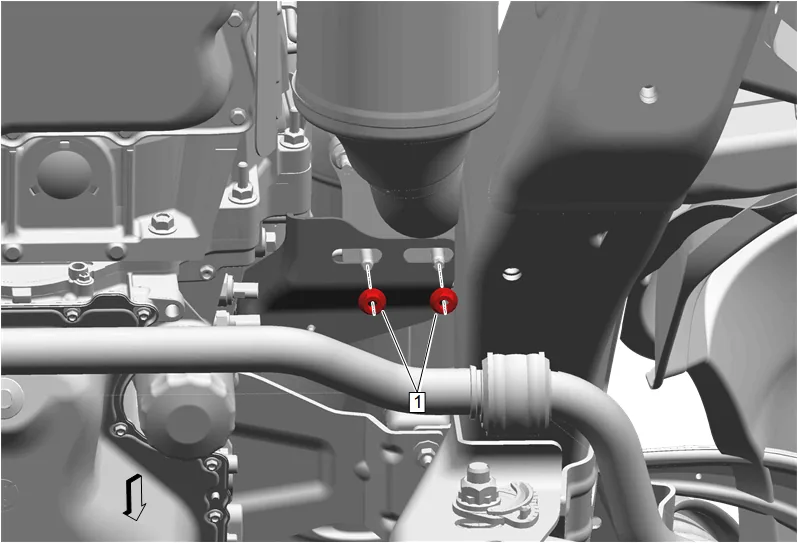

Starter Solenoid Cable Replacement (LM2) — figure 5

Exhaust Front Pipe Nut (1) » Remove [2x]

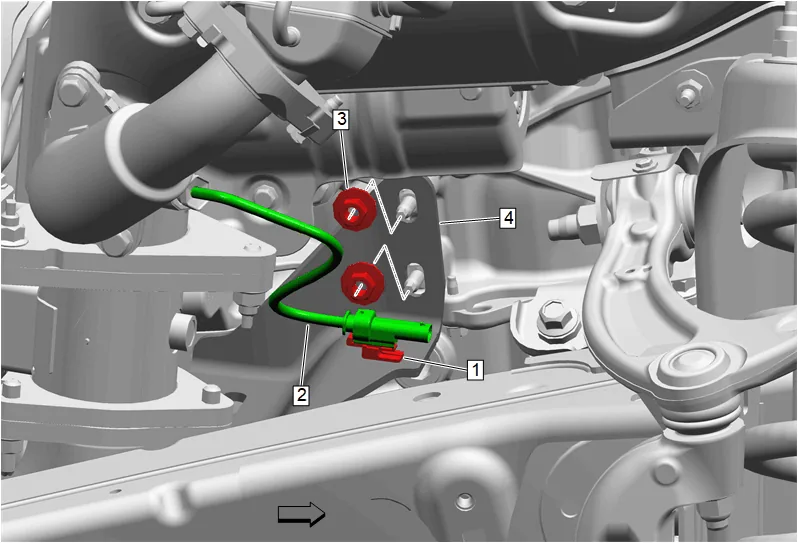

Starter Solenoid Cable Replacement (LM2) — figure 6

Heated Oxygen Sensor Electrical Connector (2) @ Catalytic Converter Brace Bracket (4) » Remove
Catalytic Converter Brace Bracket Nut (3) » Remove [2x]
Catalytic Converter Brace Bracket (4) » Remove

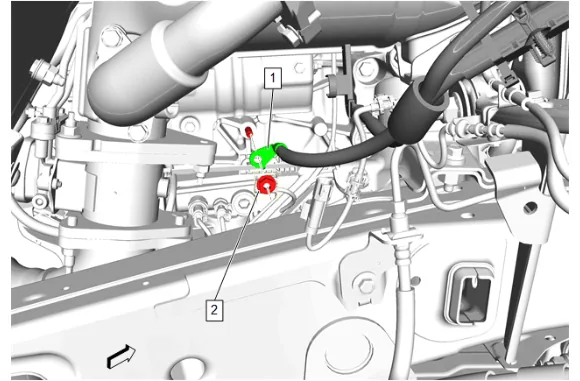

Starter Solenoid Cable Replacement (LM2) — figure 7

Engine Wiring Harness Ground Nut (2) » Remove
Starter Solenoid Cable (1) » Remove

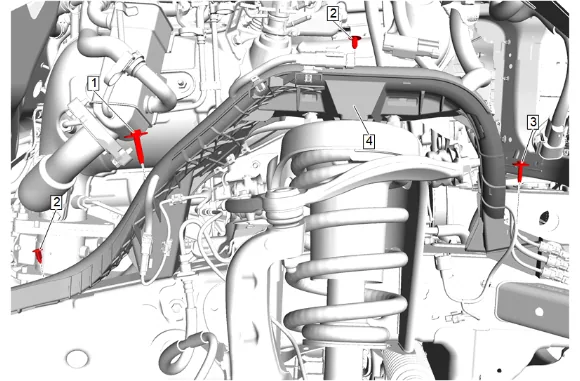

Starter Solenoid Cable Replacement (LM2) — figure 8

Chassis Front Wiring Harness Bracket Bolt - Rear (1) » Remove
Chassis Wiring Harness Front Bracket Retainer (2) » Remove [2x]
Chassis Front Wiring Harness Bracket Bolt - Front (3) » Remove
Remove the positive battery cable retainers from the chassis wiring harness front bracket.
Chassis Wiring Harness (4) » Reposition

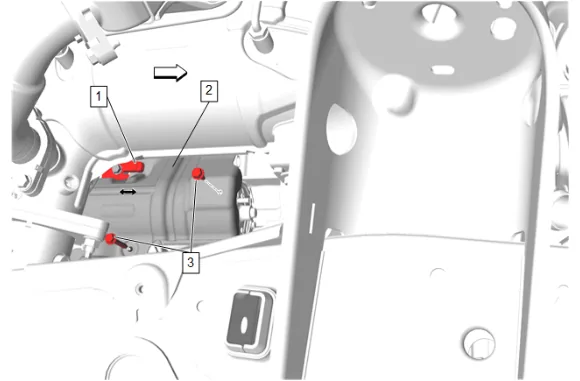

Starter Solenoid Cable Replacement (LM2) — figure 9

Starter Heat Shield Bolt (3) » Remove [2x]
Disengage the starter heat shield (2) from the retainer (1) .

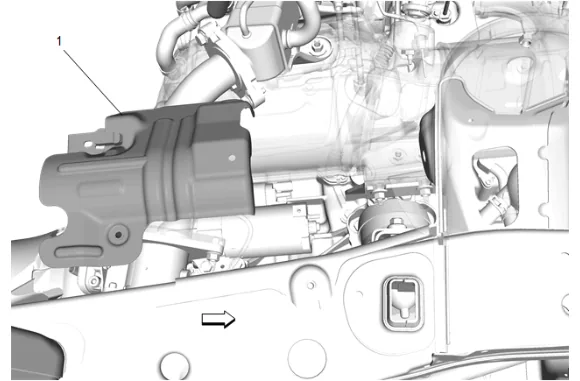

Starter Solenoid Cable Replacement (LM2) — figure 10

Starter Heat Shield (1) » Remove

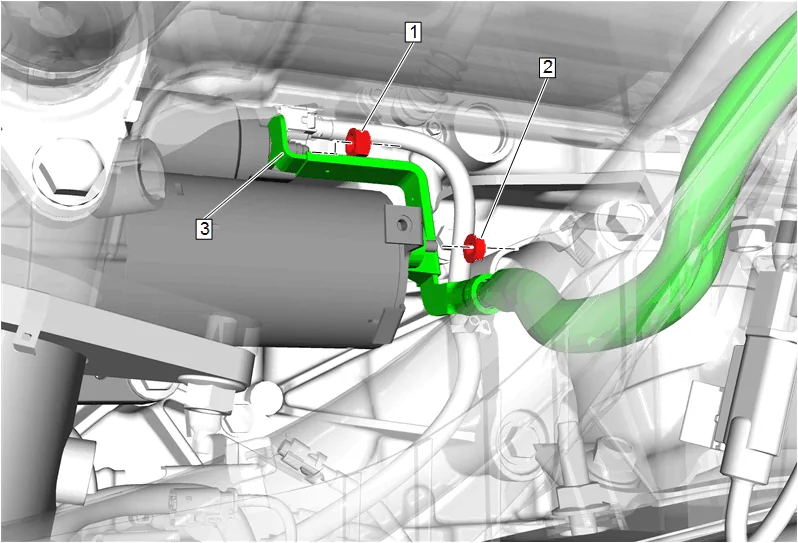

Starter Solenoid Cable Replacement (LM2) — figure 11

Starter Solenoid Cable Nut (1) » Remove
Wiring Harness Conduit Nut (2) » Remove
Starter Solenoid Cable (3) » Remove

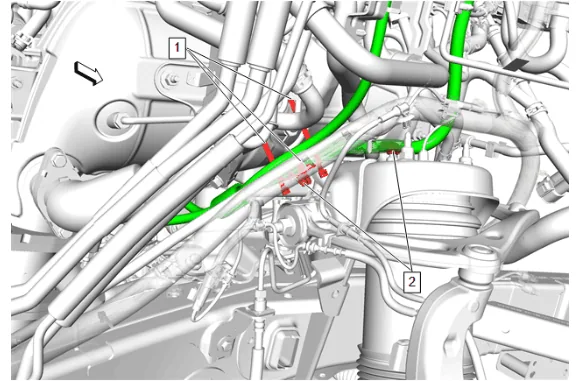

Starter Solenoid Cable Replacement (LM2) — figure 12

Cable Tie (1) » Remove [3x]
Retainer (2) » Disengage [2x]
Lower the vehicle.

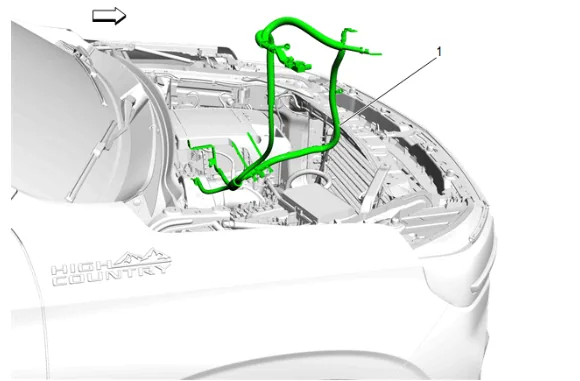

Starter Solenoid Cable Replacement (LM2) — figure 13

Starter Solenoid Cable (1) » Remove Installation Procedure
Starter Solenoid Cable (1) » Install

Starter Solenoid Cable (3) » Install

Starter Solenoid Cable Nut (1) » Install and tighten — Fastener Specifications
Wiring Harness Conduit Nut (2) » Install and tighten — Fastener Specifications
Cable Tie (1) » Install [3x]
Retainer (2) » Engage [2x]

Starter Heat Shield (1) » Install

Engage the starter heat shield (2) into the retainer (1).
Starter Heat Shield Bolt (3) » Install and tighten [2x] — Fastener Specifications
Chassis Wiring Harness (4) » Install
Install the positive battery cable retainers to the chassis wiring harness front bracket.
Chassis Front Wiring Harness Bracket Bolt - Front (3) » Install and tighten — Fastener Specifications
Chassis Front Wiring Harness Bracket Bolt - Rear (1) » Install and tighten — Fastener Specifications
Chassis Wiring Harness Front Bracket Retainer (2) » Install [2x]
Starter Solenoid Cable (1) » Install
Engine Wiring Harness Ground Nut (2) » Install and tighten — Fastener Specifications
Catalytic Converter Brace Bracket (4) » Install
Catalytic Converter Brace Bracket Nut (3) » Install and tighten [2x] — Fastener Specifications
Heated Oxygen Sensor Electrical Connector (2) @ Catalytic Converter Brace Bracket (4) » Install
Exhaust Temperature Sensor - Position 3 (1) » Install and tighten — Fastener Specifications
Exhaust Front Pipe Nut (1) » Install and tighten [2x] — Fastener Specifications
Front Wheelhouse Liner - Right Side » Install — Front Wheelhouse Liner Replacement
Starter Solenoid Cable (1) » Install
Battery Positive Cable Nut (2) » Install and tighten — Fastener Specifications
Starter Solenoid Cable (4) » Install
Battery Negative Cable Ground Nut (3) » Install and tighten — Fastener Specifications
Retainer (5) » Engage
Front Compartment Fuse Block Cover (2) » Install
Retaining Tab (1) » Engage [2x]
Starter Solenoid Cable (2) » Install
Battery Post Negative Cable Clamp Nut (1) @ Battery Monitor Module » Install and tighten — Fastener Specifications
