Nitrogen Oxides Sensor Replacement - Position 3

Warning

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

Warning

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

Nitrogen Oxides Sensor Replacement - Position 3 — figure 1

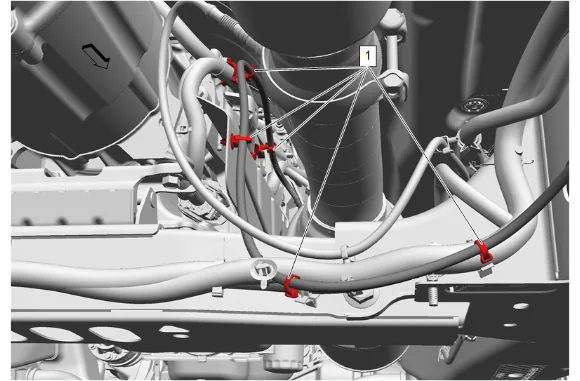

2. Disengage the nitrogen oxides sensor wiring harness clips (1).

Nitrogen Oxides Sensor Replacement - Position 3 — figure 2

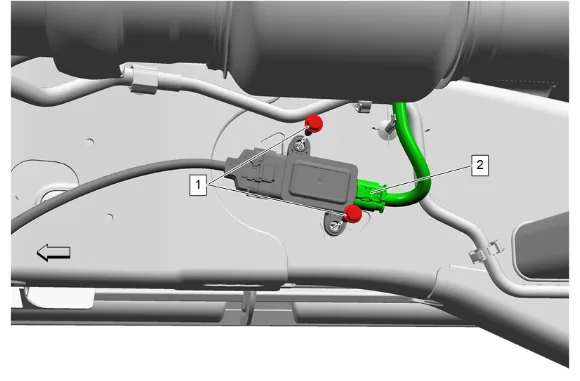

3. Nitrogen Oxides Sensor Control Module Bracket Bolt (1) » Remove [2x]
4. Disconnect the electrical connector (2).

Nitrogen Oxides Sensor Replacement - Position 3 — figure 3

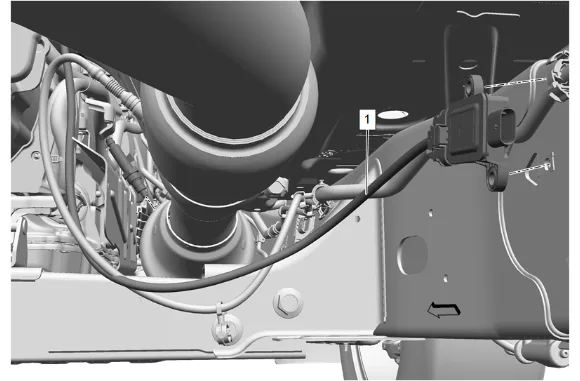

5. Nitrogen Oxides Sensor (1) » Remove Installation Procedure

Caution

Refer to Component Fastener Tightening Caution.

1. Nitrogen Oxides Sensor (1) » Install and tighten — Fastener Specifications

2. Connect the electrical connector (2)

Caution

Refer to Fastener Caution.

3. Nitrogen Oxides Sensor Control Module Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Engage the nitrogen oxides sensor wiring harness clips (1).

5. Lower the vehicle.

6. Perform the following reset procedure. Nitrogen Oxides Catalytic Converter Reductant Loading Reset
