Rear Side Door Inside Handle Illumination Lamp Replacement

Rear Side Door Inside Handle Illumination Lamp Replacement Removal Procedure

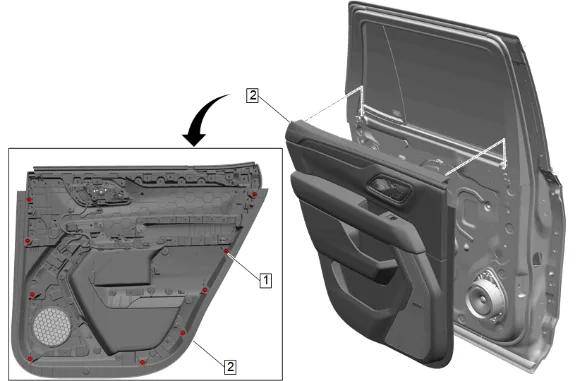

Rear Side Door Inside Handle Illumination Lamp Replacement — figure 1

1. Rear Side Door Trim (2) » Remove — Rear Side Door Trim Removal and Installation

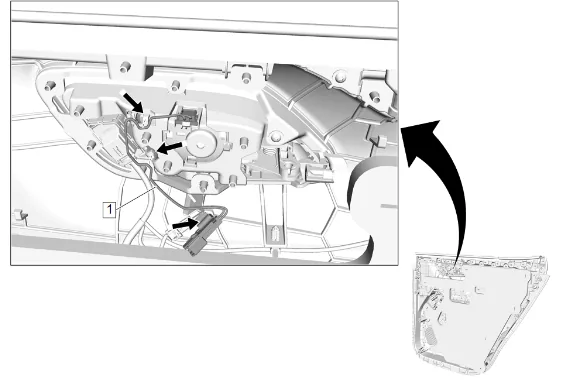

Rear Side Door Inside Handle Illumination Lamp Replacement — figure 2

2. Disconnect the electrical connector.

Note

Observe the mounting and location of the wiring harness to ensure proper reinstallation.

3. Release the rear side door inside handle illumination lamp wiring harness (1) from the rear side door trim.

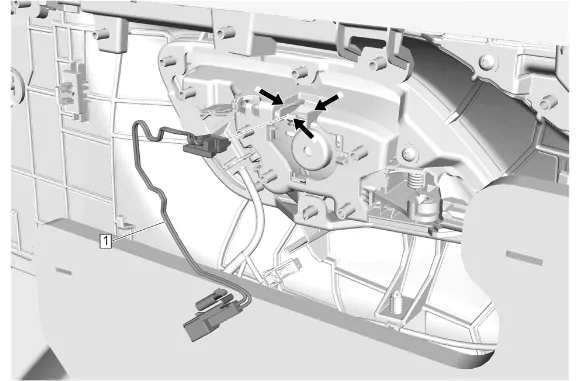

Rear Side Door Inside Handle Illumination Lamp Replacement — figure 3

4. Release the retaining tabs.

5. Rear Side Door Inside Handle Illumination Lamp (1) » Remove Installation Procedure

6. Rear Side Door Inside Handle Illumination Lamp (1) » Install

7. Ensure the retaining tabs have fully secured.

8. Secure the rear side door inside handle illumination lamp wiring harness (1) to the rear side door trim.

9. Connect the electrical connector.

10. Rear Side Door Trim (2) » Install — Rear Side Door Trim Removal and Installation
