Tahoe / Yukon Service Manual

Rear Wheelhouse Liner Replacement

Removal Procedure

  1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

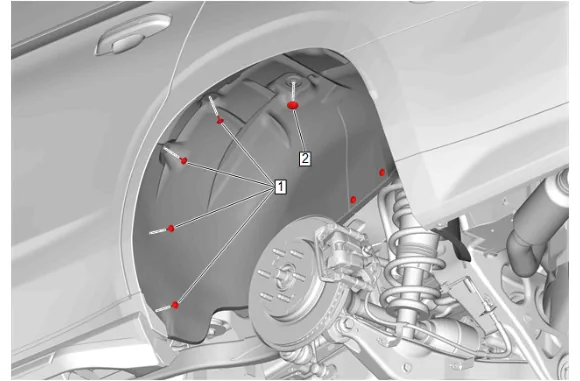

Rear Wheelhouse Liner Replacement — figure 1
Rear Wheelhouse Liner Replacement — figure 1
  1. Rear Wheelhouse Liner Bolt (1) » Remove [4x]
  2. Rear Wheelhouse Liner Retainer (2) » Remove

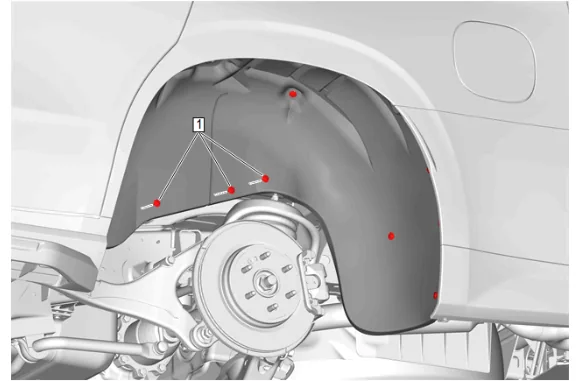

Rear Wheelhouse Liner Replacement — figure 2
Rear Wheelhouse Liner Replacement — figure 2
  1. Rear Wheelhouse Liner Bolt (1) » Remove [3x]

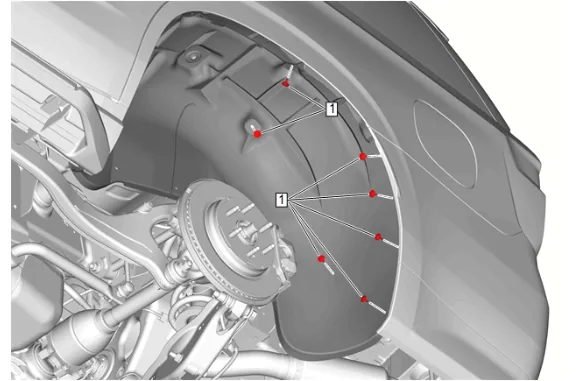

Rear Wheelhouse Liner Replacement — figure 3
Rear Wheelhouse Liner Replacement — figure 3
  1. Rear Wheelhouse Liner Bolt (1) » Remove [7x]

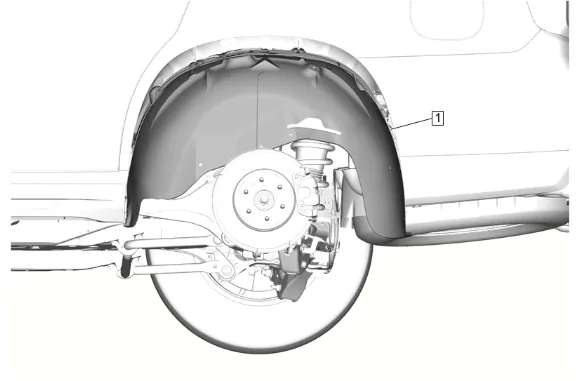

Rear Wheelhouse Liner Replacement — figure 4
Rear Wheelhouse Liner Replacement — figure 4

  1. Rear Wheelhouse Liner (1) » Remove Installation Procedure

  2. Rear Wheelhouse Liner (1) » Install

  1. Rear Wheelhouse Liner Bolt (1) » Install and tighten [7x] — Fastener Specifications

  2. Rear Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

  3. Rear Wheelhouse Liner Retainer (2) » Install

  4. Rear Wheelhouse Liner Bolt (1) » Install and tighten [4x] — Fastener Specifications

  5. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
