Front Floor Rear Console Trim Plate Replacement (D07)

Removal Procedure

Front Floor Rear Console Trim Plate Replacement (D07) — figure 1

1. Front Floor Console Rear Cup Holder Liner (1) » Remove
2. Front Floor Console Cup Holder Bolt (2) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Rear Cup Holder (3) » Remove

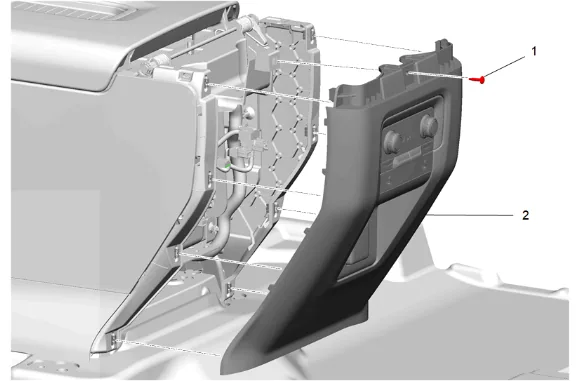

Front Floor Rear Console Trim Plate Replacement (D07) — figure 2

5. Front Floor Console Rear Cover Bolt (1) » Remove
6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Front Floor Console Rear Trim Panel (2) » Remove
8. Disconnect the electrical connectors.

Front Floor Rear Console Trim Plate Replacement (D07) — figure 3

9. Front Floor Compartment Bolt (1) » Remove [4x]
10. Front Floor Rear Console Trim Plate (2) » Remove

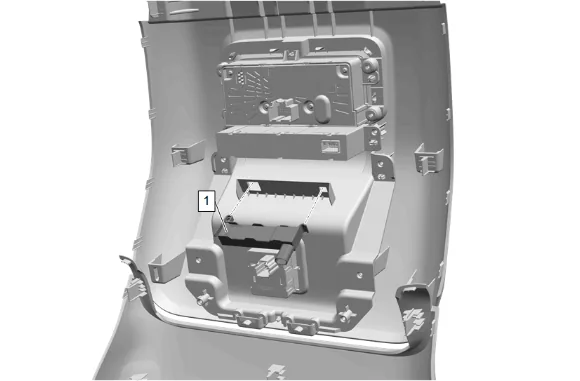

Front Floor Rear Console Trim Plate Replacement (D07) — figure 4

11. Disengage the retaining tab that secures the antenna to the panel.
12. Low Frequency Console Number 2 Antenna (1) » Remove

Front Floor Rear Console Trim Plate Replacement (D07) — figure 5

13. Using a suitable plastic trim tool, release the retaining tabs.

14. Front Floor Console Accessory Power Rear Receptacle (1) » Remove Installation Procedure

15. Front Floor Console Accessory Power Rear Receptacle (1) » Install

16. Low Frequency Console Number 2 Antenna (1) » Install

17. Front Floor Rear Console Trim Plate (2) » Install

Caution

Refer to Fastener Caution.

4. Front Floor Compartment Bolt (1) » Install and tighten [4x] — Fastener Specifications

5. Connect the electrical connectors.

6. Front Floor Console Rear Trim Panel (2) » Install

7. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

8. Front Floor Console Rear Cup Holder (3) » Install

9. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

10. Front Floor Console Rear Cup Holder Liner (1) » Install
