Fastener Specifications (6)

Fastener Specifications Table 1: Front Side Door Latch Table 2: Front Side Door Latch Striker Table 3: Front Side Door Lock Cover Table 4: Front Side Door Lock Cylinder Bezel Table 5: Front Side Door Outside Handle Bracket Table 6: Rear Closure Fixed Handle Applique Table 7: Rear Closure Hands Free Module Table 8: Rear Closure Hands Free Module Bracket Table 9: Rear Compartment Lid Latch Table 10: Rear Compartment Lid Latch Striker Table 11: Rear Side Door Latch Table 12: Rear Side Door Latch Striker Table 13: Rear Side Door Lock Cylinder Opening Cover Table 14: Rear Side Door Outside Handle Bracket

Fastener Specifications (6) — figure 1

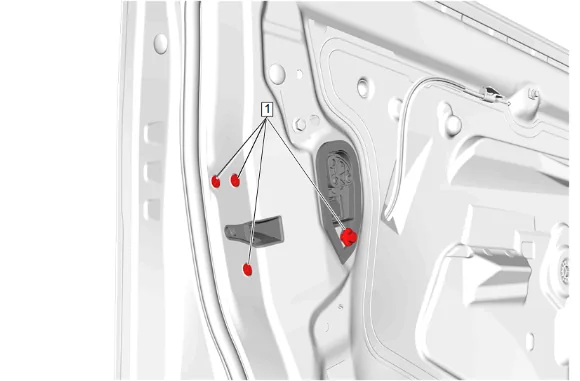

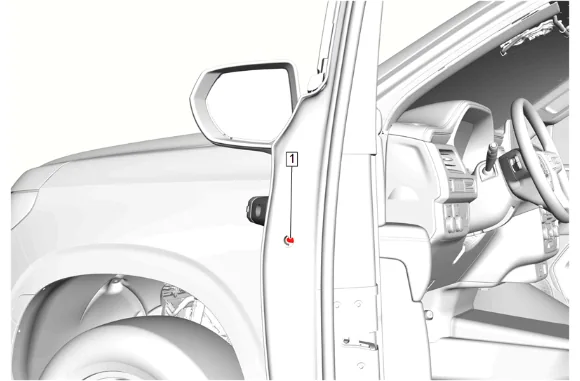

Front Side Door Latch

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Front Side Door	—	—	9 Y (80 lb in)	Front Side Door
		©	2023 Gen	eral Motor	s. All rights reserved.

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
	Latch Bolt [4x]				Latch Replacement

Fastener Specifications (6) — figure 2

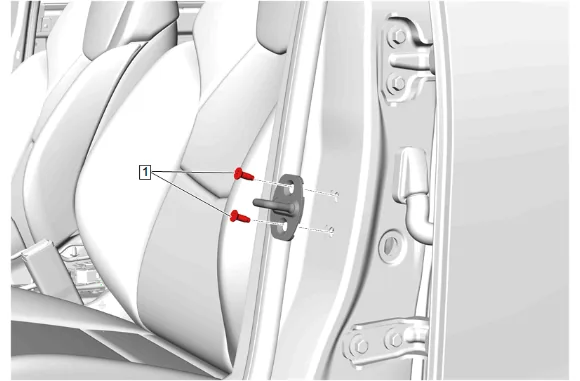

Front Side Door Latch Striker

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Side Door Latch Striker Bolt [2x]	—	—	22 Y(16 lb ft)	Front Side Door Latch Striker Replacement

Fastener Specifications (6) — figure 3

Front Side Door Lock Cover

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Side Door Lock Cover Bolt [3x]	—	—	2.2 Y (19 lb in)	Front Side Door Lock Cover Replacement

Fastener Specifications (6) — figure 4

Front Side Door Lock Cylinder Bezel

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Side Door Outside Handle Bracket Rear Bolt	—	—	4.7 Y (42 lb in)	Front Side Door Lock Cylinder Bezel Replacement

Fastener Specifications (6) — figure 5

Front Side Door Outside Handle Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Side Door Outside Handle Bracket Bolt	—	—	4.7 Y (42 lb in)	Front Side Door Outside Handle Bracket Replacement

Fastener Specifications (6) — figure 6

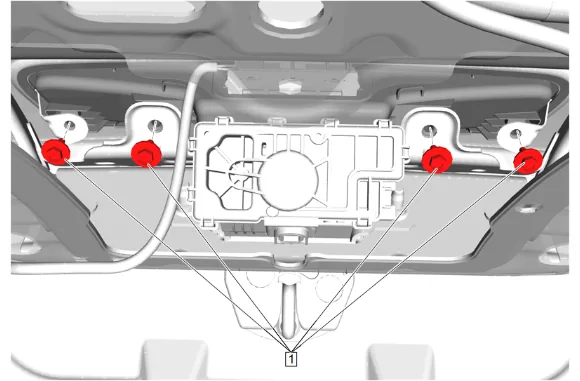

Rear Closure Fixed Handle Applique

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Closure Fixed Handle Bolt [4x]	—	—	4.7 Y (42 lb in)	Rear Closure Fixed Handle Applique Replacement

Fastener Specifications (6) — figure 7

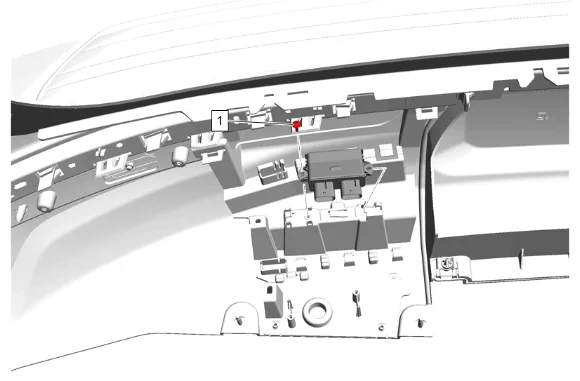

Rear Closure Hands Free Module

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Closure Hands Free Module Bolt	—	—	1 Y (9 lb in)	Rear Closure Hands Free Module Replacement

Fastener Specifications (6) — figure 8

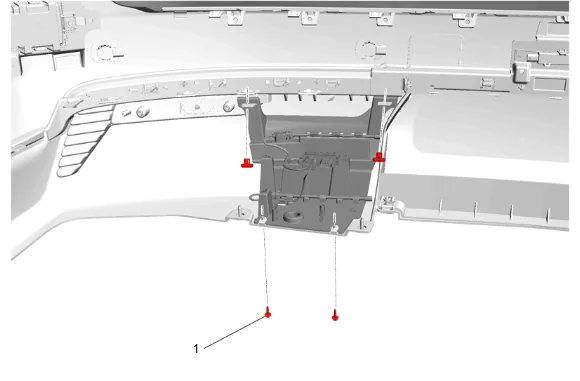

Rear Closure Hands Free Module Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Closure Hands Free Module Bracket Bolt [2x]	—	—	2.5 Y (22 lb in)	Rear Closure Hands Free Module Bracket Replacement

Fastener Specifications (6) — figure 9

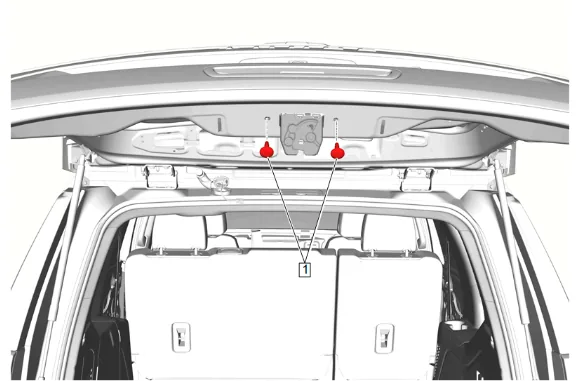

Rear Compartment Lid Latch

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Liftgate Latch Bolt [2x]	—	—	22 Y(16 lb ft)	Liftgate Latch Replacement

Fastener Specifications (6) — figure 10

Rear Compartment Lid Latch Striker

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Liftgate Latch Striker Bolt [2x]	—	—	22 Y(16 lb ft)	Liftgate Latch Striker Replacement

Fastener Specifications (6) — figure 11

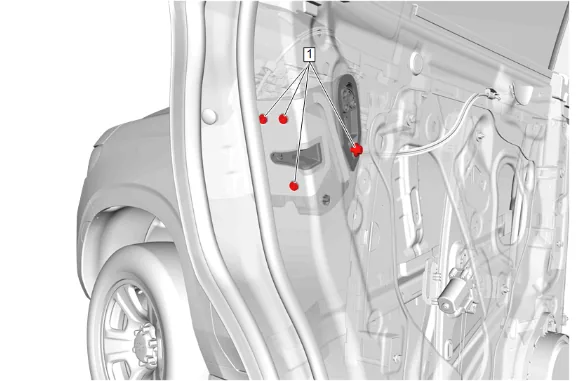

Rear Side Door Latch

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Side Door Latch Bolt [4x]	—	—	9 Y (80 lb in)	Rear Side Door Latch Replacement

Fastener Specifications (6) — figure 12

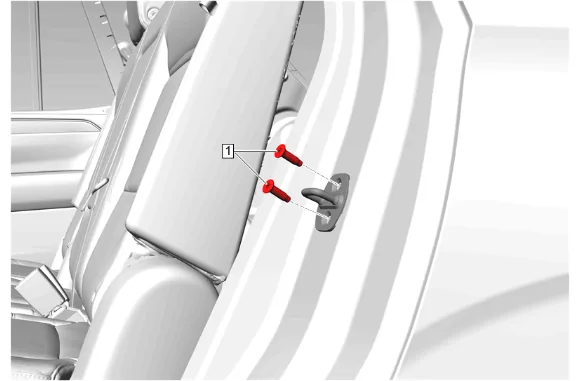

Rear Side Door Latch Striker

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Side Door Latch Striker Bolt [2x]	—	—	22 Y(16 lb ft)	Rear Side Door Latch Striker Replacement

Fastener Specifications (6) — figure 13

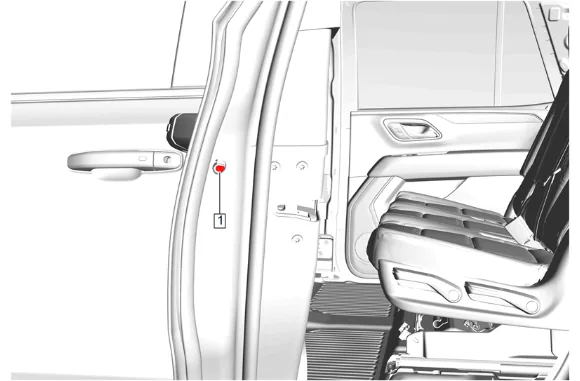

Rear Side Door Lock Cylinder Opening Cover

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Side Door Outside Handle Bracket Rear Bolt	—	—	4.7 Y (42 lb in)	Rear Side Door Lock Cylinder Opening Cover Replacement

Fastener Specifications (6) — figure 14

Rear Side Door Outside Handle Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Side Door Outside Handle Bracket Bolt	—	—	4.7 Y (42 lb in)	Rear Side Door Outside Handle Bracket Replacement
