Rear Shock Absorber and Spring Removal and Installation (ZW7, Z56)
Rear Shock Absorber and Spring Removal and Installation (ZW7, Z56) Removal Procedure
- Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

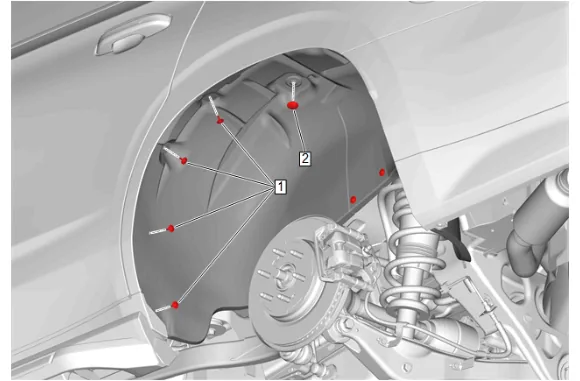

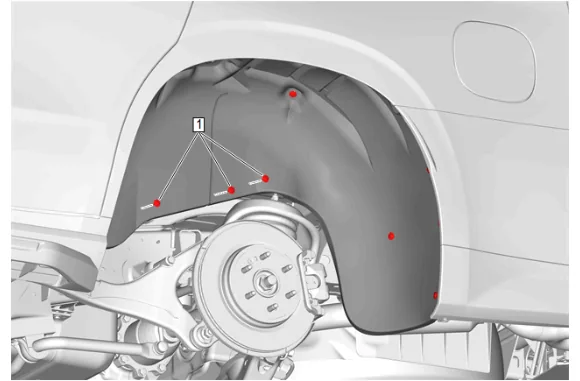

- Rear Wheelhouse Liner Bolt (1) » Remove [4x]
- Rear Wheelhouse Liner Retainer (2) » Remove
- Rear Wheelhouse Liner Bolt (1) » Remove [3x]

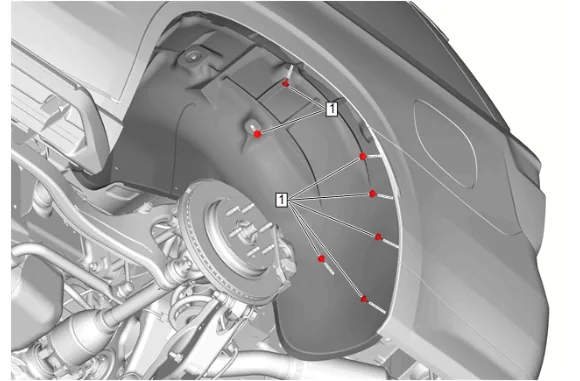

- Rear Wheelhouse Liner Bolt (1) » Remove [7x]

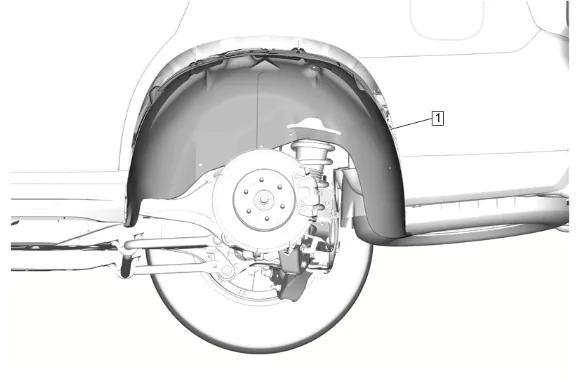

- Rear Wheelhouse Liner (1) » Remove

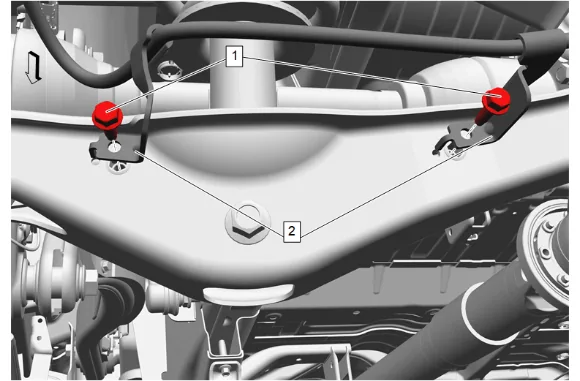

- Rear Brake Hose Bracket Bolt (1) » Remove [2x]
- Rear Brake Hose Bracket (2) » Remove [2x]

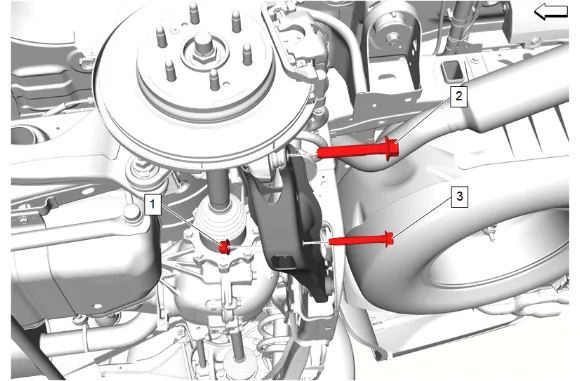

- Rear Suspension Lower Control Arm Outer Bolt (2) » Remove
- Rear Shock Absorber Nut (1) » Remove
- Rear Shock Absorber Bolt (3) » Remove

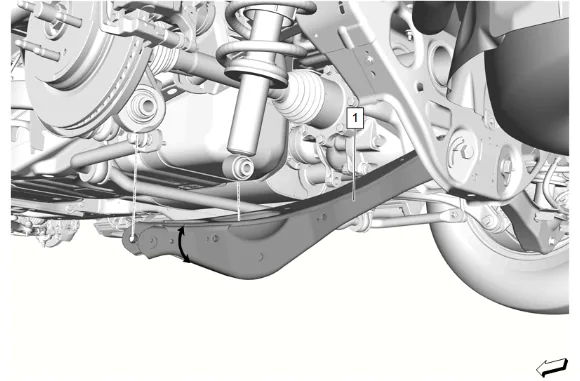

- Rear Suspension Lower Control Arm (1) » Reposition

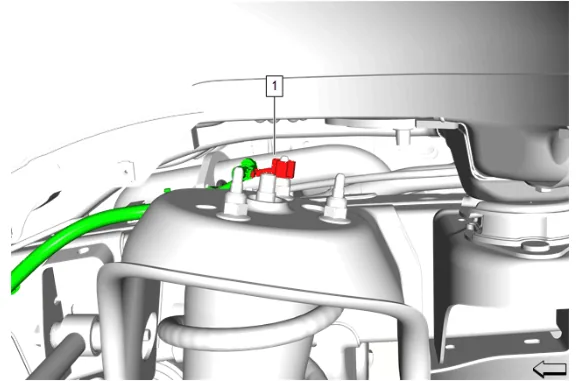

- Chassis Rear Wiring Harness Clip (1) » Remove
- Chassis Rear Wiring Harness » Reposition

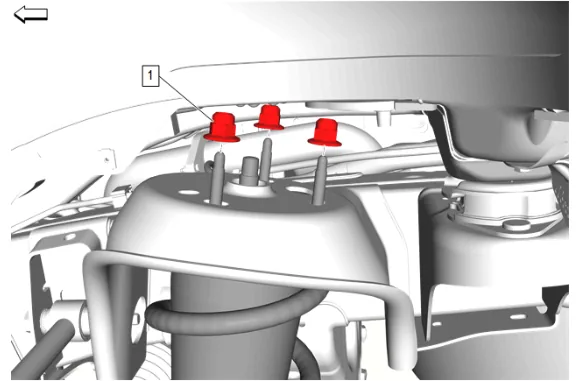

- Rear Shock Absorber Nut (1) » Remove [3x]

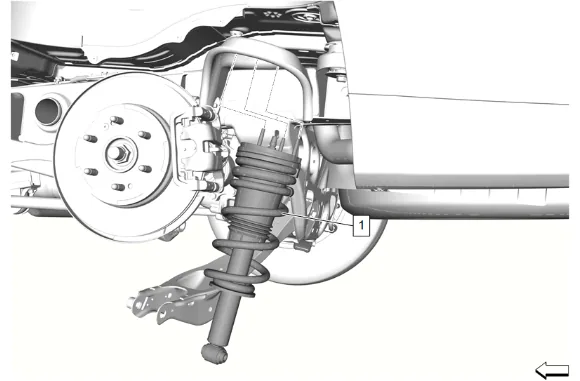

- Rear Shock Absorber (1) » Remove Installation Procedure
-
Apply anti-corrosion wax to the frame shock tower. Anti-Corrosion Treatment and Repair
-
Rear Shock Absorber (1) » Install
-
Rear Shock Absorber Nut (1) » Install and tighten [3x] — Fastener Specifications
-
Chassis Rear Wiring Harness Clip (1) » Install
-
Rear Suspension Lower Control Arm Outer Bolt (2) » Install and tighten — Fastener Specifications
-
Rear Shock Absorber Bolt (3) » Install
-
Rear Shock Absorber Nut (1) » Install and tighten — Fastener Specifications
-
Rear Brake Hose Bracket (2) » Install [2x]
-
Rear Brake Hose Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Rear Wheelhouse Liner (1) » Install
-
Rear Wheelhouse Liner Bolt (1) » Install and tighten [7x] — Fastener Specifications
-
Rear Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications
-
Rear Wheelhouse Liner Retainer (2) » Install
-
Rear Wheelhouse Liner Bolt (1) » Install and tighten [4x] — Fastener Specifications
-
Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
