Heater and Air Conditioning Evaporator Module Cover Replacement (Air Flow Distributor)

Heater and Air Conditioning Evaporator Module Cover Replacement (Air Flow Distributor) Removal Procedure

1. Heater and Air Conditioning Evaporator and Blower Module » Remove — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation

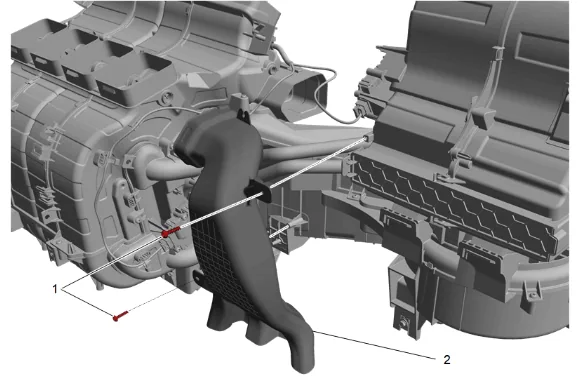

Heater and Air Conditioning Evaporator Module Cover Replacement (Air Flow Distributor) — figure 1

2. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]
3. Floor Front Air Outlet Duct - Right Side (2) » Remove

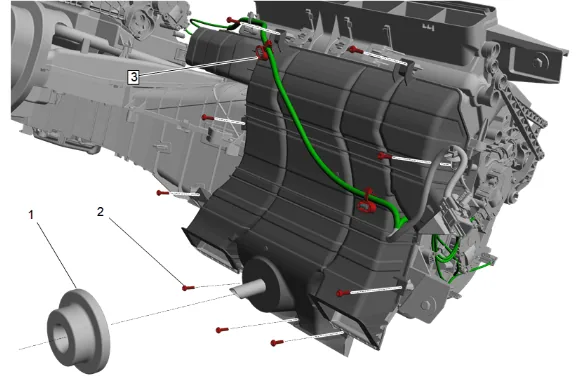

Heater and Air Conditioning Evaporator Module Cover Replacement (Air Flow Distributor) — figure 2

4. Air Conditioning Evaporator Case Drain Tube Seal (1) » Remove
5. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Remove [9x]
6. Wiring Harness Retainer (3) » Remove [2x]

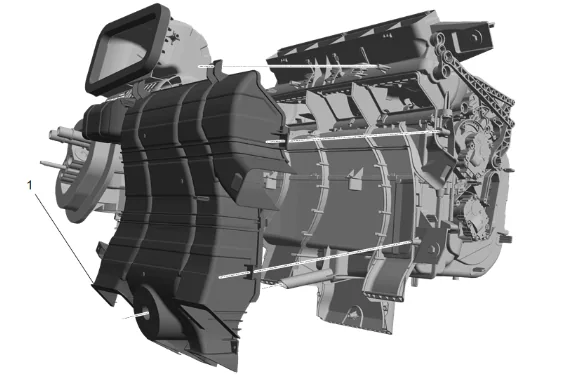

Heater and Air Conditioning Evaporator Module Cover Replacement (Air Flow Distributor) — figure 3

7. Heater And Air Conditioning Evaporator Module Cover (1) » Remove Installation Procedure

8. Heater And Air Conditioning Evaporator Module Cover (1) » Install

9. Wiring Harness Retainer (3) » Install [2x]

Caution

Refer to Fastener Caution.

3. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Install and tighten [9x] — Fastener Specifications

4. Air Conditioning Evaporator Case Drain Tube Seal (1) » Install

5. Floor Front Air Outlet Duct - Right Side (2) » Install

6. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Heater and Air Conditioning Evaporator and Blower Module » Install — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
