Fastener Specifications (2)

Fastener Specifications Table 1: Front Camera and Bracket Table 2: Modules Table 3: Rear Cameras and Camera Washer Nozzle Table 4: Side View Camera Fastener Specifications

Fastener Specifications (2) — figure 1

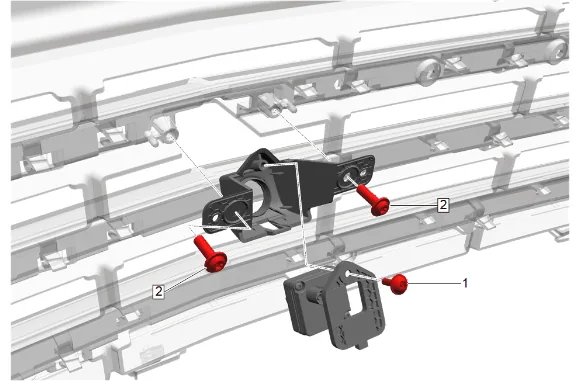

Front Camera and Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front View Camera Bolt	—	—	4 Y (35 lb in)	Front View Driver Information Camera Replacement
2	Front View Camera Bracket Bolt [2x]	—	—	4 Y (35 lb in)	Front View Driver Information Camera Bracket Replacement

Fastener Specifications (2) — figure 2

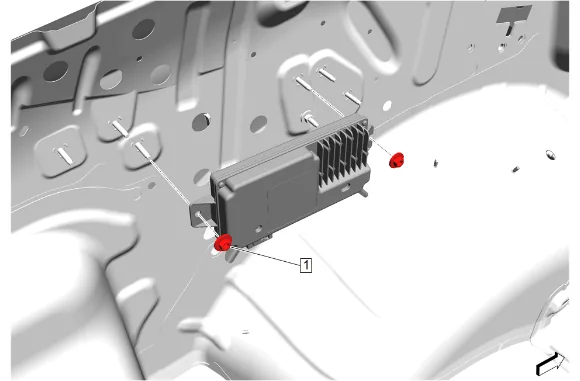

Modules

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Video Processing Module Nut [2x]	—	—	9 Y (80 lb in)	Video Processing Module Replacement

Fastener Specifications (2) — figure 3

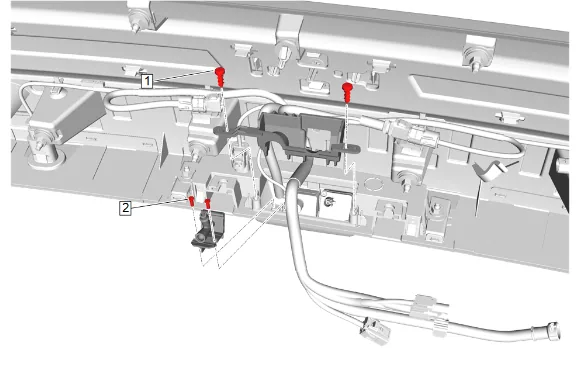

Rear Cameras and Camera Washer Nozzle

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Rearview Driver Information Camera Bracket Bolt [2x]	—	—	0.52 Y (5 lb in)	Rearview Driver Information Camera Replacement
						Video Display Inside Rearview Mirror Camera Replacement
	2	Video Display Inside Rearview Mirror Camera Nozzle Bolt [2x]	—	—	0.2 Y (2 lb in)	Video Display Inside Rearview Mirror Camera Nozzle Replacement

Fastener Specifications (2) — figure 4

Side View Camera

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Outside Rearview Mirror Opening Applique Bolt [2x]	—	—	1.1 Y (10 lb in)	Side View Driver Information Camera Replacement
