Fastener Specifications

Table 1: Front Axle Propeller Shaft Replacement (L84, L87, LM2) Table 2: Propeller Shaft Flange Replacement (2WD) Table 3: Propeller Shaft Flange Replacement (4WD) Table 4: Propeller Shaft Front Slip Yoke Replacement Table 5: Propeller Shaft Replacement (2WD) Table 6: Propeller Shaft Replacement (4WD)

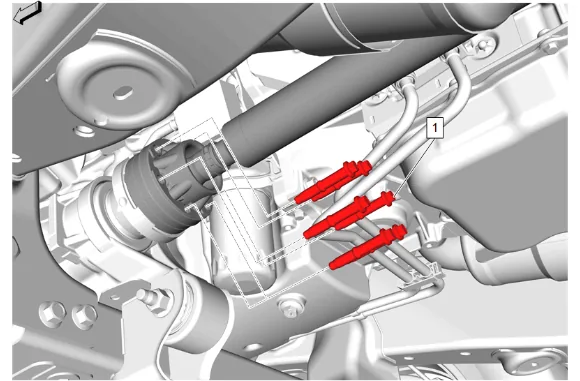

Fastener Specifications — figure 1

Front Axle Propeller Shaft Replacement (L84, L87, LM2)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Axle Propeller Shaft Bolt [6x]	—	Yes	65 Y (48 lb ft)	Front Axle Propeller Shaft Replacement

Fastener Specifications — figure 2

Propeller Shaft Flange Replacement (2WD)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Propeller Shaft Universal Joint Spider Bearing Retaining Ring [4x]	Yes	—	—	Propeller Shaft Flange Replacement
2	Propeller Shaft Universal Joint	Yes	—	—	Propeller Shaft Flange Replacement

Object Id: 5591480 Propeller Shaft Flange Replacement (4WD)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Propeller Shaft Universal Joint Spider Bearing Retaining Ring [4x]	Yes	—	—	Propeller Shaft Flange Replacement
2	Propeller Shaft Universal Joint	Yes	—	—	Propeller Shaft Flange Replacement

Fastener Specifications — figure 3

Propeller Shaft Front Slip Yoke Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Propeller Shaft Universal Joint Spider Bearing Retaining Ring [4x]	Yes	—	—	Propeller Shaft Front Slip Yoke Replacement
2	Propeller Shaft Universal Joint	Yes	—	—	Propeller Shaft Front Slip Yoke Replacement

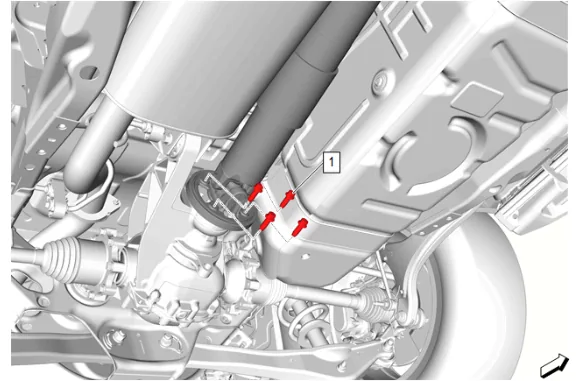

Fastener Specifications — figure 4

Propeller Shaft Replacement (2WD)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Propeller Shaft Bolt [4x]	—	Yes	100 Y (74 lb ft)	Propeller Shaft Flange Replacement

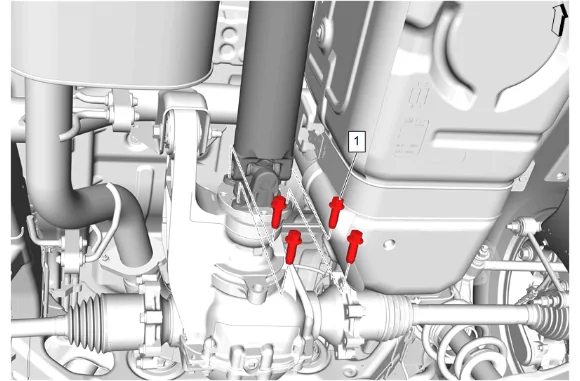

Fastener Specifications — figure 5

Propeller Shaft Replacement (4WD)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Propeller Shaft Bolt [4x]	—	Yes	100 Y (74 lb ft)	Propeller Shaft Flange Replacement
