Fastener Specifications
Table 1: Sunroof Components Table 2: Sunroof Glass Table 3: Sunroof Mounting

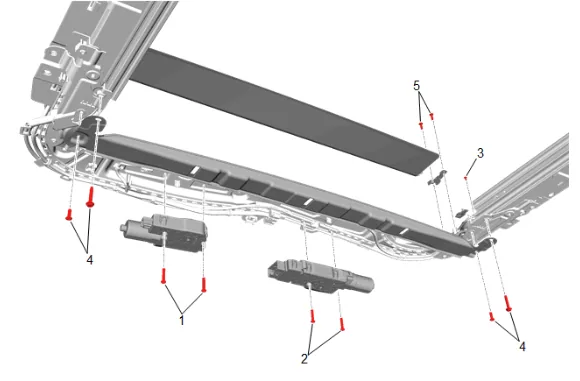

Sunroof Components
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure | ||
|---|---|---|---|---|---|---|---|
| e nent d Metric (English) | |||||||
| 1 | Sunroof Actuator Motor Bolt [2x] | — | Yes | 9 Y (80 lb in) | Sunroof Sunshade Motor Replacement | ||
| 2 | Sunroof Actuator Motor Bolt [2x] | — | Yes | 9 Y (80 lb in) | Sunroof Control Module Replacement | ||
| 3 | Sunshade Bolt | — | — | 1 Y (9 lb in) | Sunroof Sunshade Fabric Guide Replacement | ||
| 4 | Sunshade Support Bolt [4x] | — | — | 3 Y (27 lb in) | Sunroof Housing Bracket Replacement |
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 5 | Sunroof Sunshade Bracket Bolt [2x] | — | — | 3 Y (27 lb in) | Sunroof Sunshade Replacement |

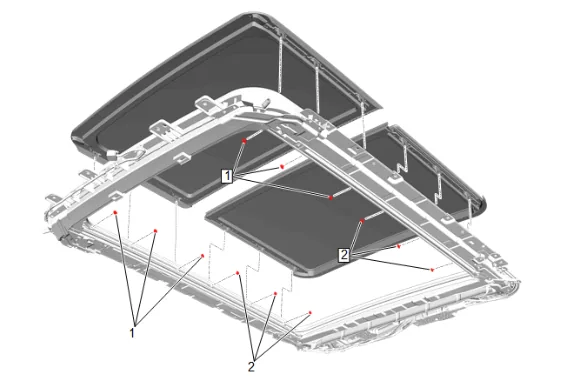

Sunroof Glass
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Sunroof Window Bolt [6x] | — | Yes | 4 Y (35 lb in) | Sunroof Window Replacement |
| 2 | Sunroof Window Bolt [6x] | — | Yes | 4 Y (35 lb in) | Roof Stationary Window Replacement |

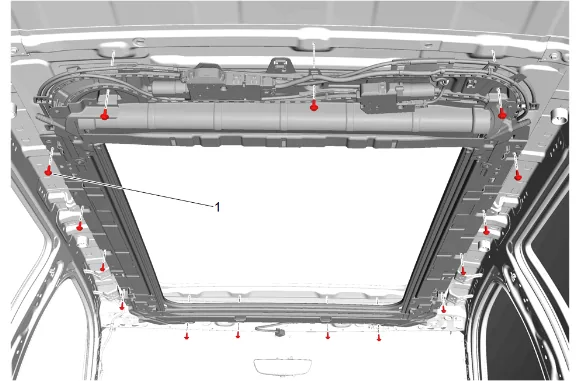

Sunroof Mounting
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Sunroof Module Bolt [15x] | — | — | 9 Y (80 lb in) | Sunroof Housing Replacement |
