Starter Heat Shield Replacement (L84, L87)

Removal Procedure

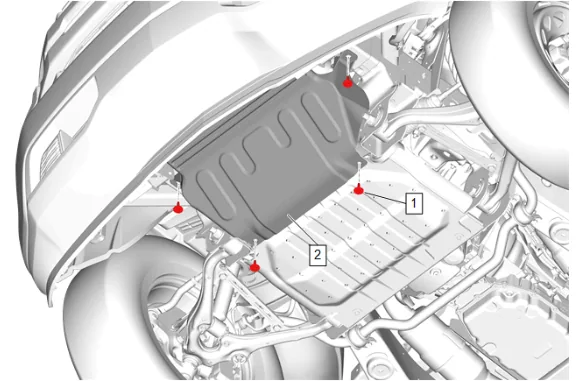

Starter Heat Shield Replacement (L84, L87) — figure 1

1. Underbody Splash Shield (2) » Remove — Underbody Splash Shield Replacement

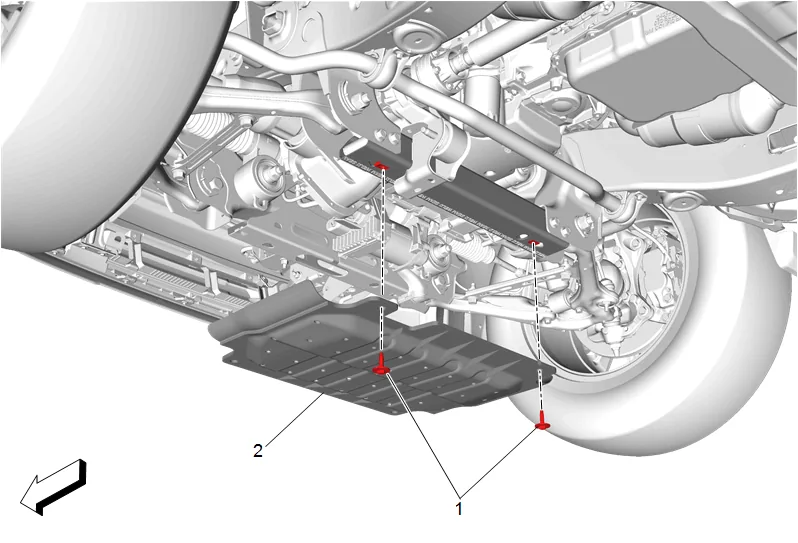

Starter Heat Shield Replacement (L84, L87) — figure 2

2. {with NZZ} Remove the underbody skid shield: 2.1. Underbody Skid Shield Bolt (1) » Remove [2x] 2.2. Underbody Skid Shield (2) » Remove

3. {without NZZ} Remove the steering gear skid shield: 3.1. Steering Gear Skid Shield Bolt (1) » Remove [2x] 3.2. Steering Gear Skid Shield (2) » Remove

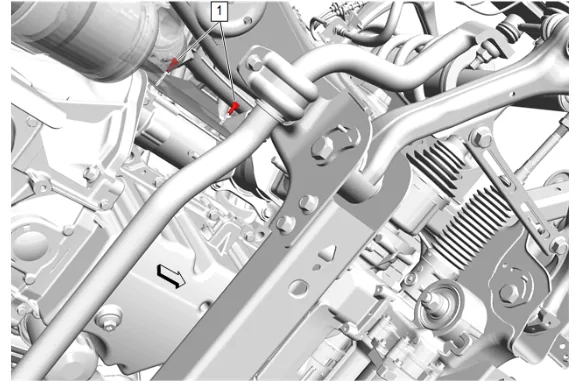

Starter Heat Shield Replacement (L84, L87) — figure 3

4. Starter Heat Shield Bolt (1) » Remove [2x]

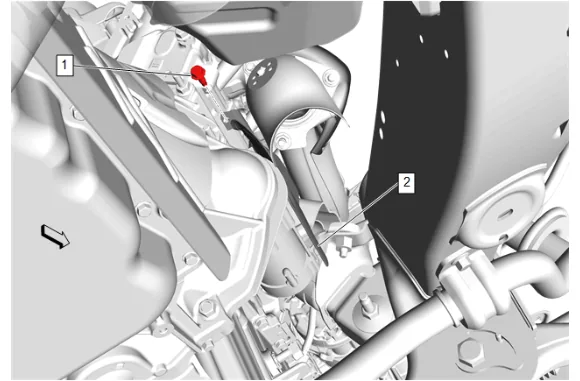

Starter Heat Shield Replacement (L84, L87) — figure 4

Note

Catalytic converter removed for graphic clarity.

5. Starter Heat Shield Bolt (1) » Remove
6. Starter Heat Shield (2) » Remove Installation Procedure

Note

Catalytic converter removed for graphic clarity.

1. Starter Heat Shield (2) » Install

Caution

Refer to Fastener Caution.

2. Starter Heat Shield Bolt (1) » Install and tighten — Fastener Specifications

3. Starter Heat Shield Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. {without NZZ} Install the steering gear skid shield: 4.1. Steering Gear Skid Shield (2) » Install 4.2. Steering Gear Skid Shield Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. {with NZZ} Install the underbody skid shield: 5.1. Underbody Skid Shield (2) » Install 5.2. Underbody Skid Shield Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Underbody Splash Shield (2) » Install — Underbody Splash Shield Replacement
