Video Display Replacement

Removal Procedure

Raise the front seat head restraint (3) to gain access to the front seat head restraint guide bezels (1).
Twist the front seat head restraint guide bezels (1) counter clockwise while lifting the bezels upward onto the head restraint adjuster rods.
Using a suitable pointed or flat bladed tool, push the front seat head restraint guide clip (2) rearward while pulling upward on the front seat head restraint (3).
Front Seat Head Restraint (3) » Remove

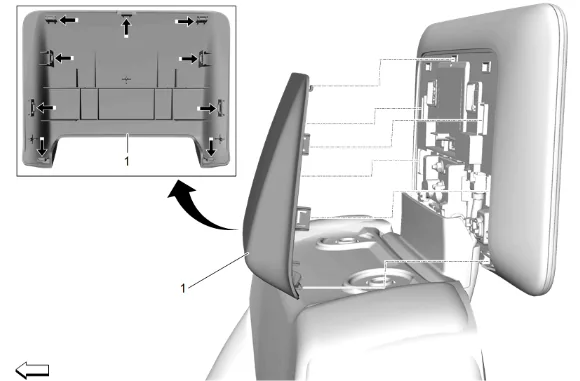

Using a suitable plastic trim tool, release the retaining tabs on the lower portion of the front seat back upper cover (1) then pull outwards and down to release the remaining retaining tabs.
Front Seat Back Upper Cover (1) » Remove

Using a suitable plastic trim tool, release the retaining tabs on the lower portion of the front seat back opening bezel (1) then lift upwards to release the cover.
Front Seat Back Opening Bezel (1) » Remove

Unclip the wiring harness clips. (1)
Push down on the connector position assurance (CPA) (2) to unlock.
Push the electrical connector (3) upwards into the video display to ensure the connector is free to release.

Fully depress the latch on the electrical connector (3) then pull downward on the wiring harness (4) and remove the electrical connector.

Connect the electrical connectors. (3) » Install
Push the connector position assurance (CPA) (2) upwards to lock electrical connector (3) .
Secure the clip (1) to secure the wiring harness (4).
Front Seat Back Upper Cover - Lower (2) » Install

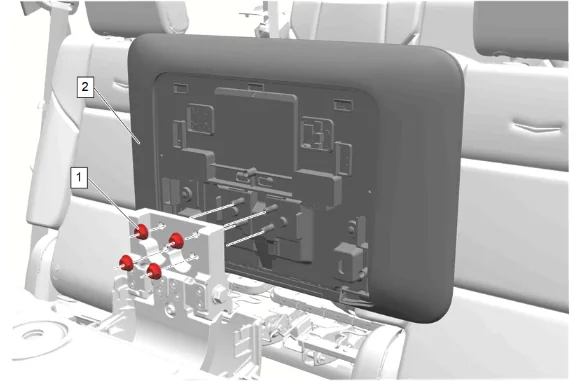

Front Seat Bolt (1) » Install and tighten — Fastener Specifications
Front Seat Back Opening Bezel (1) » Install
Front Seat Back Upper Cover (1) » Install
Front Seat Head Restraint Guide Bezel (1) » Install [2x]
Front Seat Head Restraint (3) » Install
