Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front

Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front Special Tools DT-44737 Shift Rail Bearing Remover GE-02619-A Slide Hammer w/Adapter GE-8092 Driver Handle Equivalent regional tools: Special Tools Removal Procedure

Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front — figure 1

1. Using DT-44737 Shift Rail Bearing Remover (2) and GE-2619-A Slide Hammer w/Adapter (3) remove the transfer case shift cam shaft bearing (1). Installation Procedure

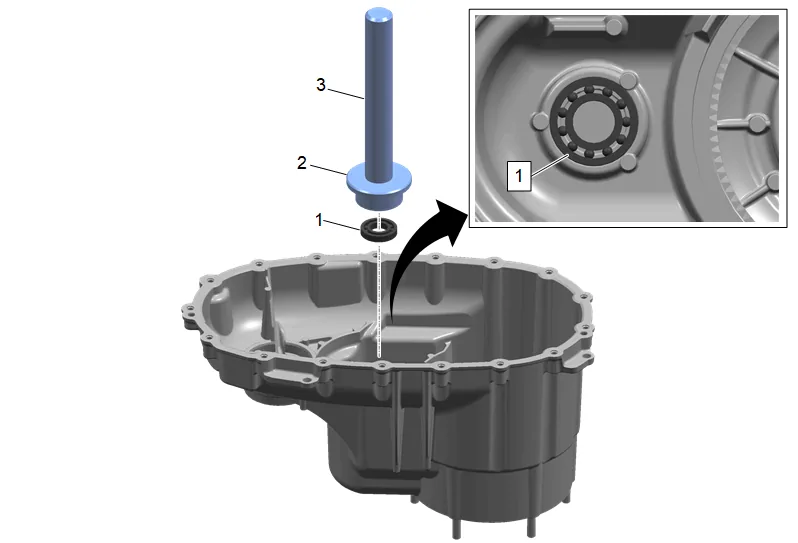

Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front — figure 2

Note

Ensure the printing on the bearing is facing upward.

1. Press the transfer case shift cam shaft bearing (1) with a suitable adapter (2) using the J-8092 Driver Handle (3) until the transfer case shift cam shaft bearing (1) bottoms on the front case half.
