Air Conditioning Condenser Replacement (L84_L87)

Air Conditioning Condenser Replacement (L84/L87) Removal Procedure

Air Conditioning Condenser Replacement (L84_L87) — figure 1
Air Conditioning Condenser Replacement (L84_L87) — figure 1

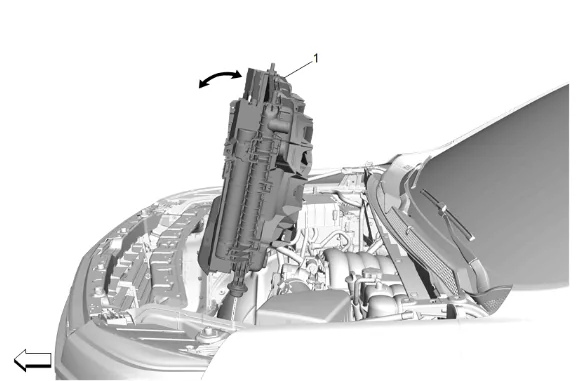

  1. Remove the charge air cooler, condenser, fan motor, and radiator assembly (1). Charge Air Cooler, Condenser, Fan Motor, and Radiator Assembly Removal and Installation
Air Conditioning Condenser Replacement (L84_L87) — figure 2
Air Conditioning Condenser Replacement (L84_L87) — figure 2
  1. Radiator Air Side Baffle (1) » Remove [2x]
Air Conditioning Condenser Replacement (L84_L87) — figure 3
Air Conditioning Condenser Replacement (L84_L87) — figure 3
  1. Remove the engine radiator (1) from the air conditioning condenser assembly (2).
Air Conditioning Condenser Replacement (L84_L87) — figure 4
Air Conditioning Condenser Replacement (L84_L87) — figure 4

  1. Transmission Fluid Auxiliary Cooler Bracket Bolt (1) » Remove

  2. Transmission Fluid Auxiliary Cooler (2) » Remove Installation Procedure

  3. Transmission Fluid Auxiliary Cooler (2) » Install

  1. Transmission Fluid Auxiliary Cooler Bracket Bolt (1) » Install and tighten — Fastener Specifications

  2. Install the engine radiator (1) to the air conditioning condenser assembly (2).

  3. Radiator Air Side Baffle (1) » Install [2x]

  4. Install the charge air cooler, condenser, fan motor, and radiator assembly (1). Charge Air Cooler, Condenser, Fan Motor, and Radiator Assembly Removal and Installation
