Rear Seat Riser Inner Finish Cover Replacement - Inboard (60 Percent)

Rear Seat Riser Inner Finish Cover Replacement - Inboard (60 Percent) Removal Procedure

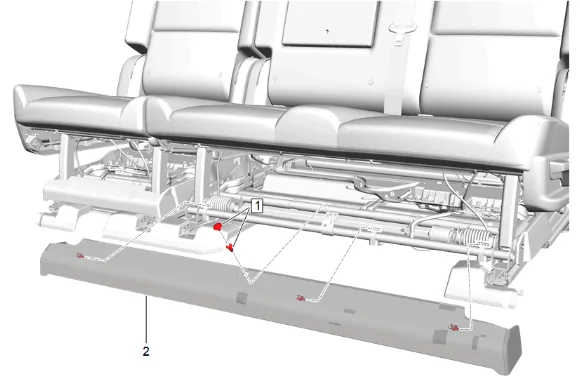

Rear Seat Riser Inner Finish Cover Replacement - Inboard (60 Percent) — figure 1

1. Rear Seat Riser Finish Cover Retainer (1) » Remove
2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Rear Seat Riser Finish Cover (2) » Remove

Rear Seat Riser Inner Finish Cover Replacement - Inboard (60 Percent) — figure 2

Note

Left side shown, right side similar.

4. Place the opposite rear seat in the fold and tumble position.
5. Using a flat-bladed plastic trim tool, release the retaining clip.
6. Rear Seat Riser Finish Cover (1) » Remove

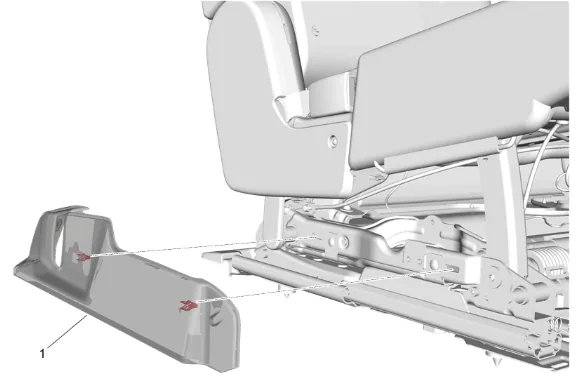

Rear Seat Riser Inner Finish Cover Replacement - Inboard (60 Percent) — figure 3

7. Using a flat-bladed plastic trim tool, release the retaining clips.

8. Using a suitable plastic trim tool, release the retaining tabs.

9. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove Installation Procedure

10. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

Note

Left side shown, right side similar.

2. Rear Seat Riser Finish Cover (1) » Install

3. Return the opposite rear seat to the original position.

4. Rear Seat Riser Finish Cover (2) » Install

5. Rear Seat Riser Finish Cover Retainer (1) » Install
