Tahoe / Yukon Service Manual

Rear Side Door Weatherstrip Replacement - Body Side

Removal Procedure

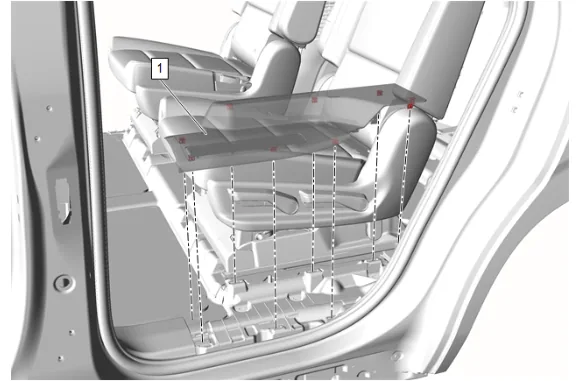

Rear Side Door Weatherstrip Replacement - Body Side — figure 1
Rear Side Door Weatherstrip Replacement - Body Side — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Pull upward from both sides of the rear side door sill garnish molding (1) to disengage retaining clips front to rear.
  3. Rear Side Door Sill Garnish Molding (1) » Remove

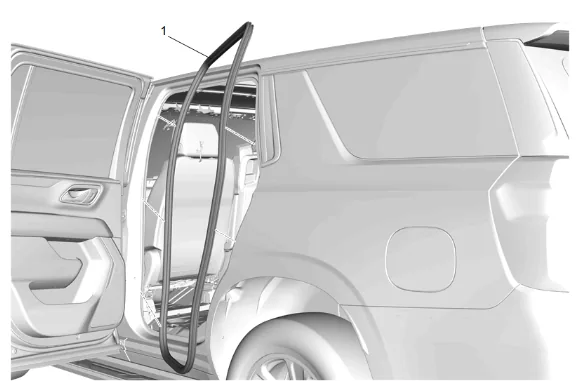

Rear Side Door Weatherstrip Replacement - Body Side — figure 2
Rear Side Door Weatherstrip Replacement - Body Side — figure 2

  1. Pull up and out to remove the rear side door weatherstrip (1) from the pinch weld flange.

  2. Rear Side Door Weatherstrip - Body Side (1) » Remove Installation Procedure

  3. Starting from the top to bottom, install the rear side door weatherstrip (1) by pushing the weatherstrip down on the pinch weld flange until seated.

  4. Rear Side Door Weatherstrip - Body Side (1) » Install

  5. Rear Side Door Sill Garnish Molding (1) » Install
