Transmission Fluid Pump Removal

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4483659 Single Use Fasteners and Components Automatic Transmission Fluid Pump Seal — Pump

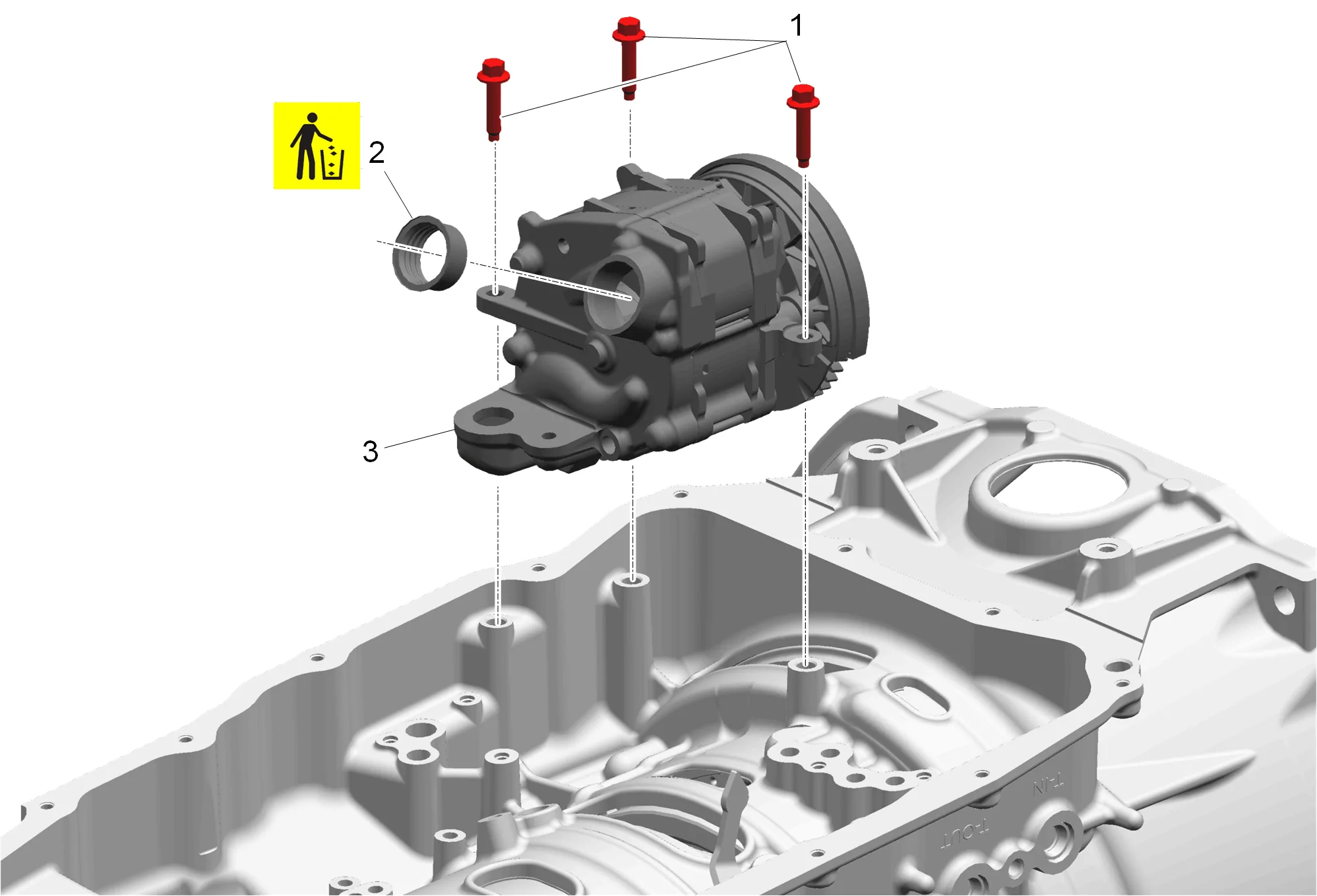

Transmission Fluid Pump Removal — figure 1

1. Automatic Transmission Fluid Pump Bolt (1) » Remove [3x]
2. Automatic Transmission Fluid Pump Seal — Pump (2) » Remove and DISCARD
3. Automatic Transmission Fluid Pump (3) » Remove
