Fastener Specifications (3)
Fastener Specifications Table 1: Front Wheel Drive Half Shaft Replacement Table 2: Front Wheel Drive Half Shaft Replacement Table 3: Rear Wheel Drive Shaft Replacement (G86/G96) Table 4: Rear Wheel Drive Shaft Replacement Table 5: Rear Wheel Drive Shaft Replacement

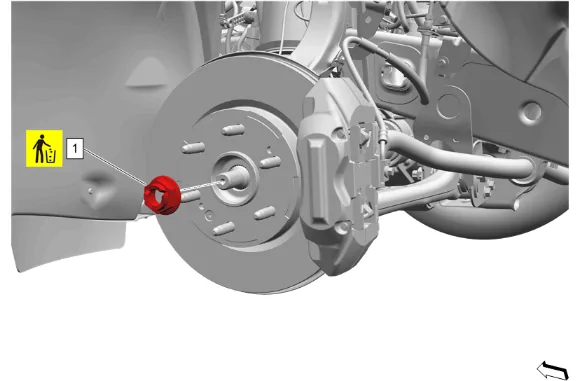

Front Wheel Drive Half Shaft Replacement
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Front Wheel Drive Shaft Nut | Yes | — | First Pass: 180 Y (133 lb ft) Second Pass: Loosen 45 degrees Final Pass: 270 Y (199 lb ft) | Front Wheel Drive Half Shaft Replacement - Left Side |
| Front Wheel Drive Half Shaft Replacement - Right Side |
Front Wheel Drive Half Shaft Replacement
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Front Wheel Drive Shaft Retaining Ring | Yes | — | — | Front Wheel Drive Half Shaft Replacement - Left Side |
| Front Wheel Drive Half Shaft Replacement - Right Side | |||||
| 2 | Front Wheel Drive Shaft Seal | Yes | — | — | Front Wheel Drive Half Shaft Replacement - Left Side |
| Front Wheel Drive Half Shaft Replacement - Right Side |

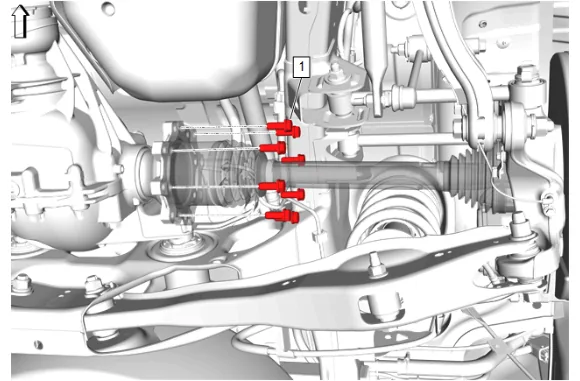

Rear Wheel Drive Shaft Replacement (G86/G96)
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Rear Wheel Drive Shaft Bolt [8x] | — | Yes | 100 Y (74 lb ft) | Rear Wheel Drive Shaft Replacement - Left Side |
| Rear Wheel Drive Shaft Replacement - Right Side |
Rear Wheel Drive Shaft Replacement
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Rear Wheel Drive Shaft Nut | Yes | — | First Pass: 150 Y (111 lb ft) Second Pass: Loosen 45 degrees Final Pass: 290 Y (214 lb ft) | Rear Wheel Drive Shaft Replacement - Left Side |
| Rear Wheel Drive Shaft Replacement - Right Side |
Rear Wheel Drive Shaft Replacement
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Rear Wheel Drive Shaft Washer | Yes | — | — | Rear Wheel Drive Shaft Replacement - Left Side |
| Rear Wheel Drive Shaft Replacement - Right Side |
