Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD)

Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD) Special Tools EN-45059-A Angle Meter Equivalent regional tools: Special Tools Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

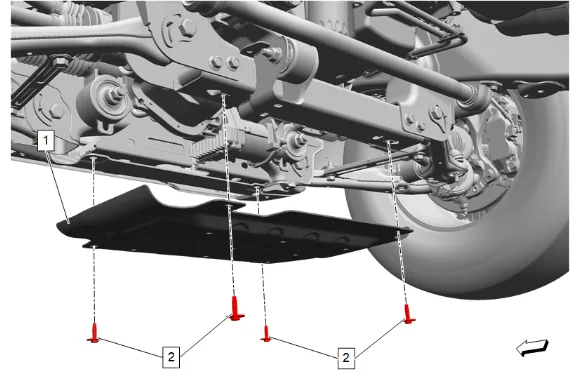

Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD) — figure 1

2. Underbody Skid Shield Bolt (2) » Remove [4x]
3. Underbody Skid Shield (1) » Remove

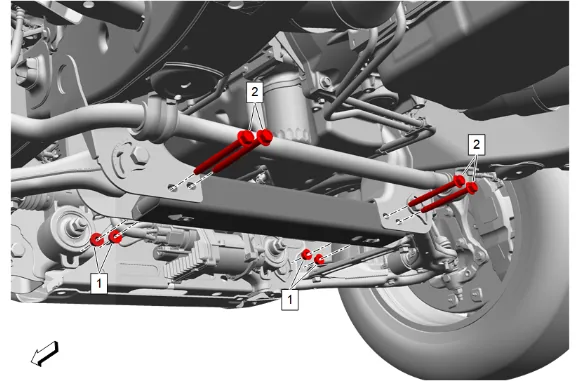

Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD) — figure 2

4. Drivetrain and Front Suspension Frame Reinforcement Nut (1) » Remove [4x]
5. Drivetrain and Front Suspension Frame Reinforcement Bolt (2) » Remove [4x]

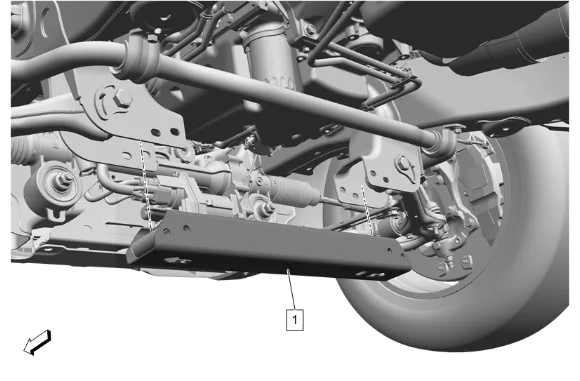

Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD) — figure 3

6. Drivetrain and Front Suspension Frame Front Crossmember (1) » Remove Installation Procedure

7. Drivetrain and Front Suspension Frame Front Crossmember (1) » Install

8. Drivetrain and Front Suspension Frame Reinforcement Bolt (2) » Install [4x]

9. Drivetrain and Front Suspension Frame Reinforcement Nut (1) » Install [4x]

Caution

Fastener Caution

4. Using the EN-45059–A Angle Meter, tighten the 4 drivetrain and front suspension frame reinforcement nuts (1). Fastener Specifications

5. Underbody Skid Shield (1) » Install

6. Underbody Skid Shield Bolt (2) » Install and tighten [4x] — Fastener Specifications

7. Lower the vehicle.
