Rear Side Door Window Frame Rear Applique Replacement

Rear Side Door Window Frame Rear Applique Replacement Single Use Fasteners and Components Rear Side Door Window Belt Reveal Molding Removal Procedure

Rear Side Door Window Frame Rear Applique Replacement — figure 1
Rear Side Door Window Frame Rear Applique Replacement — figure 1
  1. Reposition the rear side door weatherstrip to access the rear side door window belt reveal molding bolts (1).
  2. Rear Side Door Window Belt Reveal Molding Bolt (1) » Remove [2x]
Rear Side Door Window Frame Rear Applique Replacement — figure 2
Rear Side Door Window Frame Rear Applique Replacement — figure 2
  1. Using the appropriate tool, lift up the rear side door window belt reveal molding (1) to remove from the door flange.
  2. Rear Side Door Window Belt Reveal Molding (1) » Remove and DISCARD
Rear Side Door Window Frame Rear Applique Replacement — figure 3
Rear Side Door Window Frame Rear Applique Replacement — figure 3

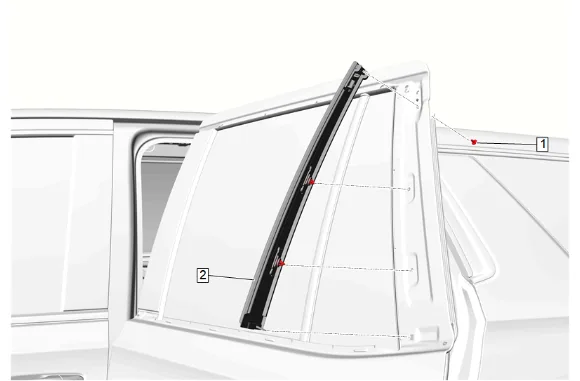

  1. Rear Side Door Window Frame Rear Applique Bolt (1) » Remove

  2. Using the appropriate tool, release the rear side door window frame rear applique  (2) from the door panel.

  3. Rear Side Door Window Frame Rear Applique (2) » Remove Installation Procedure

  4. Rear Side Door Window Frame Rear Applique (2) » Install

  1. Rear Side Door Window Frame Rear Applique Bolt (1) » Install and tighten — Fastener Specifications

  2. Rear Side Door Window Belt Reveal Molding (1) » Install NEW

  3. Rear Side Door Window Belt Reveal Molding Bolt (1) » Install and tighten [2x] — Fastener Specifications

  4. Reposition the rear side door weatherstrip.

  5. Ensure the window system operates properly.
