Mobile Telephone Microphone Replacement - Roof Console

Removal Procedure

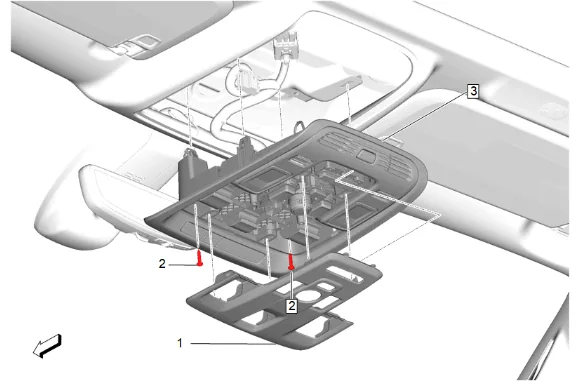

Mobile Telephone Microphone Replacement - Roof Console — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Roof Console Opening Trim Plate (1) » Remove
3. Roof Console Bolt (2) » Remove [2x]
4. Roof Console (3) » Remove
5. Disconnect the electrical connectors.

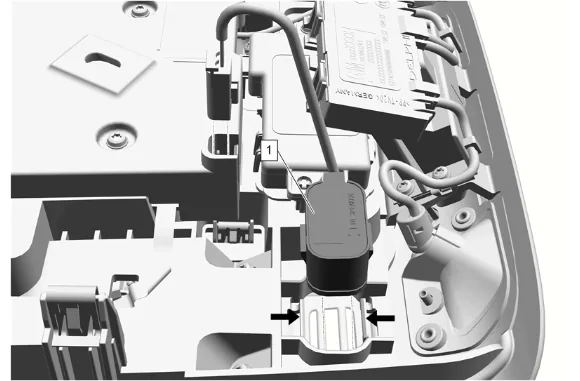

Mobile Telephone Microphone Replacement - Roof Console — figure 2

6. Disconnect the electrical connector.

7. Release the retaining tabs.

8. Mobile Telephone Microphone (1) » Remove Installation Procedure

9. Mobile Telephone Microphone (1) » Install

10. Secure the retaining tabs.

11. Connect the electrical connector.

12. Connect the electrical connectors.

13. Roof Console (3) » Install

Caution

Refer to Fastener Caution.

6. Roof Console Bolt (2) » Install and tighten [2x] — Fastener Specifications
7. Roof Console Opening Trim Plate (1) » Install
