Front Floor Console Compartment Replacement

Removal Procedure

Front Floor Console Compartment Replacement — figure 1

1. Front Floor Console Rear Cup Holder Liner (1) » Remove
2. Front Floor Console Cup Holder Bolt (2) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Rear Cup Holder (3) » Remove

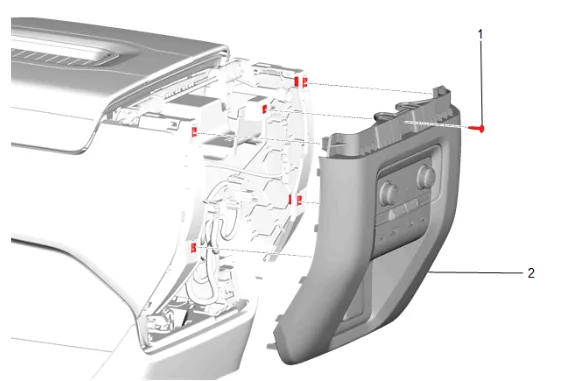

Front Floor Console Compartment Replacement — figure 2

5. Front Floor Console Rear Cover Bolt (1) » Remove
6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Front Floor Console Rear Trim Panel (2) » Reposition

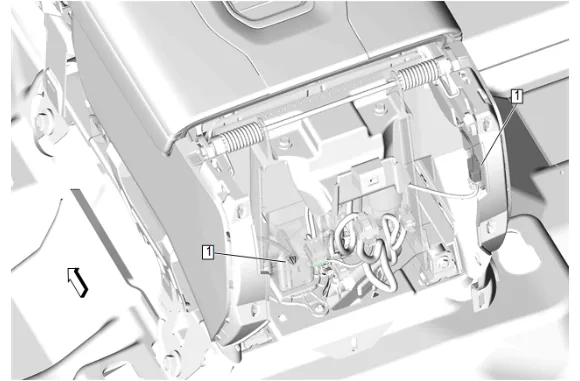

Front Floor Console Compartment Replacement — figure 3

Note

Some components not shown for graphic clarity.

8. Disconnect the front floor console bin lamp connector (1).

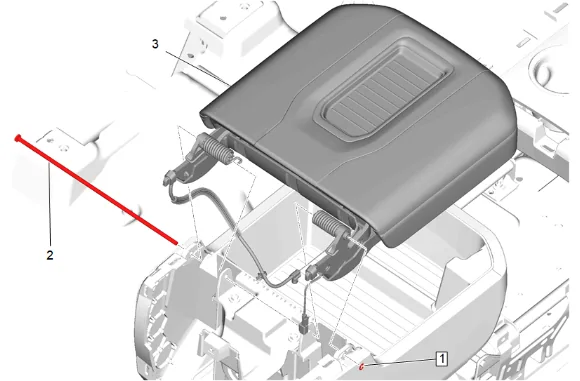

Front Floor Console Compartment Replacement — figure 4

Note

Use a suitable tool.

9. Front Floor Console Armrest Hinge Clip (1) » Remove

Warning

The armrest hinge springs are under pressure. Remove the pivot pin carefully in order to avoid bodily injury.

10. Front Floor Console Armrest Pivot Pin (2) » Remove
11. Front Floor Console Armrest (3) » Reposition

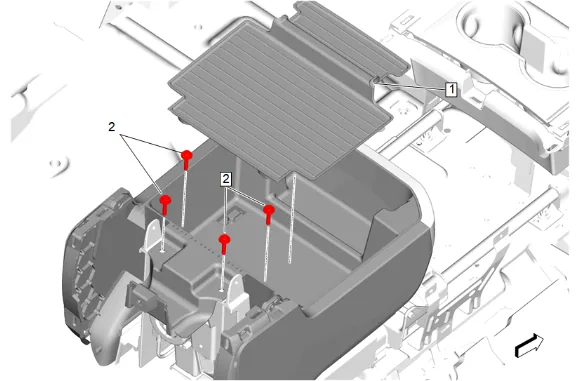

Front Floor Console Compartment Replacement — figure 5

Note

Some components not shown for graphic clarity.

12. Front Floor Console Compartment Liner (1) » Remove
13. Front Floor Console Bracket Bolt (2) » Remove [4x]

Front Floor Console Compartment Replacement — figure 6

14. Front Floor Console Compartment (1) » Remove Installation Procedure

15. Front Floor Console Compartment (1) » Install

Note

Some components not shown for graphic clarity.

Caution

Refer to Fastener Caution.

2. Front Floor Console Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

3. Front Floor Console Compartment Liner (1) » Install

4. Front Floor Console Armrest (3) » Install

5. Front Floor Console Armrest Pivot Pin (2) » Install

6. Front Floor Console Armrest Hinge Clip (1) » Install

Note

Some components not shown for graphic clarity.

7. Connect the front floor console bin lamp connector (1).

8. Front Floor Console Rear Trim Panel (2) » Install

9. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

10. Front Floor Console Rear Cup Holder (3) » Install

11. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

12. Front Floor Console Rear Cup Holder Liner (1) » Install
