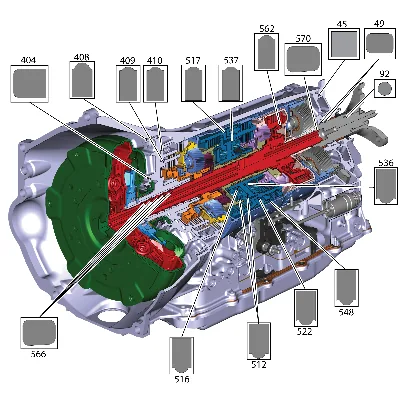

Seal Locations (1 of 3)

(45) Automatic Transmission Case Extension Seal (49) Output Shaft Seal (92) Output Shaft Seal — Model Dependent (404) Torque Converter Fluid Seal (408) Stator Shaft Support Seal (409) 1-2-3-4-5-6-Reverse Clutch Piston Seal - Inner (410) 1-2-3-4-5-6-Reverse Clutch Piston Seal - Outer (512) 2-3-4-5-7-9-10 Clutch Piston Seal - Outer (516) 2-3-4-5-7-9-10 Clutch Piston Seal - Inner (517) 4-5-6-7-8-9-10-Reverse Clutch Piston Seal - Outer (522) 4-5-6-7-8-9-10-Reverse Clutch Piston Seal - Inner (536) 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Inner (537) 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Outer (548) 4-5-6-7-8-9-10-Reverse Clutch Piston Dam Seal - Outer (562) 1-3-5-6-7-8-9 Clutch Piston Dam Seal - Outer (566) Turbine Shaft Seal (570) Turbine Shaft Seal
