Fuel Tank Heat Shield Replacement (Short Wheelbase)

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5537623

Warning

Refer to Diesel/Gasoline Vapors Warning.

Warning

Refer to Safety Glasses Warning. Removal Procedure

1. Relieve the fuel system pressure. Fuel Pressure Relief
2. Drain the fuel tank. Fuel Tank Draining
3. Raise and support the vehicle. Lifting and Jacking the Vehicle.

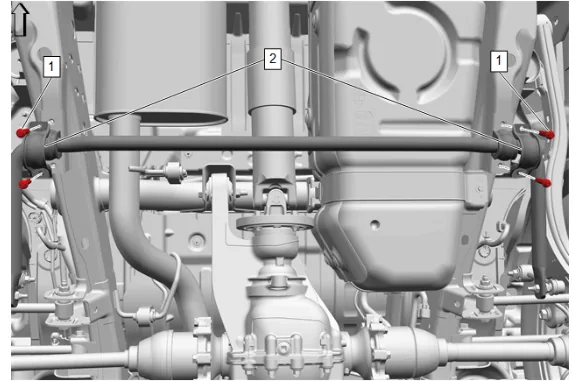

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 1

4. Rear Stabilizer Shaft Insulator Clamp Bolt (1) » Remove [4x]
5. Remove both rear stabilizer shaft clamp  (2) from the frame and let the stabilizer shaft hang.

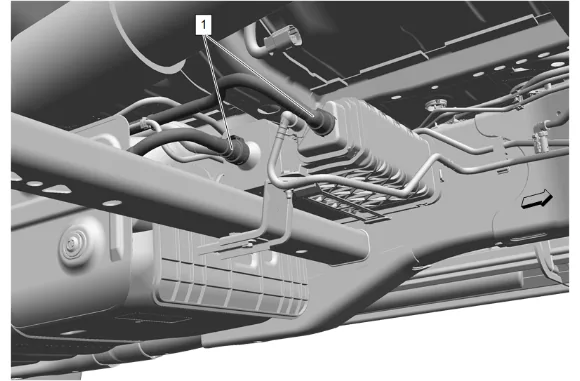

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 2

6. Evaporative Emission Hose (1) » Disconnect [2x] — Plastic Collar Quick Connect Fitting Service

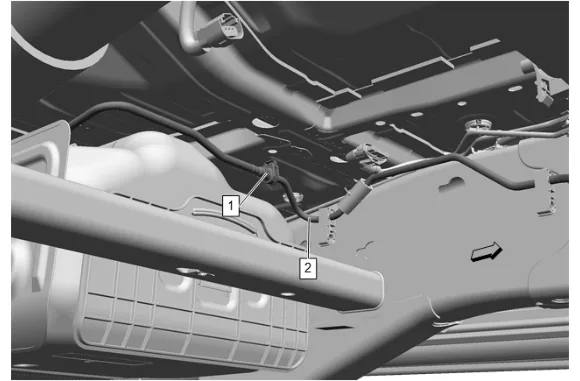

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 3

Note

Components removed for clairity.

7. Fuel Feed Hose (1) @ Fuel Feed Pipe (2) » Disconnect — Plastic Collar Quick Connect Fitting Service

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 4

8. Fuel Tank Filler Hose Clamp (1) » Loosen
9. Fuel Tank Filler Hose (2) » Remove
10. Evaporative Emission Hose (3) » Disconnect — Plastic Collar Quick Connect Fitting Service

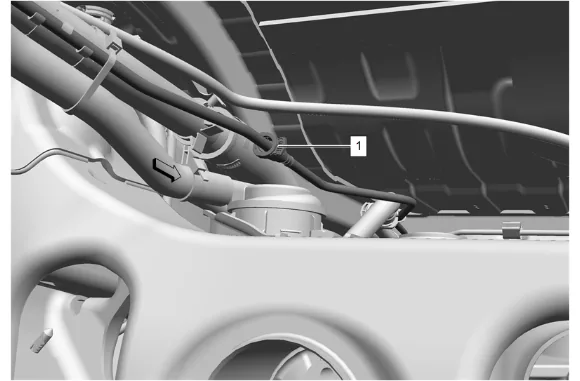

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 5

11. Fuel Tank Filler Vent Hose (1) » Disconnect — Plastic Collar Quick Connect Fitting Service

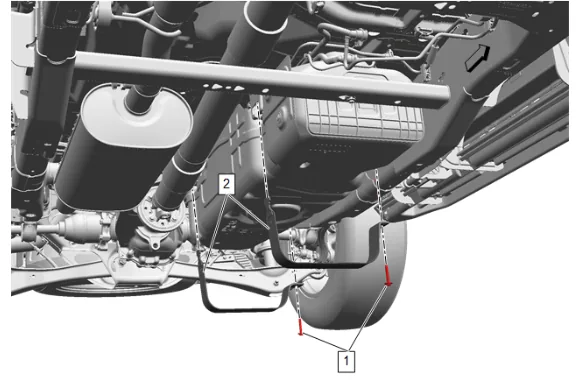

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 6

12. Place a suitable adjustable jack under the fuel tank.
13. Strap fuel tank to jack.
14. Fuel Tank Strap Bolt (1) » Remove [2x]
15. Fuel Tank Strap (2) » Remove [2x]

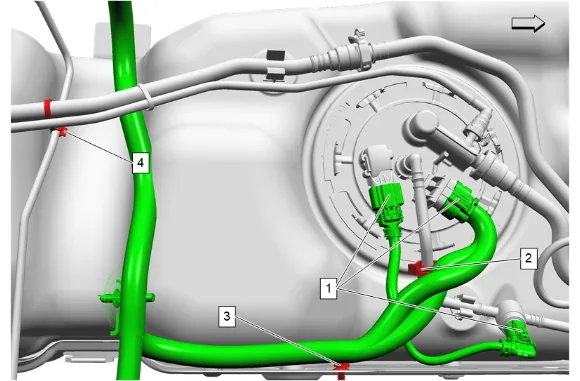

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 7

16. Lower the fuel tank, allowing clearance to access connections at the top of the tank.
17. Electrical Connector (1) » Disconnect [3x]
18. Fuel Feed Hose Clip (2) » Disengage
19. Wiring Harness Retainer (3) » Disengage
20. Retainer (4) » Unclip

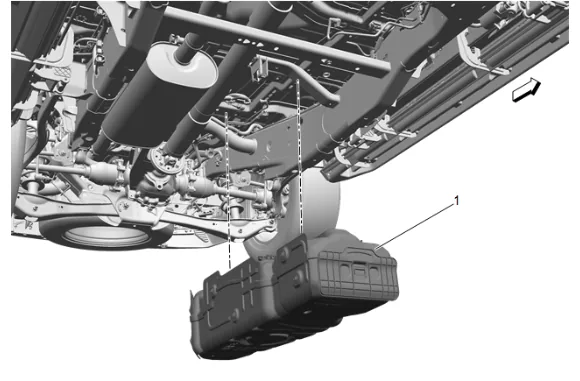

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 8

21. Fuel Tank (1) » Remove

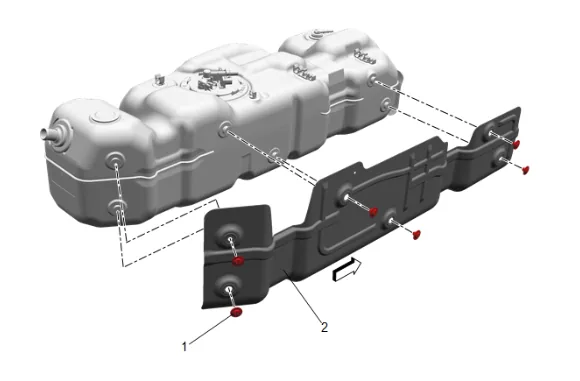

Fuel Tank Heat Shield Replacement (Short Wheelbase) — figure 9

22. Fuel Tank Shield Retainer (1) » Remove [6x]

23. Remove fuel tank strap from jack.

24. Fuel Tank Heat Shield (2) » Remove Installation Procedure

25. Fuel Tank Heat Shield (2) » Install

26. Fuel Tank Shield Retainer (1) » Install [6x]

27. Place a suitable adjustable jack under the fuel tank.

28. Strap fuel tank to jack.

29. Raise the fuel tank  (1), allowing clearance to access connections at the top of the tank.

30. Retainer (4) » Clip

31. Wiring Harness Retainer (3) » Engage

32. Fuel Feed Hose Clip (2) » Engage

33. Electrical Connector (1) » Connect [3x]

34. Raise the tank to the installed position.

35. Fuel Tank Strap (2) » Install [2x]

Caution

Refer to Fastener Caution.

12. Fuel Tank Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications

13. Remove fuel tank jack.

14. Fuel Tank Filler Vent Hose (1) » Connect — Plastic Collar Quick Connect Fitting Service

15. Evaporative Emission Hose (3) » Connect — Plastic Collar Quick Connect Fitting Service

16. Fuel Tank Filler Hose (2) » Install

17. Fuel Tank Filler Hose Clamp (1) » Tighten — Fastener Specifications

18. Fuel Feed Hose (1) @ Fuel Feed Pipe (2) » Connect — Plastic Collar Quick Connect Fitting Service

19. Evaporative Emission Hose (1) » Connect [2x] — Plastic Collar Quick Connect Fitting Service

20. Raise rear stabilizer shaft into installed position.

21. Rear Stabilizer Shaft Clamp (2) » Install [2x]

22. Rear Stabilizer Shaft Insulator Clamp Bolt (1) » Install and tighten [4x] — Fastener Specifications

23. Lower the vehicle.

24. Refill the fuel tank.

25. Inspect for fuel leaks.
