Instrument Panel Lower Trim Panel Outer Filler Replacement - Right Side

Instrument Panel Lower Trim Panel Outer Filler Replacement - Right Side Removal Procedure

Instrument Panel Lower Trim Panel Outer Filler Replacement - Right Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

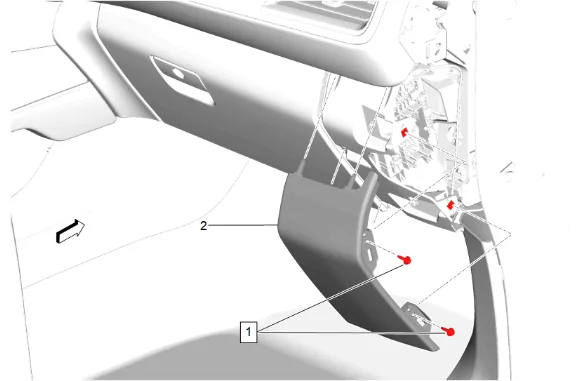

Instrument Panel Lower Trim Panel Outer Filler Replacement - Right Side — figure 2

3. Instrument Panel Compartment Bolt (1) » Remove [2x]

4. Using a flat-bladed plastic trim tool, release the retaining clips.

5. Instrument Panel Lower Trim Panel Outer Filler (2) » Remove Installation Procedure

6. Instrument Panel Lower Trim Panel Outer Filler (2) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Instrument Panel Fuse Block Access Hole Cover (1) » Install
