Radio Front Speaker Grille Replacement - Left Side

Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

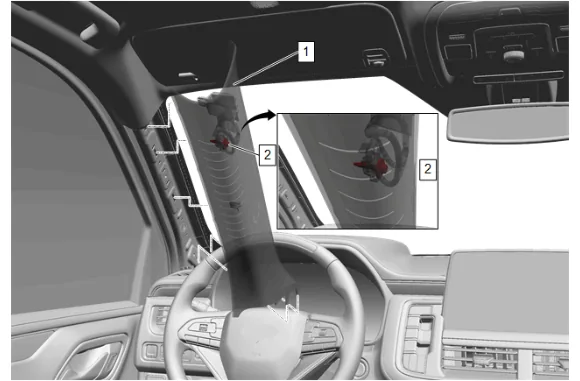

Radio Front Speaker Grille Replacement - Left Side — figure 1

2. Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.
3. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
4. Windshield Garnish Molding Bolt (2) » Remove
5. Windshield Garnish Molding (1) » Remove

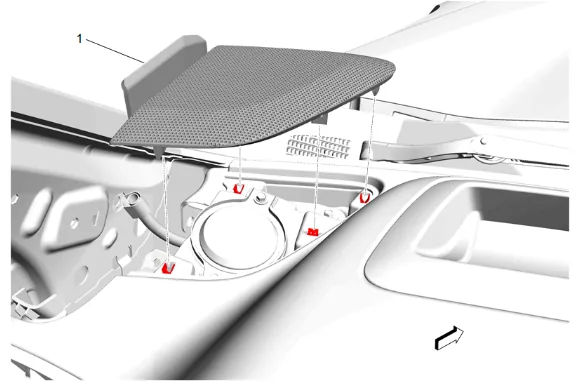

Radio Front Speaker Grille Replacement - Left Side — figure 2

6. Using a flat-bladed plastic trim tool, release the retaining clips.

7. Radio Front Speaker Grille (1) » Remove Installation Procedure

8. Radio Front Speaker Grille (1) » Install

Caution

Refer to Fastener Caution.

2. Windshield Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications
3. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
4. Windshield Garnish Molding (1) » Install
5. Enable the SIR System. SIR Disabling and Enabling
