Front Side Door Inside Handle Illumination Lamp Replacement

Front Side Door Inside Handle Illumination Lamp Replacement Removal Procedure

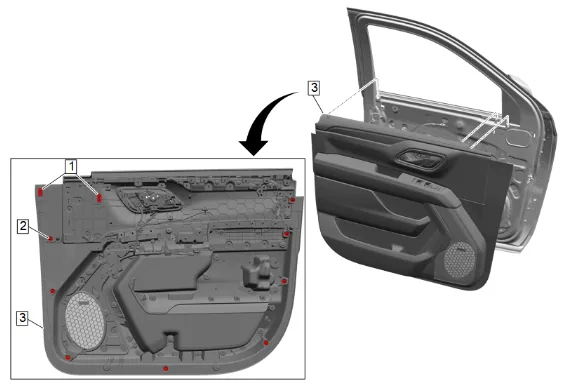

Front Side Door Inside Handle Illumination Lamp Replacement — figure 1

1. Front Side Door Trim (3) » Remove — Front Side Door Trim Removal and Installation

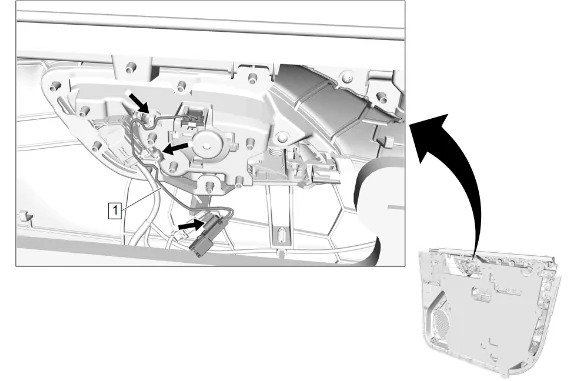

Front Side Door Inside Handle Illumination Lamp Replacement — figure 2

2. Disconnect the electrical connector.

Note

Observe the mounting and location of the wiring harness to ensure proper reinstallation.

3. Release the front side door inside handle illumination lamp wiring harness (1) from the front side door trim.

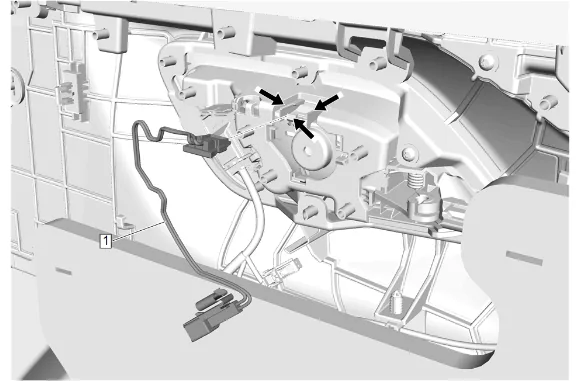

Front Side Door Inside Handle Illumination Lamp Replacement — figure 3

4. Release the retaining tabs.

5. Front Side Door Inside Handle Illumination Lamp (1) » Remove Installation Procedure

6. Front Side Door Inside Handle Illumination Lamp (1) » Install

7. Ensure the retaining tabs have fully secured.

8. Secure the front side door inside handle illumination lamp wiring harness (1) to the front side door trim.

9. Connect the electrical connector.

10. Front Side Door Trim (3) » Install — Front Side Door Trim Removal and Installation
