Front Seat Cushion Ventilation Blower Replacement

Removal Procedure

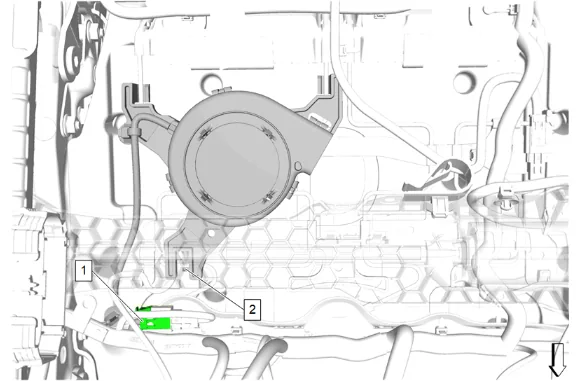

Front Seat Cushion Ventilation Blower Replacement — figure 1

1. Electrical Connector (1) » Disconnect
2. Release the retaining tab (2) securing the front seat cushion ventilation blower to the front seat vent fan mat.

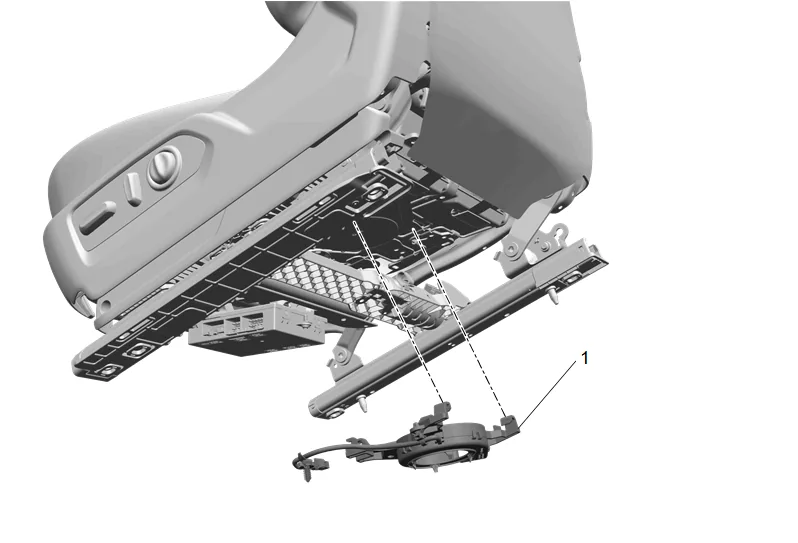

Front Seat Cushion Ventilation Blower Replacement — figure 2

3. Front Seat Cushion Ventilation Blower (1) » Remove Installation Procedure

4. Front Seat Cushion Ventilation Blower (1) » Install

5. Seat the retaining tab (2) securing the front seat cushion ventilation blower to the front seat vent fan mat.

6. Electrical Connector (1) » Connect
