Tahoe / Yukon Service Manual

Front Lower Control Arm Brace Replacement

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

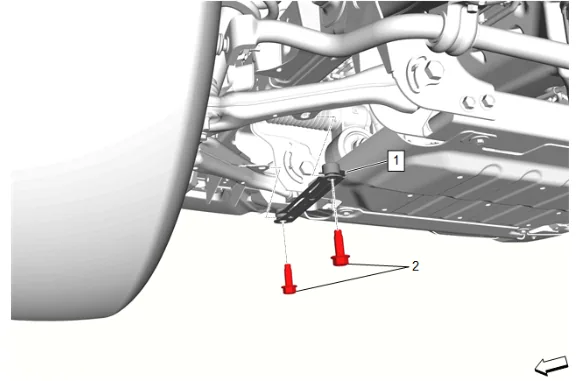

Front Lower Control Arm Brace Replacement — figure 1
Front Lower Control Arm Brace Replacement — figure 1

  1. Front Lower Control Arm Bracket Bolt (2) » Remove [2x]

  2. Front Lower Control Arm Brace (1) » Remove Installation Procedure

  3. Front Lower Control Arm Brace (1) » Install

  1. Front Lower Control Arm Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications
  2. Remove the support and lower the vehicle.
