Tahoe / Yukon Service Manual

Rear Axle Vent Hose Replacement (G86)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

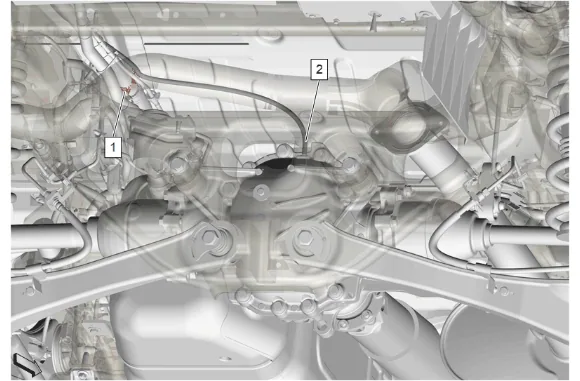

Rear Axle Vent Hose Replacement (G86) — figure 1
Rear Axle Vent Hose Replacement (G86) — figure 1
  1. Rear Axle Vent Hose (2) » Disconnect
  2. Disengage the rear axle vent hose retainer (1).

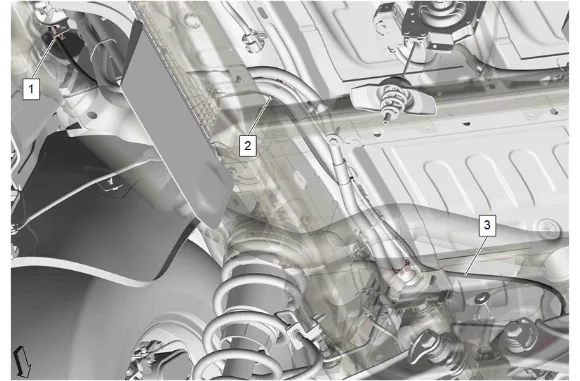

Rear Axle Vent Hose Replacement (G86) — figure 2
Rear Axle Vent Hose Replacement (G86) — figure 2
  1. Disengage the rear axle vent hose retainer (1).
  2. Disengage the rear axle vent hose retainer (2).
  3. Rear Axle Vent Hose (3) » Remove Installation Procedure
  1. Rear Axle Vent Hose (3) » Install
  2. Engage the rear axle vent hose retainer (2).
  3. Engage the rear axle vent hose retainer (1).
  1. Engage the rear axle vent hose retainer (1).
  2. Rear Axle Vent Hose (2) » Connect
  3. Lower the vehicle.
