Front Floor Console Rear Trim Panel Replacement (DCK, D07)

Front Floor Console Rear Trim Panel Replacement (DCK, D07) Removal Procedure

Front Floor Console Rear Trim Panel Replacement (DCK, D07) — figure 1

1. Front Floor Console Rear Cup Holder Liner (1) » Remove
2. Front Floor Console Cup Holder Bolt (2) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Rear Cup Holder (3) » Remove

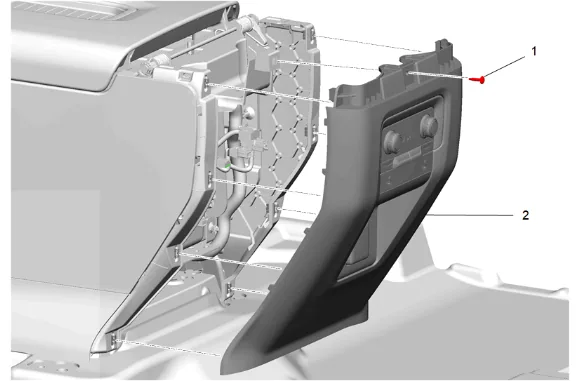

Front Floor Console Rear Trim Panel Replacement (DCK, D07) — figure 2

5. Front Floor Console Rear Cover Bolt (1) » Remove

6. Using a flat-bladed plastic trim tool, release the retaining clips.

7. Front Floor Console Rear Trim Panel (2) » Remove

8. Disconnect the electrical connectors.

9. Transfer components as necessary. Installation Procedure

10. Connect the electrical connectors.

11. Front Floor Console Rear Trim Panel (2) » Install

Caution

Refer to Fastener Caution.

3. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

4. Front Floor Console Rear Cup Holder (3) » Install

5. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

6. Front Floor Console Rear Cup Holder Liner (1) » Install
