Overview

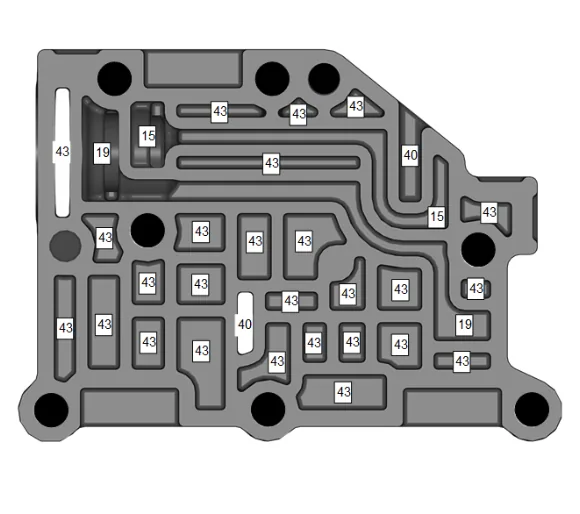

Auxiliary Control Valve Body - Auxiliary Control Valve Body Spacer Plate Side

Auxiliary Control Valve Body - Auxiliary Control Valve Body Spacer Plate Side — figure 1

(15) Feed Limit – Low (19) ON/OFF Signal (40) Exhaust (43) Void
