Fuel Tank Filler Hose Replacement (Upper)

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5596400 Single Use Fasteners and Components Fuel Tank Filler Vent Hose Strap

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

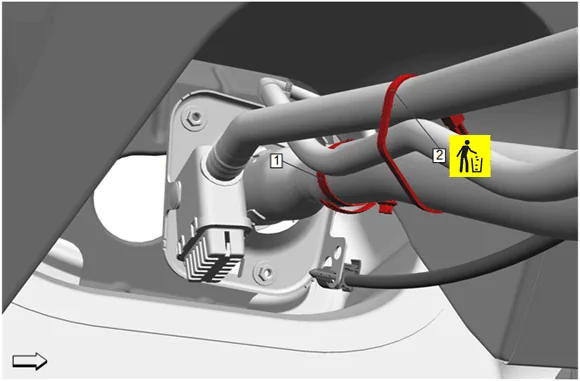

Fuel Tank Filler Hose Replacement (Upper) — figure 1
Fuel Tank Filler Hose Replacement (Upper) — figure 1
  1. Fuel Tank Filler Hose Clamp (1) » Loosen
  2. Fuel Tank Filler Vent Hose Strap (2) » Remove and DISCARD

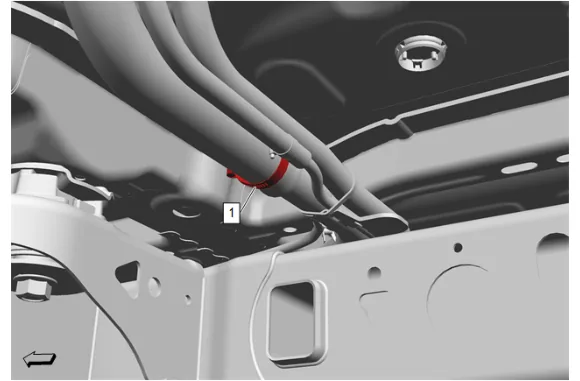

Fuel Tank Filler Hose Replacement (Upper) — figure 2
Fuel Tank Filler Hose Replacement (Upper) — figure 2
  1. Fuel Tank Filler Hose Clamp (1) » Loosen

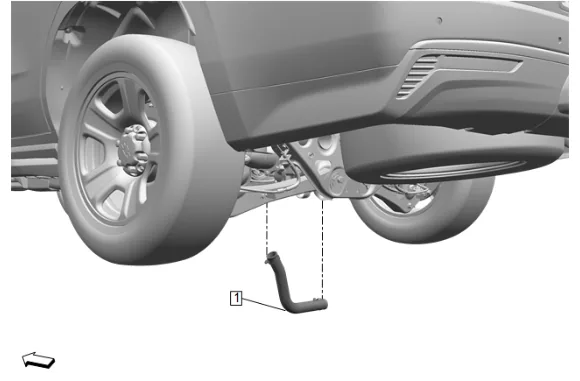

Fuel Tank Filler Hose Replacement (Upper) — figure 3
Fuel Tank Filler Hose Replacement (Upper) — figure 3

  1. Fuel Tank Filler Pipe (1) » Remove Installation Procedure

  2. Fuel Tank Filler Pipe (1) » Install

  1. Fuel Tank Filler Hose Clamp (1) » Tighten — Fastener Specifications

  2. Fuel Tank Filler Vent Hose Strap (2) » Install NEW

  3. Fuel Tank Filler Vent Hose Clamp (1) » Tighten — Fastener Specifications
