Manual Shift Shaft Seal Removal

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 5112486 Single Use Fasteners and Components Manual Shift Shaft Seal

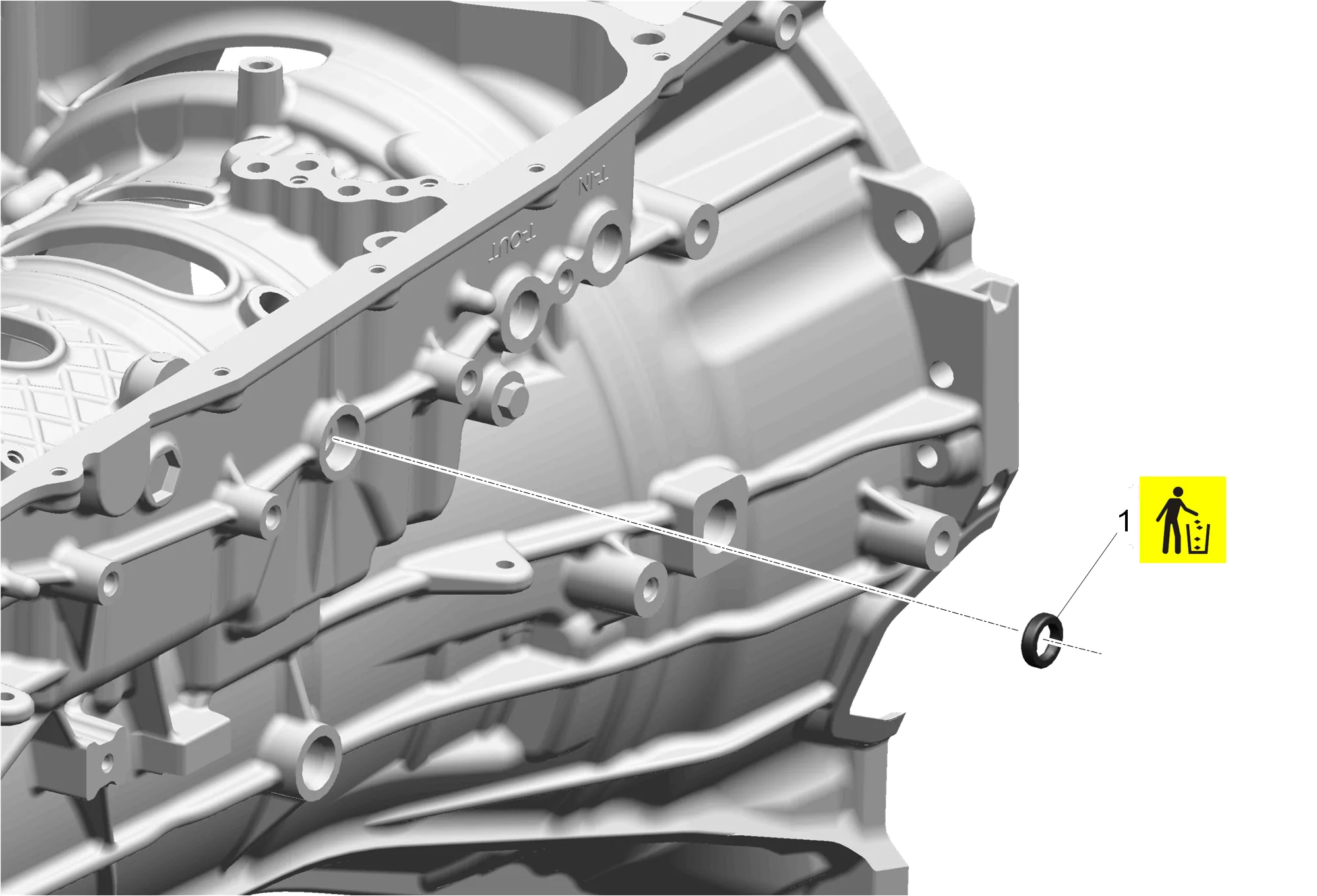

Manual Shift Shaft Seal Removal — figure 1

Caution

Do not damage the case bore during removal of the manual shift shaft seal.

1. Using a appropriate tool, remove the Manual Shift Shaft Seal (1).
2. Manual Shift Shaft Seal (1) » Remove and DISCARD
