Radiator Surge Tank Replacement (L84, L87)

Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling

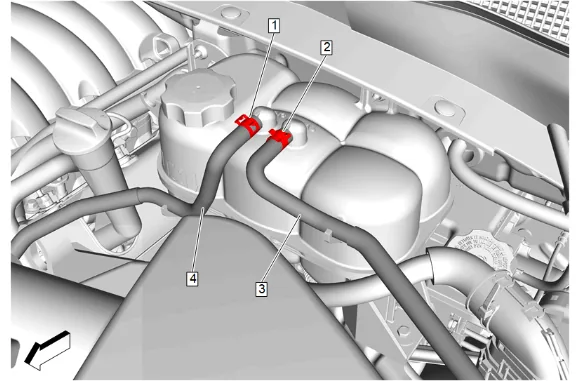

Radiator Surge Tank Replacement (L84, L87) — figure 1

2. Engine Coolant Air Bleed Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines

• Spring Type

3. Engine Coolant Air Bleed Hose (4) @ Radiator Surge Tank » Remove
4. Radiator Surge Tank Inlet Hose Clamp (2) » Disengage — Hose Clamp Replacement Guidelines

• Spring Type

5. Radiator Surge Tank Inlet Hose (3) @ Radiator Surge Tank » Remove

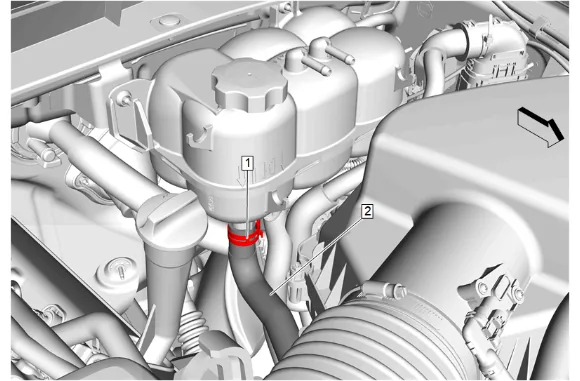

Radiator Surge Tank Replacement (L84, L87) — figure 2

6. Radiator Surge Tank Outlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
7. Radiator Surge Tank Outlet Hose (2) @ Radiator Surge Tank » Remove

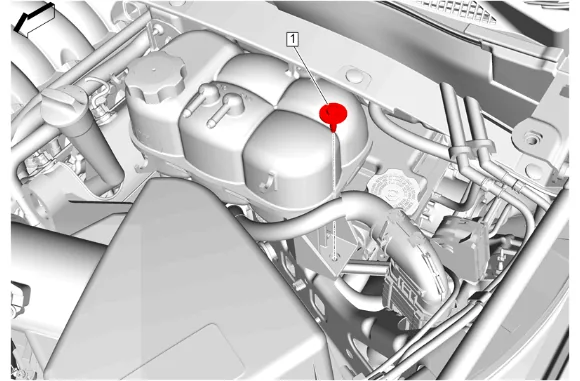

Radiator Surge Tank Replacement (L84, L87) — figure 3

8. Radiator Surge Tank Bolt (1) » Remove

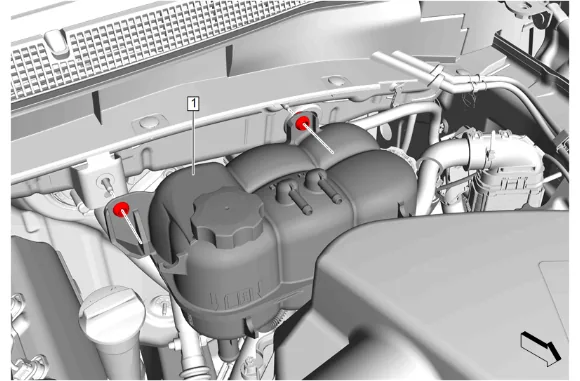

Radiator Surge Tank Replacement (L84, L87) — figure 4

9. Radiator Surge Tank (1) » Remove Installation Procedure

10. Radiator Surge Tank (1) » Install

Caution

Refer to Fastener Caution.

2. Radiator Surge Tank Bolt (1) » Install and tighten — Fastener Specifications

3. Radiator Surge Tank Outlet Hose (2) @ Radiator Surge Tank » Install

4. Radiator Surge Tank Outlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

5. Radiator Surge Tank Inlet Hose (3) @ Radiator Surge Tank » Install

6. Radiator Surge Tank Inlet Hose Clamp (2) » Engage — Hose Clamp Replacement Guidelines - Spring Type

7. Engine Coolant Air Bleed Hose (4) @ Radiator Surge Tank » Install

8. Engine Coolant Air Bleed Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

9. Fill the cooling system to the proper level. Cooling System Draining and Filling

10. Start the engine and check for coolant leaks.
