Rear Seat Frame Replacement (60 Percent)

Removal Procedure

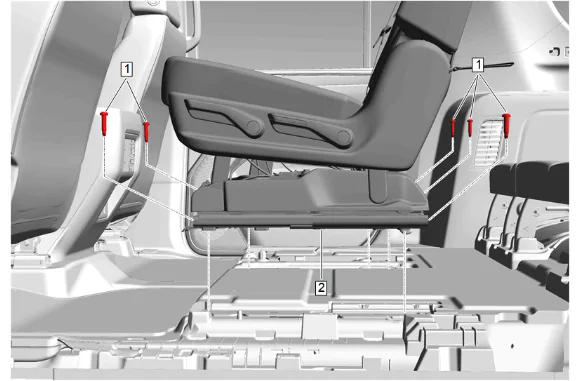

Rear Seat Frame Replacement (60 Percent) — figure 1

1. Rear Seat (2) » Remove — Rear Seat Removal and Installation

Rear Seat Frame Replacement (60 Percent) — figure 2

2. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

Rear Seat Frame Replacement (60 Percent) — figure 3

3. Rear Seat Back Cover and Pad (1) » Remove — Rear Seat Back Cover and Pad Removal and Installation

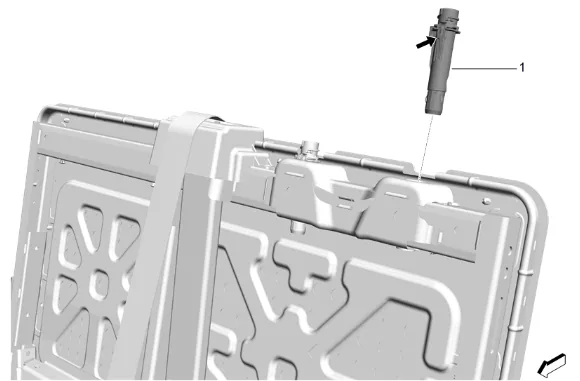

Rear Seat Frame Replacement (60 Percent) — figure 4

4. Using a suitable flat-bladed tool, push the plastic tab of the rear seat head restraint guide (1) inward and pull upward to remove from the seat back frame.
5. Rear Seat Head Restraint Guide (1) » Remove [2x]

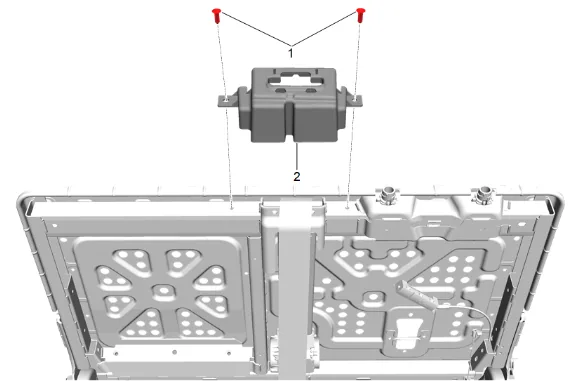

Rear Seat Frame Replacement (60 Percent) — figure 5

6. Using a suitable trim tool, release the retainers.
7. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [2x]
8. Rear Seat Belt Guide Trim Cover (2) » Remove
9. Feed the rear seat center belt through the rear seat belt guide trim cover (2).

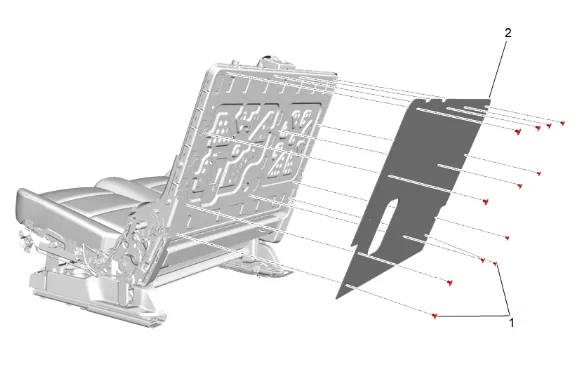

Rear Seat Frame Replacement (60 Percent) — figure 6

10. Using a suitable trim tool, release the retainers.
11. Rear Seat Back Cover Retainer (1) » Remove [12x]
12. Rear Seat Back Panel (2) » Remove

Rear Seat Frame Replacement (60 Percent) — figure 7

13. Rear Center Seat Belt Buckle Bolt (1) » Remove
14. Feed the rear seat center belt through the rear seat frame.
15. Rear Seat Center Belt Retractor (2) » Remove

Rear Seat Frame Replacement (60 Percent) — figure 8

16. { If equipped } Disconnect and reposition harness as necessary.
17. Rear Seat Belt Buckle Bolt (1) » Remove
18. Rear Seat Belt Buckle (2) » Remove

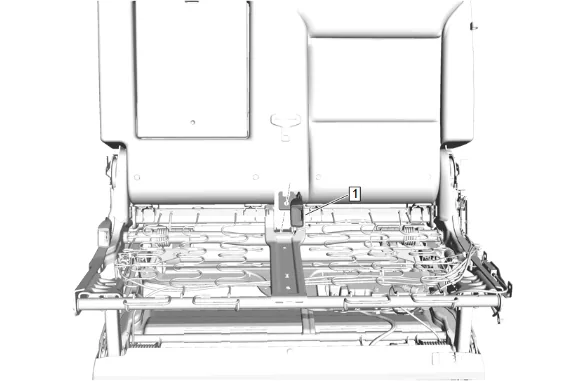

Rear Seat Frame Replacement (60 Percent) — figure 9

19. { If equipped } Disconnect and reposition harness as necessary.
20. Rear Seat Belt Buckle (1) » Remove

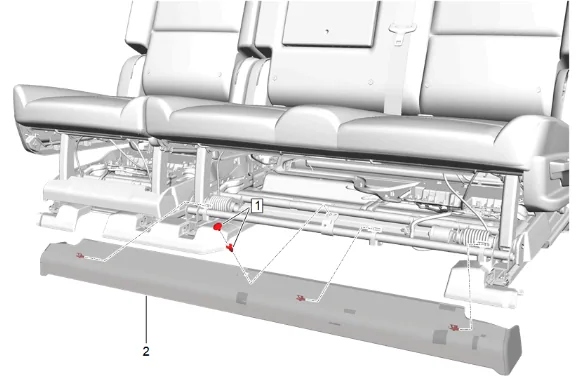

Rear Seat Frame Replacement (60 Percent) — figure 10

21. Rear Seat Riser Finish Cover Retainer (1) » Remove
22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Rear Seat Riser Finish Cover (2) » Remove

Rear Seat Frame Replacement (60 Percent) — figure 11

Note

Left side shown, right side similar.

24. Using a flat-bladed plastic trim tool, release the retaining clip.
25. Rear Seat Riser Finish Cover (1) » Remove [2x]

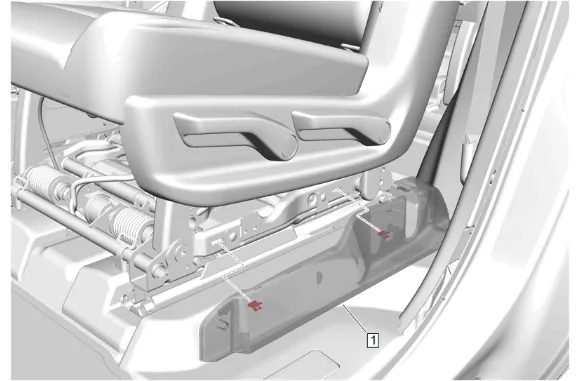

Rear Seat Frame Replacement (60 Percent) — figure 12

26. Using a flat-bladed plastic trim tool, release the retaining clips.
27. Using a suitable plastic trim tool, release the retaining tabs.
28. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove

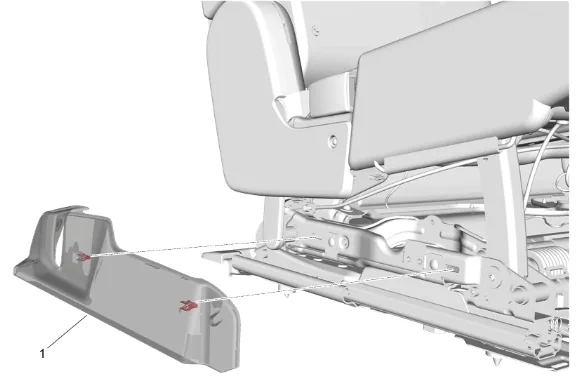

Rear Seat Frame Replacement (60 Percent) — figure 13

29. Using a flat-bladed plastic trim tool, release the retaining clips.
30. Using a suitable plastic trim tool, release the retaining tabs.
31. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove

Rear Seat Frame Replacement (60 Percent) — figure 14

32. Rear Seat Latch Finish Cover (1) » Remove [2x]

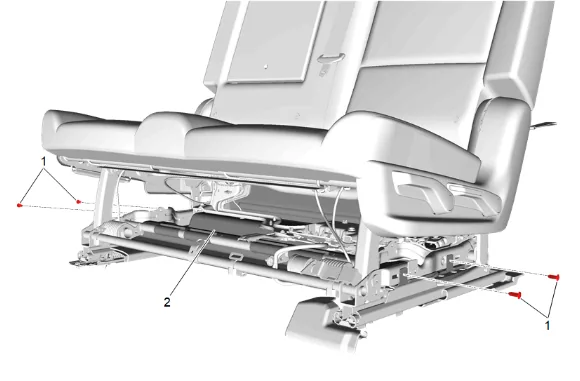

Rear Seat Frame Replacement (60 Percent) — figure 15

33. Release the remaining J-channel retainers on the rear seat cushion trim panel (2).
34. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [4x]

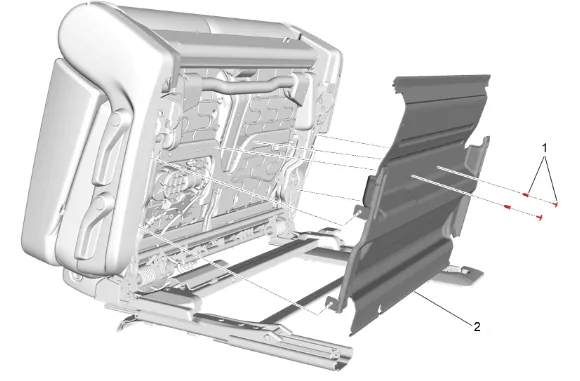

Rear Seat Frame Replacement (60 Percent) — figure 16

35. Place the rear seat in the fold and tumble position.
36. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
37. Rear Seat Cushion Trim Panel (2) » Remove

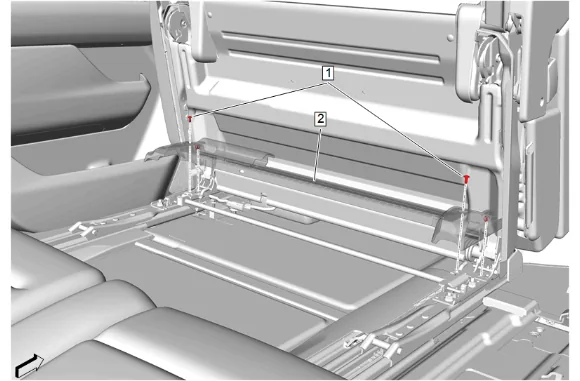

Rear Seat Frame Replacement (60 Percent) — figure 17

38. Disconnect the wiring harness retainers and reposition the harness as necessary.
39. Front Seat Bolt (1) » Remove [2x]
40. Using a flat-bladed plastic trim tool, release the retaining clips.
41. Rear Seat Track Finish Cover (2) » Remove

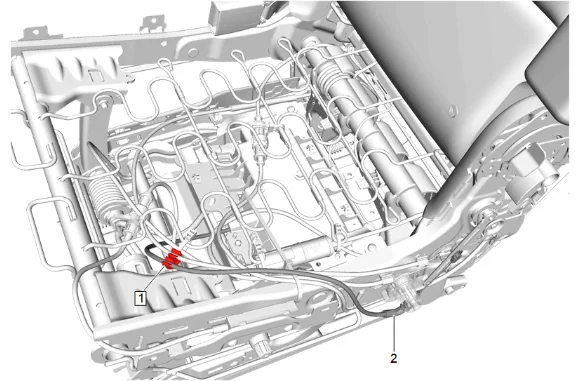

Rear Seat Frame Replacement (60 Percent) — figure 18

42. Return the rear seat to the original position.

Note

Note the location and routing of the seat cable to ensure proper installation.

43. Release the folding rear seat back actuator cable (2) from the cable retainer (1).
44. Disconnect the rear seat back actuator cable end from the rear seat frame.

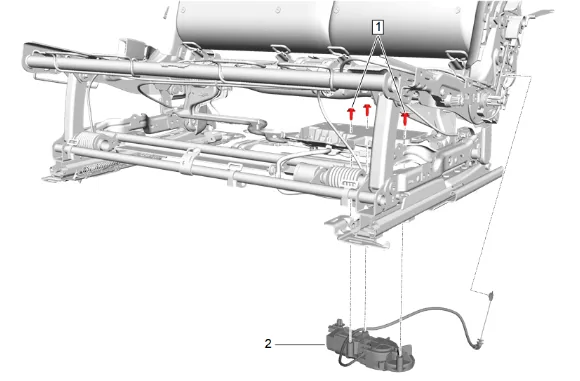

Rear Seat Frame Replacement (60 Percent) — figure 19

45. Disconnect the electrical connector.
46. Rear Seat Riser Bolt (1) » Remove [3x]
47. Folding Rear Seat Back Actuator (2) » Remove

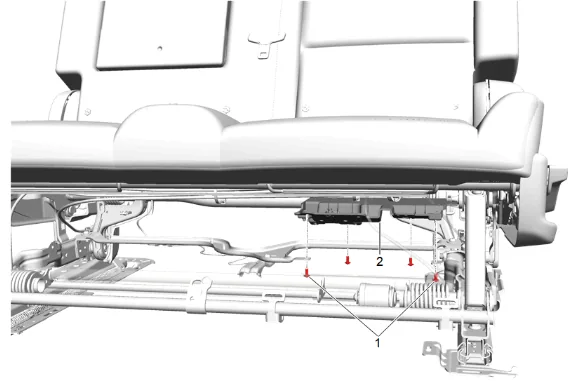

Rear Seat Frame Replacement (60 Percent) — figure 20

48. Position the seat as necessary to access the seat bolts.
49. Disconnect the wiring harness retainers and reposition the harness as necessary.
50. Front Seat Bolt (1) » Remove [4x]
51. Rear Seat Heater Control Module Bracket (2) » Remove

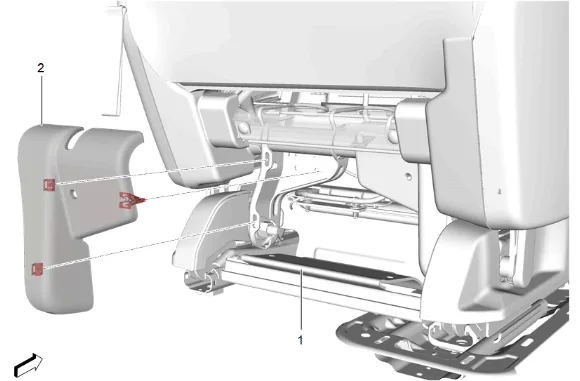

Rear Seat Frame Replacement (60 Percent) — figure 21

52. Using a flat-bladed plastic trim tool, release the retaining clips.
53. Rear Seat Frame Rear Finish Cover (2) » Remove [2x]

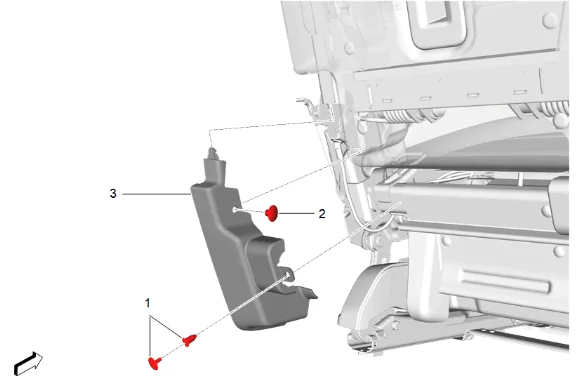

Rear Seat Frame Replacement (60 Percent) — figure 22

54. Rear Seat Riser Finish Cover Retainer (1) » Remove
55. Rear Seat Back Cover Retainer (2) » Remove
56. Rear Seat Recliner Inner Finish Cover (3) » Remove

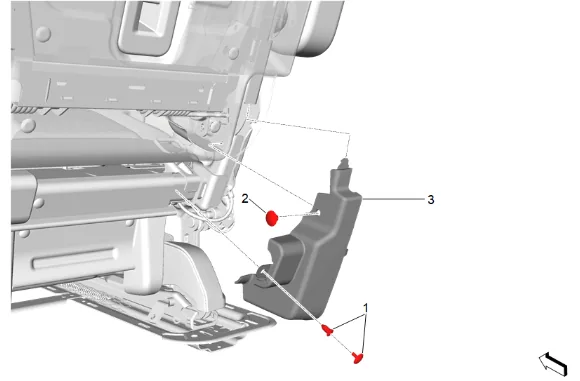

Rear Seat Frame Replacement (60 Percent) — figure 23

57. Rear Seat Riser Finish Cover Retainer (1) » Remove
58. Rear Seat Back Cover Retainer (2) » Remove
59. Rear Seat Recliner Inner Finish Cover (3) » Remove

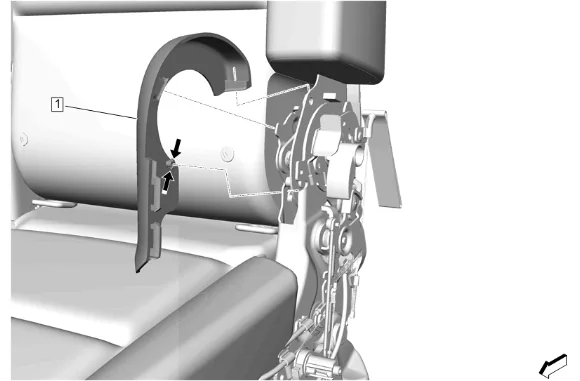

Rear Seat Frame Replacement (60 Percent) — figure 24

60. Depress the retaining tab while pulling the rear seat hinge finish cover (1) inward then upward to release from the rear seat hinge.
61. Rear Seat Hinge Finish Cover - Outboard (1) » Remove

Rear Seat Frame Replacement (60 Percent) — figure 25

62. Depress the retaining tab while pulling the rear seat hinge finish cover (1) inward then upward to release from the rear seat hinge.
63. Rear Seat Hinge Finish Cover - Inboard (1) » Remove

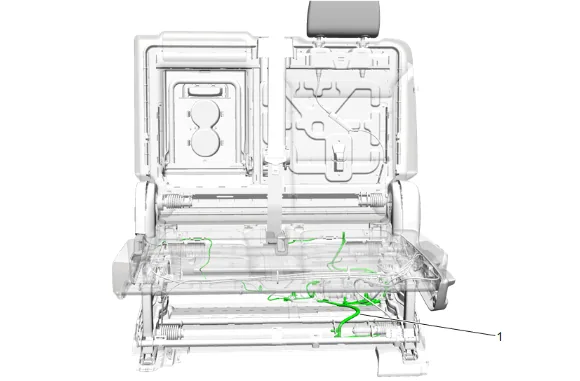

Rear Seat Frame Replacement (60 Percent) — figure 26

Note

Typical wiring harness shown, individual harness may be different due to option content. Various seat components may need to be removed from the seat to access the harness depending on seat and content options.

64. Disconnect the electrical connectors and release the wiring harness retainers as necessary.
65. Rear Seat Wiring Harness (1) » Remove

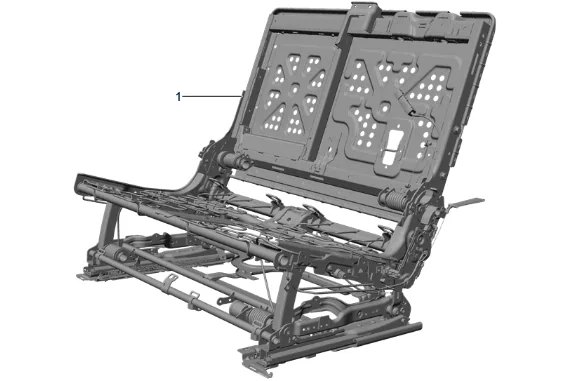

Rear Seat Frame Replacement (60 Percent) — figure 27

66. Rear Seat Frame (1) » Remove Installation Procedure

67. Rear Seat Frame (1) » Install

68. Rear Seat Wiring Harness (1) » Install

69. Connect the electrical connectors and install the wiring harness retainers as necessary.

70. Rear Seat Hinge Finish Cover - Inboard (1) » Install

71. Rear Seat Hinge Finish Cover - Outboard (1) » Install

72. Rear Seat Recliner Inner Finish Cover (3) » Install

73. Rear Seat Back Cover Retainer (2) » Install

74. Rear Seat Riser Finish Cover Retainer (1) » Install

75. Rear Seat Recliner Inner Finish Cover (3) » Install

76. Rear Seat Back Cover Retainer (2) » Install

77. Rear Seat Riser Finish Cover Retainer (1) » Install

78. Rear Seat Frame Rear Finish Cover (2) » Install [2x]

79. Position the seat as necessary to access the seat bolts.

80. Rear Seat Heater Control Module Bracket (2) » Install

Caution

Refer to Fastener Caution.

15. Front Seat Bolt (1) » Install and tighten [4x] — Fastener Specifications

16. Position the wiring harness and connect the harness retainers.

17. Folding Rear Seat Back Actuator (2) » Install

18. Rear Seat Riser Bolt (1) » Install and tighten [3x] — Fastener Specifications

19. Connect the electrical connector.

20. Position the rear seat back actuator cable (2) to the original location.

21. Connect the rear seat back actuator cable end to the rear seat frame.

22. Secure the folding rear seat back actuator cable (2) into the cable retainer (1).

23. Place the rear seat in the fold and tumble position.

24. Rear Seat Track Finish Cover (2) » Install

25. Front Seat Bolt (2) » Install and tighten [2x] — Fastener Specifications

26. Position the wiring harness and connect the harness retainers.

27. Rear Seat Cushion Trim Panel (2) » Install

28. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

29. Return the rear seat to the original position.

30. Rear Seat Back Opening Finish Cover Retainer (1) » Install [4x]

31. Secure the J-channel retainers on the rear seat cushion trim panel (2).

32. Rear Seat Latch Finish Cover (1) » Install [2x]

33. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

34. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

Note

Left side shown, right side similar.

35. Rear Seat Riser Finish Cover (1) » Install [2x]

36. Rear Seat Riser Finish Cover (2) » Install

37. Rear Seat Riser Finish Cover Retainer (1) » Install

38. { If equipped } Connect and position the wiring harness.

39. Rear Seat Belt Buckle (1) » Install

40. Rear Seat Belt Buckle (2) » Install

41. Rear Seat Belt Buckle Bolt (1) » Install and tighten — Fastener Specifications

42. { If equipped } Connect and position the wiring harness.

43. Rear Seat Center Belt Retractor (2) » Install

44. Feed the rear seat center belt through the rear seat frame.

45. Rear Center Seat Belt Buckle Bolt (1) » Install and tighten — Fastener Specifications

46. Rear Seat Back Panel (2) » Install

47. Rear Seat Back Cover Retainer (1) » Install [12x]

48. Feed the rear seat center belt through the rear seat belt guide trim cover (2).

49. Rear Seat Belt Guide Trim Cover (2) » Install

50. Rear Seat Back Opening Finish Cover Retainer (1) » Install [2x]

51. Rear Seat Head Restraint Guide (1) » Install [2x]

52. Rear Seat Back Cover and Pad (1) » Install — Rear Seat Back Cover and Pad Removal and Installation

53. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

54. Rear Seat (2) » Install — Rear Seat Removal and Installation
