3rd Row Seat Riser Replacement (Power)

Removal Procedure

3rd Row Seat Riser Replacement (Power) — figure 1

1. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

3rd Row Seat Riser Replacement (Power) — figure 2

2. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

3rd Row Seat Riser Replacement (Power) — figure 3

3. 3rd Row Seat Cushion Cover and Pad (1) » Remove — 3rd Row Seat Cushion Cover and Pad Removal and Installation

3rd Row Seat Riser Replacement (Power) — figure 4

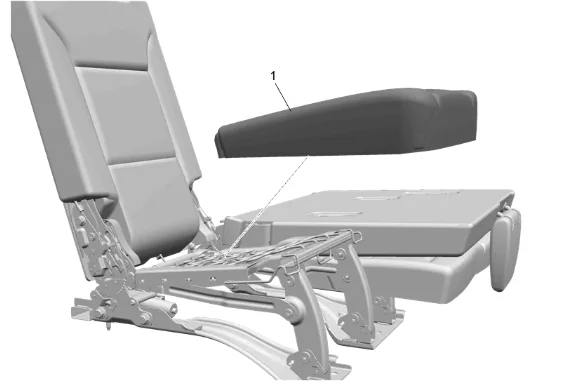

4. 3rd Row Seat Cushion Cover and Pad (1) » Remove — 3rd Row Seat Cushion Cover and Pad Removal and Installation

3rd Row Seat Riser Replacement (Power) — figure 5

5. 3rd Row Seat Nut (1) » Remove

3rd Row Seat Riser Replacement (Power) — figure 6

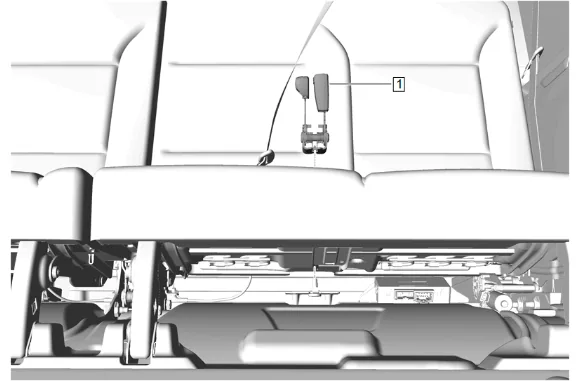

6. 3rd Row Seat Belt Buckle (1) » Remove

3rd Row Seat Riser Replacement (Power) — figure 7

7. 3rd Row Seat Nut (1) » Remove
8. Remove and DISCARD the 3rd row seat nut retaining washer, if equipped.

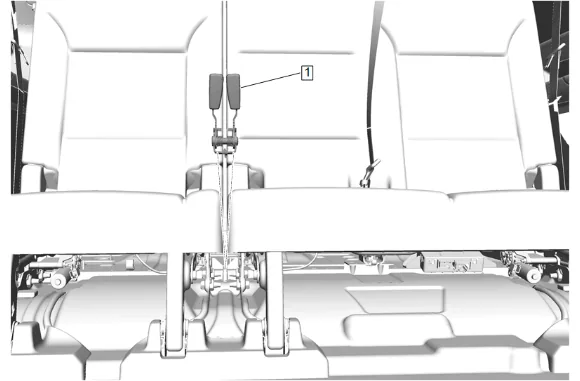

3rd Row Seat Riser Replacement (Power) — figure 8

9. 3rd Row Seat Belt Buckle (1) » Remove

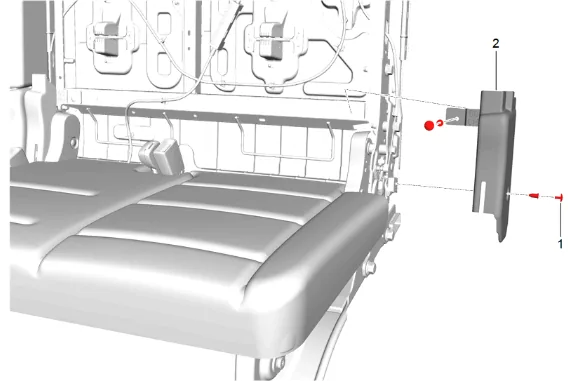

3rd Row Seat Riser Replacement (Power) — figure 9

10. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
11. 3rd Row Seat Hinge Finish Cover - Outer (2) » Remove

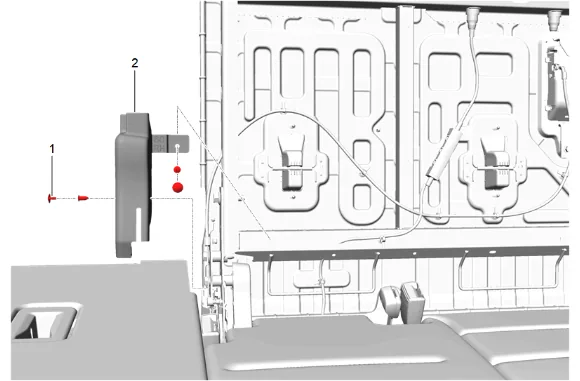

3rd Row Seat Riser Replacement (Power) — figure 10

12. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
13. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Remove

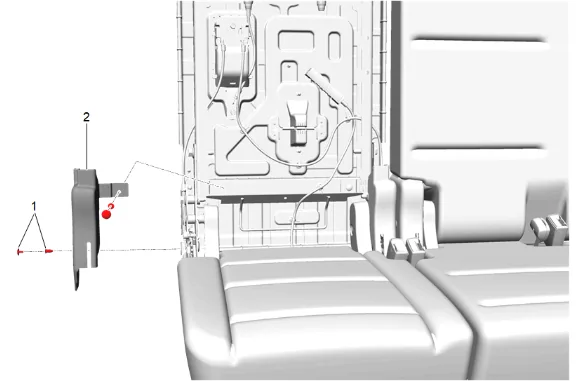

3rd Row Seat Riser Replacement (Power) — figure 11

14. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
15. 3rd Row Seat Hinge Finish Cover - Outer (2) » Remove

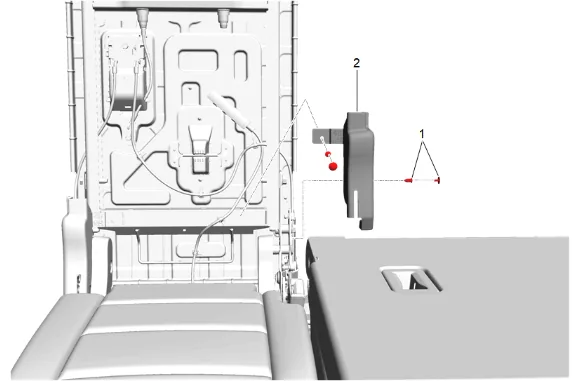

3rd Row Seat Riser Replacement (Power) — figure 12

16. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
17. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Remove

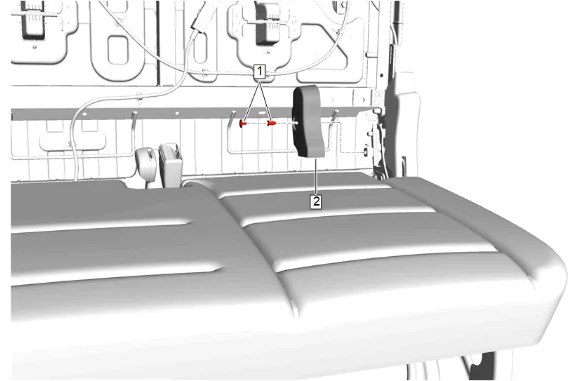

3rd Row Seat Riser Replacement (Power) — figure 13

18. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
19. 3rd Row Seat Hinge Finish Cover - Inside Outer (2) » Remove [2x]

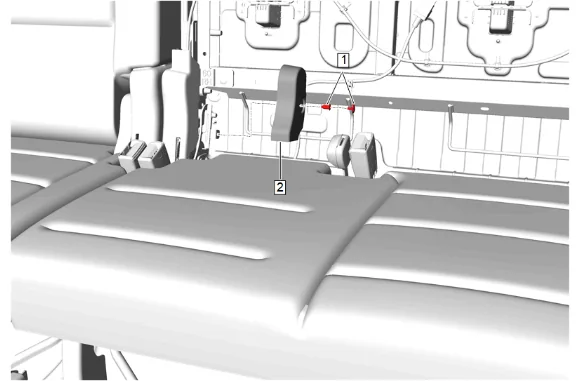

3rd Row Seat Riser Replacement (Power) — figure 14

20. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
21. 3rd Row Seat Hinge Finish Inner Cover - Inside Inner (2) » Remove [2x]

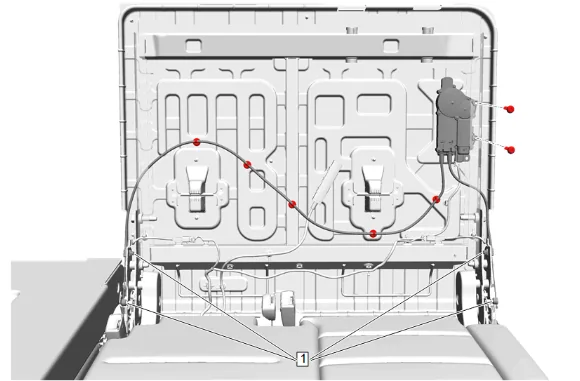

3rd Row Seat Riser Replacement (Power) — figure 15

22. Disconnect both 3rd row seat back actuator cable ends (1) from the seat back latch.

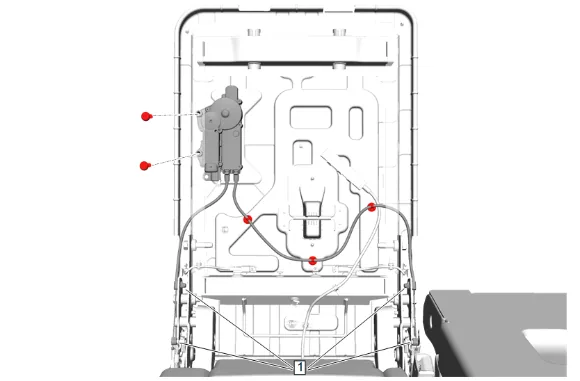

3rd Row Seat Riser Replacement (Power) — figure 16

23. Disconnect both 3rd row seat back actuator cable ends (1) from the seat back latch.

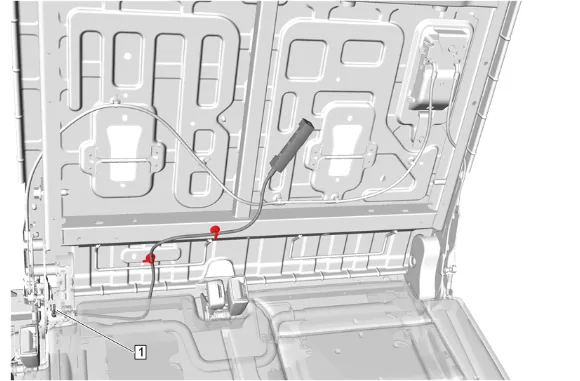

3rd Row Seat Riser Replacement (Power) — figure 17

24. Disconnect the 3rd row seat back latch cable end (1) from the seat back latch.

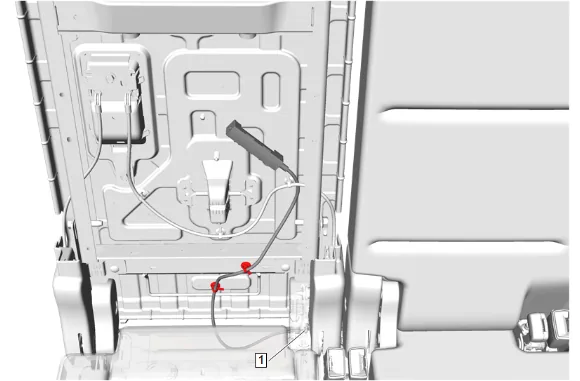

3rd Row Seat Riser Replacement (Power) — figure 18

25. Disconnect the 3rd row seat back latch cable end (1) from the seat back latch.

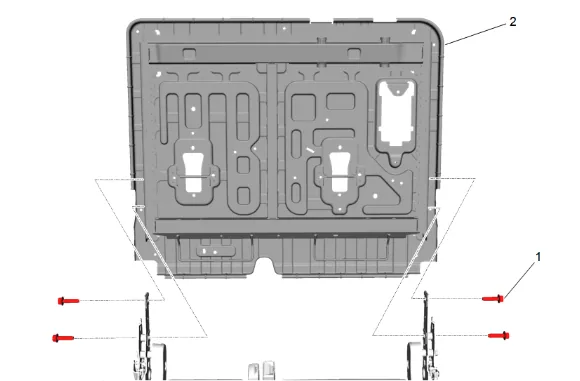

3rd Row Seat Riser Replacement (Power) — figure 19

26. Disconnect and reposition harness as necessary.
27. 3rd Row Seat Back Frame Bolt (1) » Remove [4x]
28. 3rd Row Seat Back Frame (2) » Remove

3rd Row Seat Riser Replacement (Power) — figure 20

29. Disconnect and reposition harness as necessary.
30. 3rd Row Seat Back Frame Bolt (1) » Remove [4x]
31. 3rd Row Seat Back Frame (2) » Remove

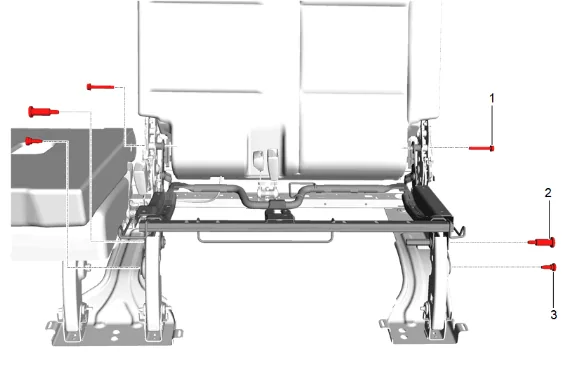

3rd Row Seat Riser Replacement (Power) — figure 21

32. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Remove [2x]
33. 3rd Row Seat Cushion Frame Bolt – Front (2) » Remove [2x]
34. 3rd Row Seat Cushion Frame Link Bolt (3) » Remove [2x]

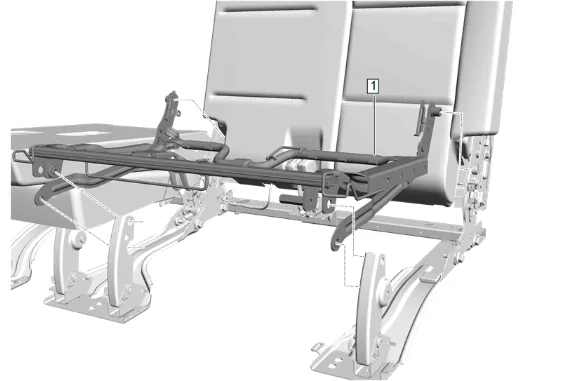

3rd Row Seat Riser Replacement (Power) — figure 22

35. 3rd Row Seat Cushion Frame (1) » Remove

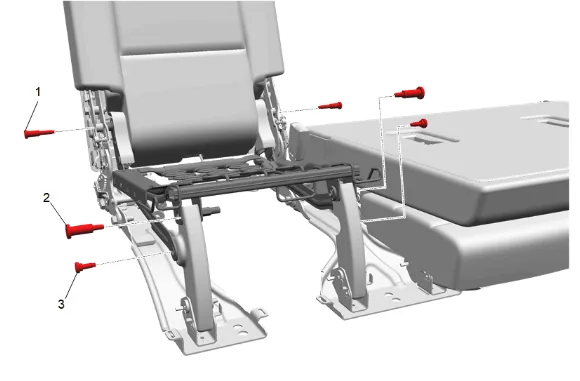

3rd Row Seat Riser Replacement (Power) — figure 23

36. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Remove [2x]
37. 3rd Row Seat Cushion Frame Bolt – Front (2) » Remove [2x]
38. 3rd Row Seat Cushion Frame Link Bolt (3) » Remove [2x]

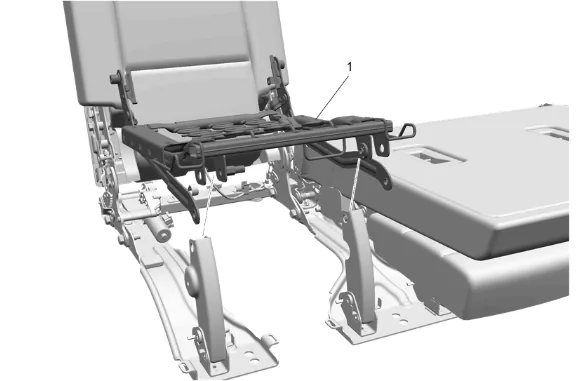

3rd Row Seat Riser Replacement (Power) — figure 24

39. 3rd Row Seat Cushion Frame (1) » Remove

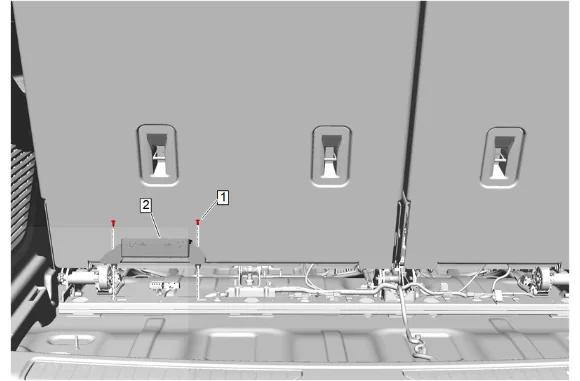

3rd Row Seat Riser Replacement (Power) — figure 25

40. Folding 3rd Row Seat Module Bolt (1) » Remove [2x]
41. Disconnect the electrical connectors.
42. Folding 3rd Row Seat Module (2) » Remove

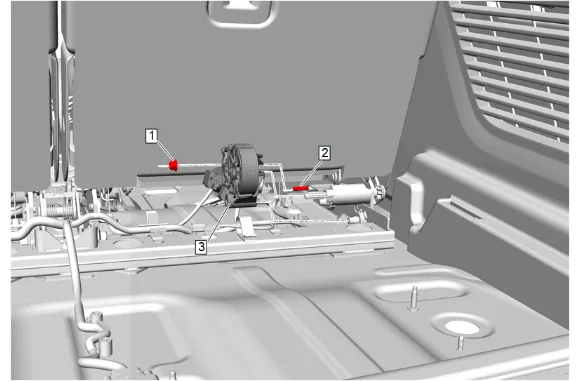

3rd Row Seat Riser Replacement (Power) — figure 26

43. Remove both 3rd row seat back pivot actuator motor nuts (1) from the 3rd row seat back pivot actuator motor bolts (2).
44. Disconnect the electrical connectors.
45. Disconnect the wiring harness retainers.
46. 3rd Row Seat Back Pivot Actuator Motor (3) » Remove [2x]

3rd Row Seat Riser Replacement (Power) — figure 27

47. Disconnect and reposition the 3rd row seat wiring harness as necessary.

48. 3rd Row Seat Riser (1) » Remove Installation Procedure

49. 3rd Row Seat Riser (1) » Install

50. Position and reconnect the 3rd row seat wiring harness.

51. 3rd Row Seat Back Pivot Actuator Motor (3) » Install [2x]

52. Connect the wiring harness retainers.

53. Connect the electrical connectors.

Caution

Refer to Fastener Caution.

6. Install and tighten both 3rd row seat back pivot actuator motor nuts (1) to the 3rd row seat back pivot actuator motor bolts (2). Fastener Specifications

7. Folding 3rd Row Seat Module (2) » Install

8. Connect the electrical connectors.

9. Folding 3rd Row Seat Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

10. 3rd Row Seat Cushion Frame (1) » Install

11. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 11.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 11.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 11.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 11.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

12. 3rd Row Seat Cushion Frame Link Bolt (3) » Install and tighten [2x] — Fastener Specifications

13. 3rd Row Seat Cushion Frame Bolt – Front (2) » Install and tighten [2x] — Fastener Specifications

14. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Install and tighten [2x] — Fastener Specifications

15. 3rd Row Seat Cushion Frame (1) » Install

16. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 16.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 16.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 16.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 16.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

17. 3rd Row Seat Cushion Frame Link Bolt (3) » Install and tighten [2x] — Fastener Specifications

18. 3rd Row Seat Cushion Frame Bolt – Front (2) » Install and tighten [2x] — Fastener Specifications

19. 3rd Row Seat Cushion Frame Bolt – Rear (1) » Install and tighten [2x] — Fastener Specifications

20. 3rd Row Seat Back Frame (2) » Install

21. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 21.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 21.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 21.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 21.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Note

Bolt holes are oversized to allow for seat back frame adjustment. Align the seat back frame with the opposite side seat back before tightening the seat back frame bolts.

22. 3rd Row Seat Back Frame Bolt (1) » Install and tighten [4x] — Fastener Specifications

23. Connect and position the wiring harness.

24. 3rd Row Seat Back Frame (2) » Install

25. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 25.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 25.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 25.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 25.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Note

Bolt holes are oversized to allow for seat back frame adjustment. Align the seat back frame with the opposite side seat back before tightening the seat back frame bolts.

26. 3rd Row Seat Back Frame Bolt (1) » Install and tighten [4x] — Fastener Specifications

27. Connect and position the wiring harness.

28. Connect the 3rd row seat back latch cable end (1) to the seat back latch.

29. Connect the 3rd row seat back latch cable end (1) to the seat back latch.

30. Connect both 3rd row seat back actuator cable ends (1) to the seat back latch.

31. Connect both 3rd row seat back actuator cable ends (1) to the seat back latch.

32. 3rd Row Seat Hinge Finish Inner Cover - Inside Inner (2) » Install [2x]

33. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

34. 3rd Row Seat Hinge Finish Cover - Inside Outer (2) » Install [2x]

35. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

36. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Install

37. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

38. 3rd Row Seat Hinge Finish Cover - Outer (2) » Install

39. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

40. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Install

41. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

42. 3rd Row Seat Hinge Finish Cover - Outer (2) » Install

43. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

44. 3rd Row Seat Belt Buckle (1) » Install

45. 3rd Row Seat Nut (1) » Install and tighten — Fastener Specifications

46. 3rd Row Seat Belt Buckle (1) » Install

47. 3rd Row Seat Nut (1) » Install and tighten — Fastener Specifications

48. 3rd Row Seat Cushion Cover and Pad (1) » Install — 3rd Row Seat Cushion Cover and Pad Removal and Installation

49. 3rd Row Seat Cushion Cover and Pad (1) » Install — 3rd Row Seat Cushion Cover and Pad Removal and Installation

50. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation

51. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation
