Engine Oil Pressure Sensor Replacement

Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

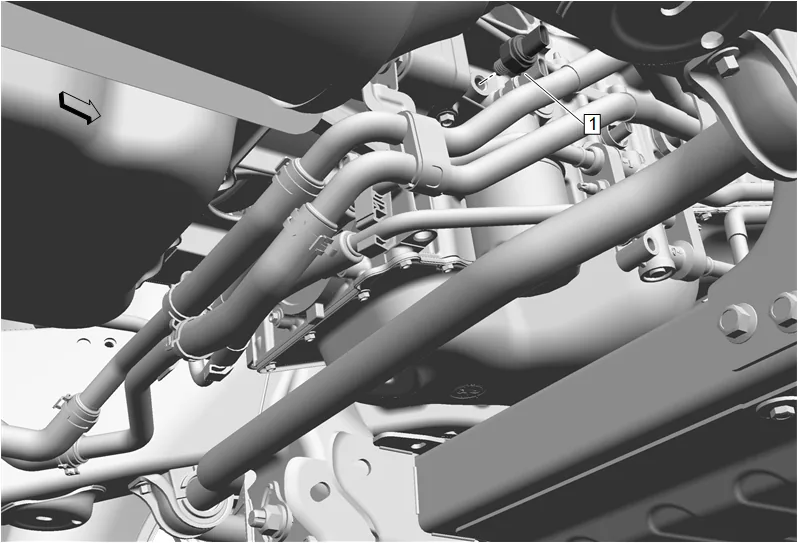

Engine Oil Pressure Sensor Replacement — figure 1

2. Disconnect the engine oil pressure sensor electrical connector.
3. Engine Oil Pressure Sensor (1) » Remove Installation Procedure

Caution

Refer to Component Fastener Tightening Caution.

1. Engine Oil Pressure Sensor (1) » Install and tighten — Fastener Specifications
2. Connect the engine oil pressure sensor electrical connector.
3. Lower the vehicle.
