Front Side Door Weatherstrip Replacement - Door Side

Removal Procedure

Front Side Door Weatherstrip Replacement - Door Side — figure 1

1. Front Side Door Check Link Bolt (1) » Remove

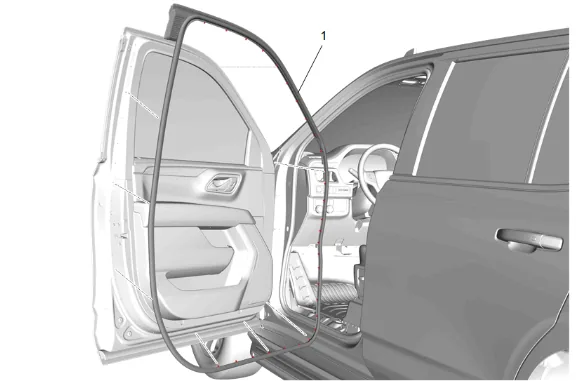

Front Side Door Weatherstrip Replacement - Door Side — figure 2

2. Using the appropriate tool, remove the weatherstrip retainers from around the front side door.

3. Front Side Door Weatherstrip - Door Side (1) » Remove Installation Procedure

4. Working from top to bottom, install the front side door weatherstrip retainers ensuring they are fully seated.

5. Front Side Door Weatherstrip - Door Side (1) » Install

Caution

Refer to Fastener Caution.

3. Front Side Door Check Link Bolt (1) » Install and tighten — Fastener Specifications
