Steering Column Tilt Wheel and Telescope Control Module Replacement

Steering Column Tilt Wheel and Telescope Control Module Replacement Removal Procedure

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 1

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 4

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Disconnect the electrical connectors.
8. Instrument Panel Trim Pad (2) » Remove

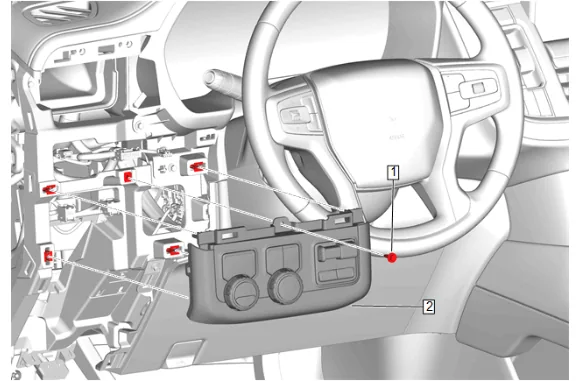

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 5

9. Instrument Panel Switch Trim Plate Bolt (1) » Remove
10. Disconnect the electrical connectors.
11. Instrument Panel Switch Trim Plate (2) » Remove

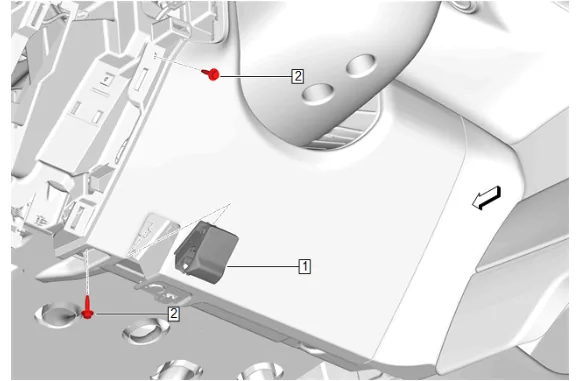

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 6

12. Hood Primary Latch Release Cable Handle (1) » Release
13. Instrument Panel Knee Bolster Bolt (2) » Remove [2x]

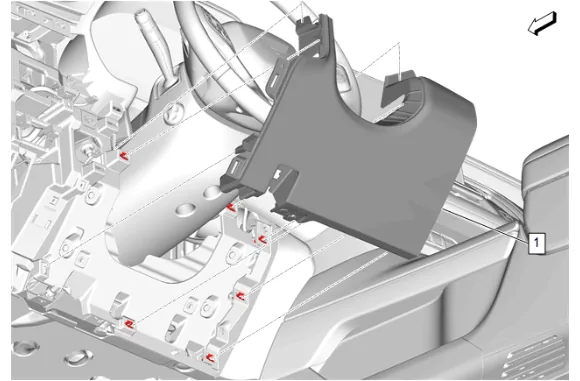

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 7

Note

You may have to push down on the lower steering column closeout to clear the instrument panel cluster trim plate.

14. Instrument Panel Knee Bolster (1) » Remove
15. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 8

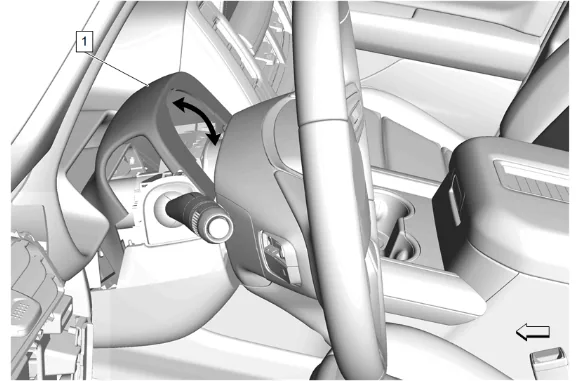

16. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 9

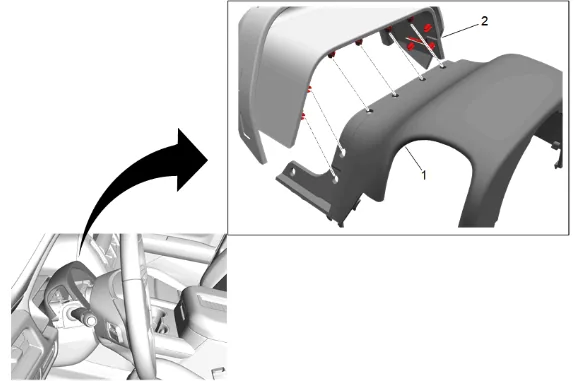

17. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column opening closeout (2).

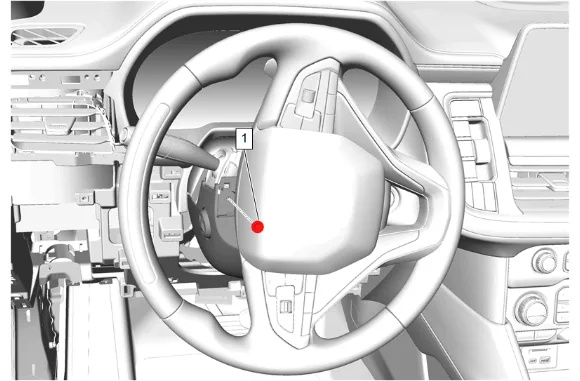

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 10

18. Turn the steering wheel approximately 90 degrees to the left of the centered position.
19. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove

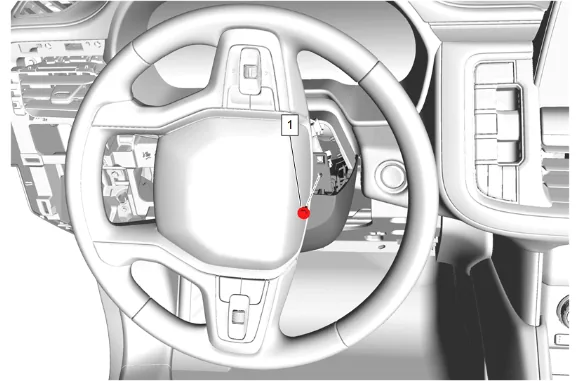

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 11

20. Turn the steering wheel approximately 90 degrees to the right of the centered position.
21. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
22. Turn the steering wheel to the centered position.

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 12

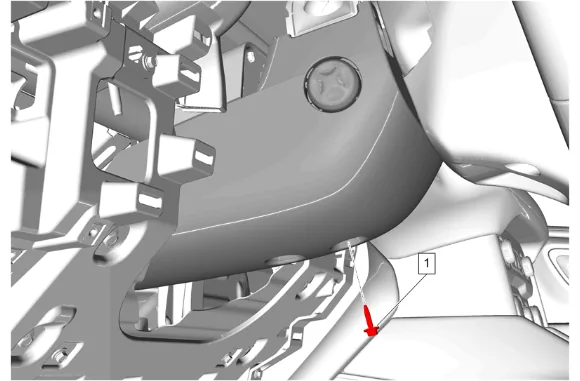

23. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
24. Disconnect the electrical connectors.

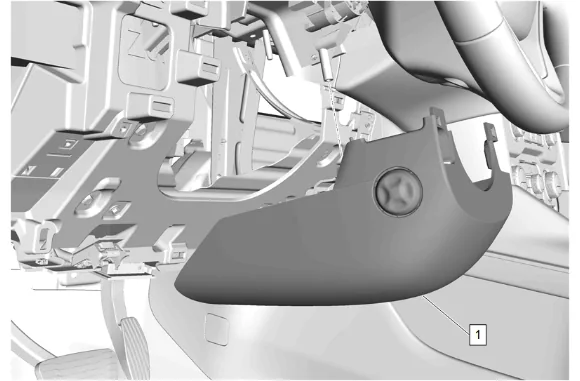

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 13

25. Instrument Panel Steering Column Lower Trim Cover (1) » Remove

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

26. Disable the SIR system. SIR Disabling and Enabling

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 14

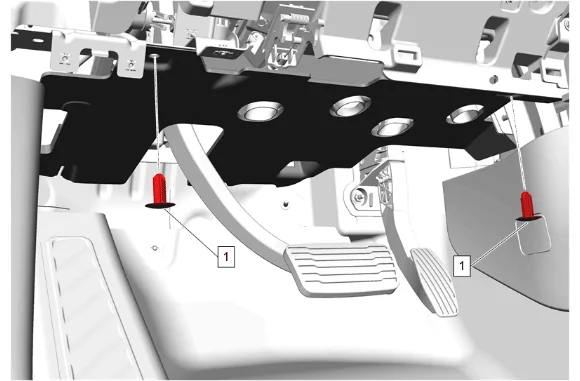

27. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 15

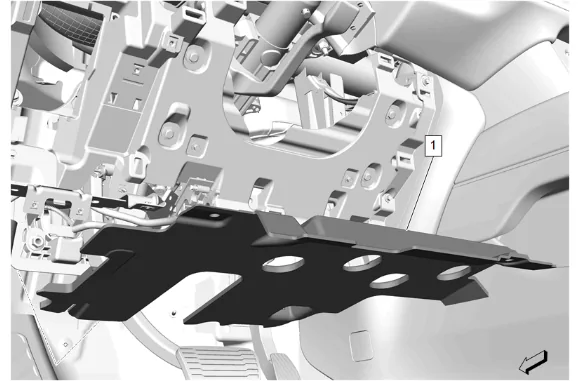

28. Instrument Panel Lower Trim Panel Insulator (1) » Remove

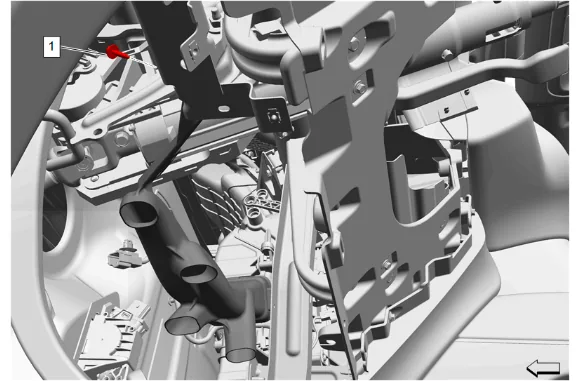

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 16

29. Floor Front Air Outlet Duct Bolt (1) » Remove

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 17

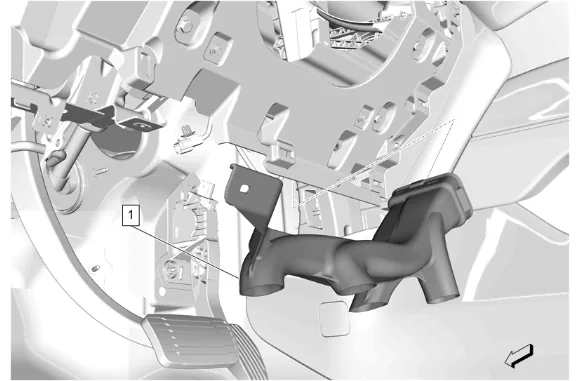

30. Floor Front Air Outlet Duct - Left Side (1) » Remove

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 18

31. Upper Intermediate Steering Shaft Bolt (1) » Remove

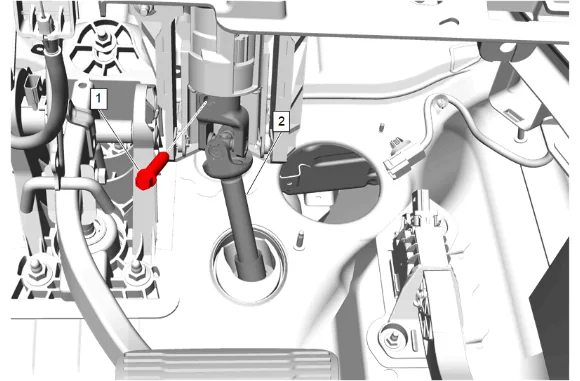

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 19

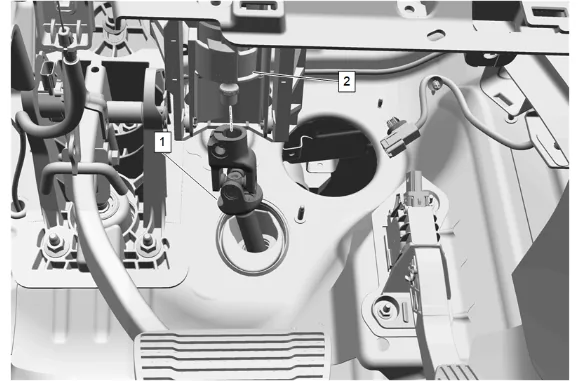

32. Upper Intermediate Steering Shaft (1) @ Steering Column (2) » Separate

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 20

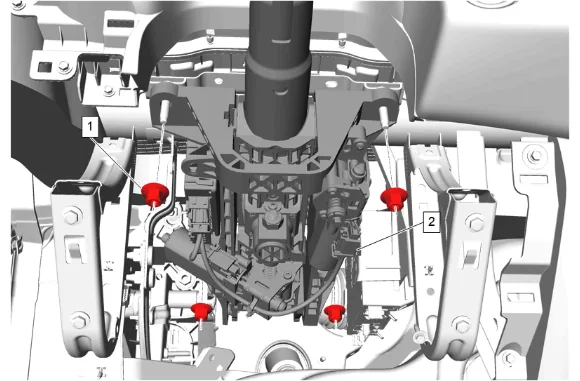

33. Steering Column Nut (1) » Remove [4x]
34. Disconnect the steering column electrical connectors as necessary.

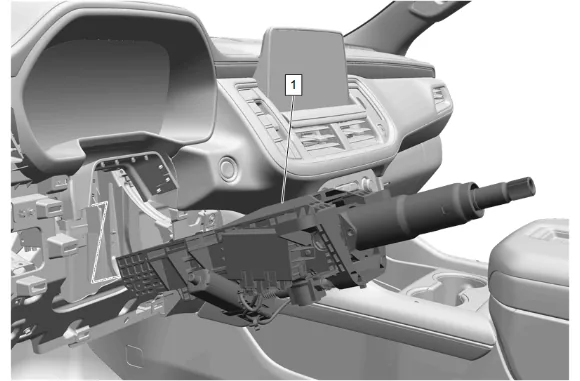

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 21

35. Steering Column (1) » Remove

Steering Column Tilt Wheel and Telescope Control Module Replacement — figure 22

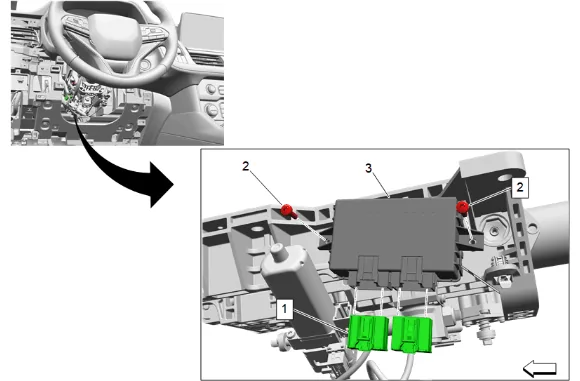

36. Disconnect the electrical connectors. (1)

37. Steering Column Control Module Bracket Bolt (2) » Remove [2x]

38. Steering Column Tilt Wheel and Telescope Control Module (3) » Remove Installation Procedure

39. Steering Column Tilt Wheel and Telescope Control Module (3) » Install

Caution

Fastener Caution

2. Steering Column Control Module Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connectors. (1)

4. Steering Column (1) » Install

5. Connect the steering column electrical connectors.

6. Steering Column Nut (1) » Install and tighten [4x] — Fastener Specifications

7. Upper Intermediate Steering Shaft (1) » Install

8. Upper Intermediate Steering Shaft Bolt (1) » Install and tighten — Fastener Specifications

Warning

Upon installing the floor duct to the side of the HVAC case, it is necessary to verify duct opening is completely installed, surrounding the HVAC case outlet port. Failure to do so could result in the duct falling downward, with the potential to interfere with driver’s legs and gas/brake pedal operation.

9. Floor Front Air Outlet Duct - Left Side (1) » Install

10. Floor Front Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

11. Instrument Panel Lower Trim Panel Insulator (1) » Install

12. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

13. Enable the SIR System. SIR Disabling and Enabling

14. Instrument Panel Steering Column Lower Trim Cover (1) » Install

15. Connect the electrical connector.

16. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

17. Turn the steering wheel approximately 90 degrees to the right of the centered position.

18. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

19. Turn the steering wheel approximately 90 degrees to the left of the centered position.

20. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

21. Turn the steering wheel to the centered position.

22. Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

23. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

24. Instrument Panel Knee Bolster (1) » Install

25. Instrument Panel Knee Bolster Bolt (2) » Install and tighten [2x] — Fastener Specifications

26. Hood Primary Latch Release Cable Handle (1) » Install

27. Connect the electrical connectors.

28. Instrument Panel Switch Trim Plate (2) » Install

29. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

30. Connect the electrical connectors.

31. Instrument Panel Trim Pad (2) » Install

32. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

33. Instrument Panel Trim Plate Applique (1) » Install

34. Instrument Panel Fuse Block Access Hole Cover (1) » Install

35. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

36. Program the steering column tilt wheel and telescope control module. Control Module References
