Front of Engine - Internal

Front of Engine - Internal — figure 1
Front of Engine - Internal — figure 1

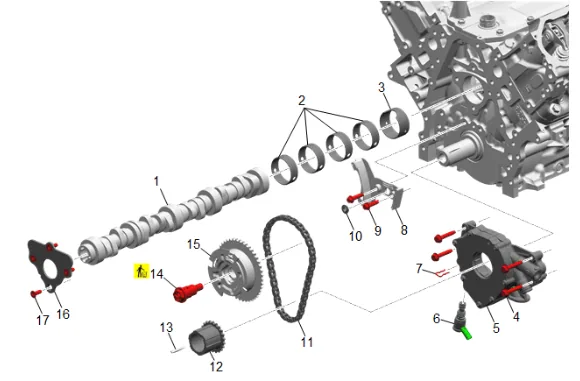

(1) Camshaft (2) Camshaft Bearing [4x] (3) Camshaft Bearing (4) Oil Pump Bolt [4x] (5) Oil Pump (6) Oil Pump Flow Control Solenoid Valve (7) Oil Pump Flow Control Solenoid Valve Retainer (8) Timing Chain Tensioner (9) Timing Chain Tensioner Bolt [2x] (10) Oil Pump Housing Gasket (11) Timing Chain (12) Crankshaft Sprocket (13) Crankshaft Balancer Key (14) Camshaft Position Actuator Solenoid Valve (15) Camshaft Position Actuator (16) Camshaft Retainer (17) Camshaft Retainer Bolt [4x]
