Tahoe / Yukon Service Manual

Front Bumper Fascia Extension Replacement

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

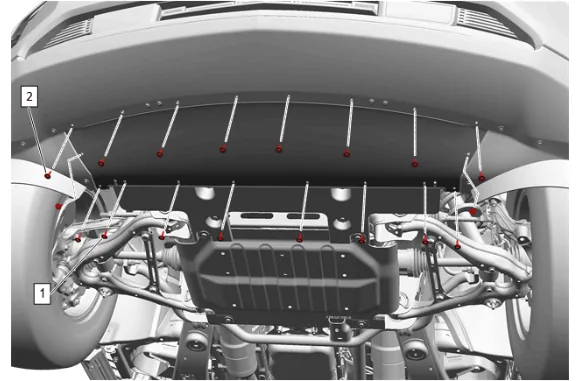

Front Bumper Fascia Extension Replacement — figure 1
Front Bumper Fascia Extension Replacement — figure 1
  1. Front Bumper Fascia Air Deflector Bolt (1) » Remove [10x]
  2. Front Bumper Fascia Extension Bolt (2) » Remove [8x]

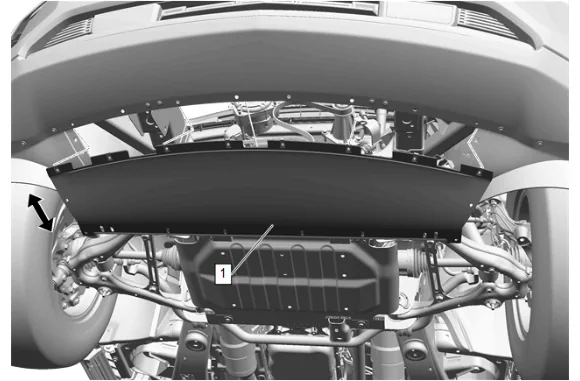

Front Bumper Fascia Extension Replacement — figure 2
Front Bumper Fascia Extension Replacement — figure 2

  1. Pull the front bumper fascia extension (1) rearward and down from the front bumper fascia. Installation Procedure

  2. Front Bumper Fascia Extension (1) » Install

  1. Front Bumper Fascia Extension Bolt (2) » Install and tighten [8x] — Fastener Specifications
  2. Front Bumper Fascia Air Deflector Bolt (1) » Install and tighten [10x] — Fastener Specifications
  3. Lower the vehicle.
