Tahoe / Yukon Service Manual

Outside Rearview Mirror Housing Upper Cover Replacement

Outside Rearview Mirror Housing Upper Cover Replacement Removal Procedure

Outside Rearview Mirror Housing Upper Cover Replacement — figure 1
Outside Rearview Mirror Housing Upper Cover Replacement — figure 1
  1. Apply masking tape over the outside rearview mirror glass (1).
Outside Rearview Mirror Housing Upper Cover Replacement — figure 2
Outside Rearview Mirror Housing Upper Cover Replacement — figure 2
  1. Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Outside Rearview Mirror Housing Upper Cover Replacement — figure 3
Outside Rearview Mirror Housing Upper Cover Replacement — figure 3
  1. Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).

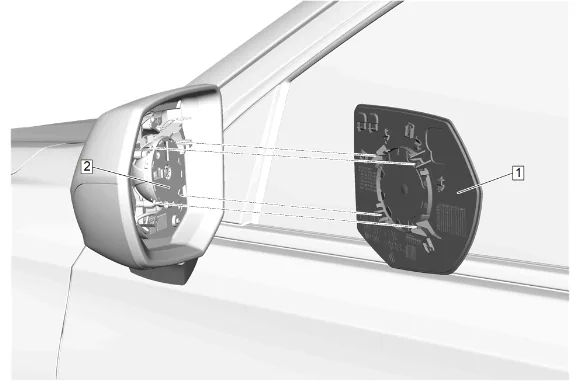

Outside Rearview Mirror Housing Upper Cover Replacement — figure 4
Outside Rearview Mirror Housing Upper Cover Replacement — figure 4
  1. Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).
  2. Disconnect all electrical connectors.

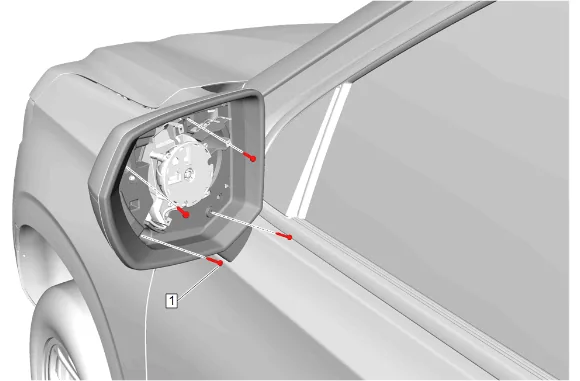

Outside Rearview Mirror Housing Upper Cover Replacement — figure 5
Outside Rearview Mirror Housing Upper Cover Replacement — figure 5
  1. Outside Rearview Mirror Opening Applique Bolt (1) » Remove [4x]

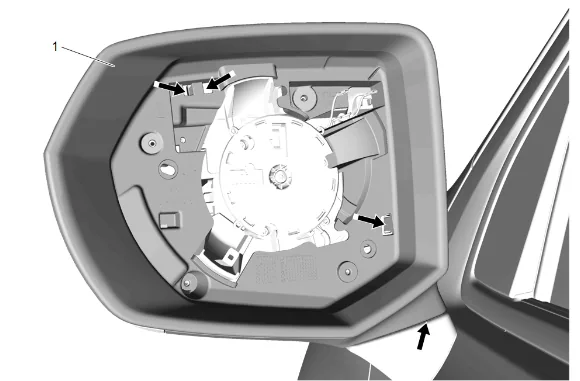

Outside Rearview Mirror Housing Upper Cover Replacement — figure 6
Outside Rearview Mirror Housing Upper Cover Replacement — figure 6
  1. Release the retaining tabs on the outside rearview mirror housing bezel (1).

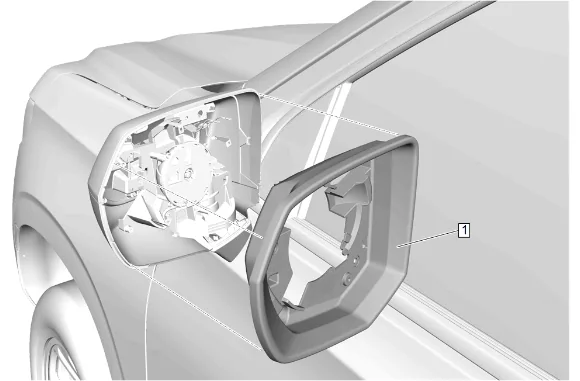

Outside Rearview Mirror Housing Upper Cover Replacement — figure 7
Outside Rearview Mirror Housing Upper Cover Replacement — figure 7
  1. Outside Rearview Mirror Housing Bezel (1) » Remove

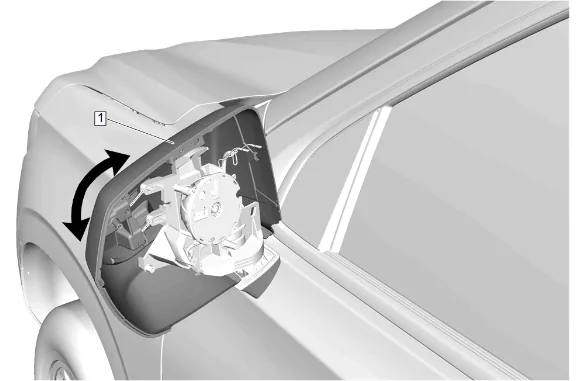

Outside Rearview Mirror Housing Upper Cover Replacement — figure 8
Outside Rearview Mirror Housing Upper Cover Replacement — figure 8
  1. Rotate the outside rearview mirror housing cover (1).

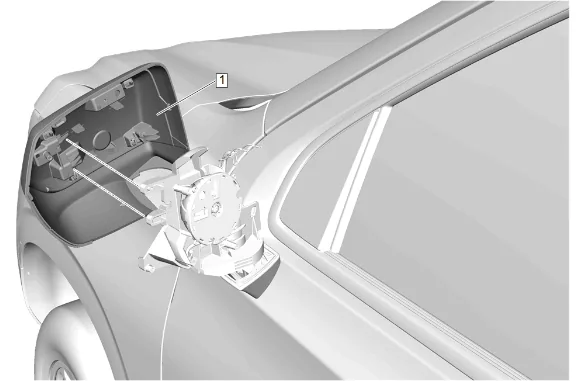

Outside Rearview Mirror Housing Upper Cover Replacement — figure 9
Outside Rearview Mirror Housing Upper Cover Replacement — figure 9
  1. { If equipped } Disconnect the electrical connectors.
  2. Remove the outside rearview mirror housing cover (1).
Outside Rearview Mirror Housing Upper Cover Replacement — figure 10
Outside Rearview Mirror Housing Upper Cover Replacement — figure 10

  1. Release the retaining tabs.

  2. Outside Rearview Mirror Housing Upper Cover (1) » Remove Installation Procedure

  3. Outside Rearview Mirror Housing Upper Cover (1) » Install

  4. Ensure the retaining tabs have fully secured.

  5. Install the outside rearview mirror housing cover (1).

  6. { If equipped } Connect the electrical connectors.

  7. Rotate the outside rearview mirror housing cover (1) into place.

  8. Outside Rearview Mirror Housing Bezel (1) » Install

  9. Ensure the retaining tabs on the outside rearview mirror housing bezel (1) have fully secured.

  1. Outside Rearview Mirror Opening Applique Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Connect all electrical connectors.

  3. Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).

  4. Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass is fully secured.

  5. Remove the masking tape from the outside rearview mirror glass (1).

  6. Inspect the outside rearview mirror for proper operation.
