Rear Seat Frame Lubrication

Note

40 Percent/Bucket Seat shown, 60 Percent Seat similar. Lower Rear Pivot Tube - Front Side

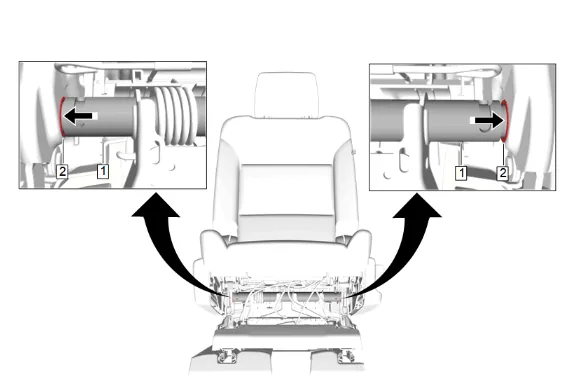

Rear Seat Frame Lubrication — figure 1

1. With the seat in the upright position, apply AC Delco® Super Lube® between the lower rear pivot tube (1) and the lower rear pivot tube bushing (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers Upper Front Pivot Legs

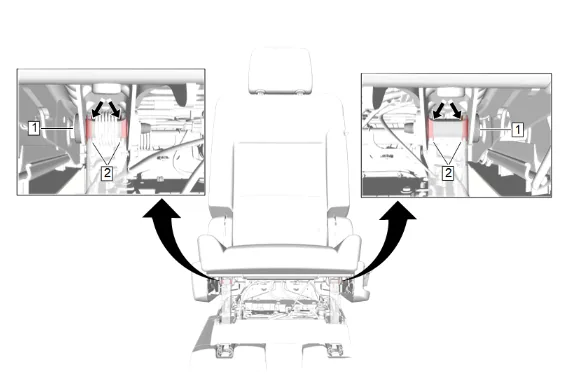

Rear Seat Frame Lubrication — figure 2

1. With the seat in the upright position, apply AC Delco® Super Lube® between the upper front pivot leg bolt (1) and the upper front pivot leg bushings (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers Lower Pivot Joints

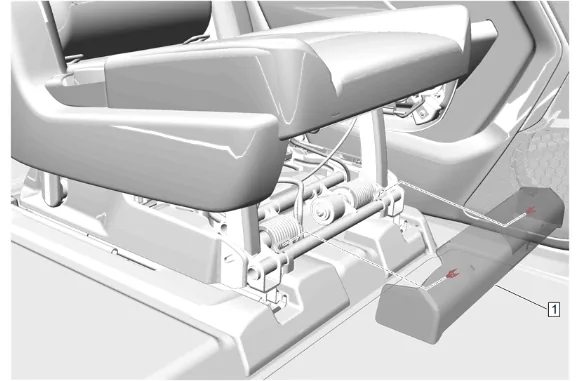

Rear Seat Frame Lubrication — figure 3

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Rear Seat Riser Finish Cover (1) » Remove

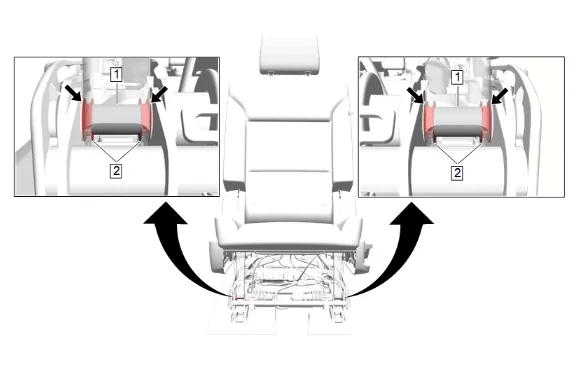

Rear Seat Frame Lubrication — figure 4

3. With the seat in the upright position, apply AC Delco® Super Lube® between the lower pivot leg bolt (1) and the lower pivot leg bushings (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers Tumble Springs

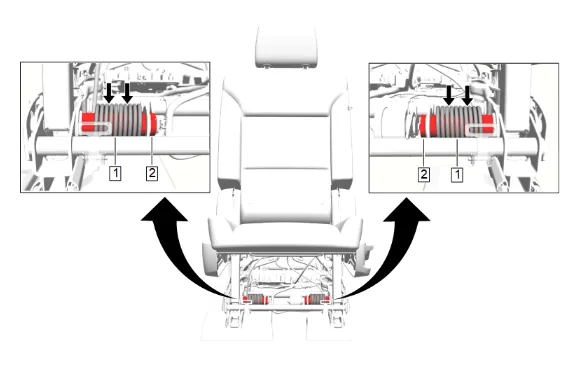

Rear Seat Frame Lubrication — figure 5

1. With the seat in the upright position, apply AC Delco® Super Lube® on the rear seat tumble spring (1) and the rear seat tumble spring mandrel (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers

2. Rear Seat Riser Finish Cover (1) » Install Lower Rear Pivot Tube - Rear Side

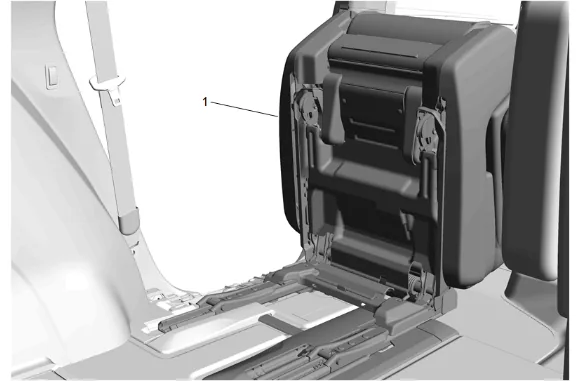

Rear Seat Frame Lubrication — figure 6

1. Place the rear seat (1) in the fold and tumble position.

Rear Seat Frame Lubrication — figure 7

2. With the seat in the fold and tumble position, apply AC Delco® Super Lube® between the lower rear pivot tube (1) and the lower rear pivot tube bushing (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers Lower Rear Pivot Joint Spacers

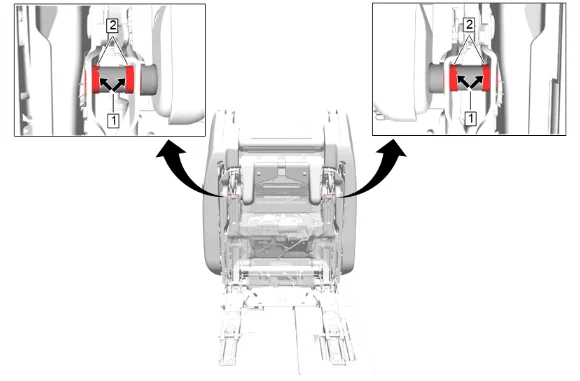

Rear Seat Frame Lubrication — figure 8

1. Reposition the rear seat cushion trim panel as necessary to access the lower rear pivot joint spacers (1).
2. With the seat in the fold and tumble position, apply AC Delco® Super Lube® between the lower rear pivot joint spacer (1) and the lower rear pivot joint spacer bushings (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers
3. Return the rear seat cushion trim panel to the original position. Lower Front Pivot Legs

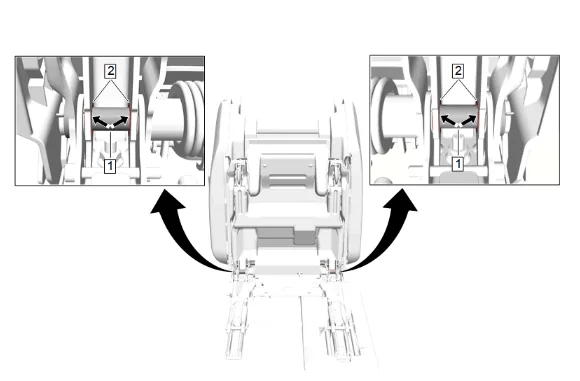

Rear Seat Frame Lubrication — figure 9

1. With the seat in the fold and tumble position, apply AC Delco® Super Lube® between the lower front pivot leg bolt (1) and the lower front pivot leg bushings (2) on both sides of the seat frame. Adhesives, Fluids, Lubricants, and Sealers
2. Return the seat to its original position.
