Tahoe / Yukon Service Manual

Intake Air Pressure and Temperature Sensor Replacement

Removal Procedure

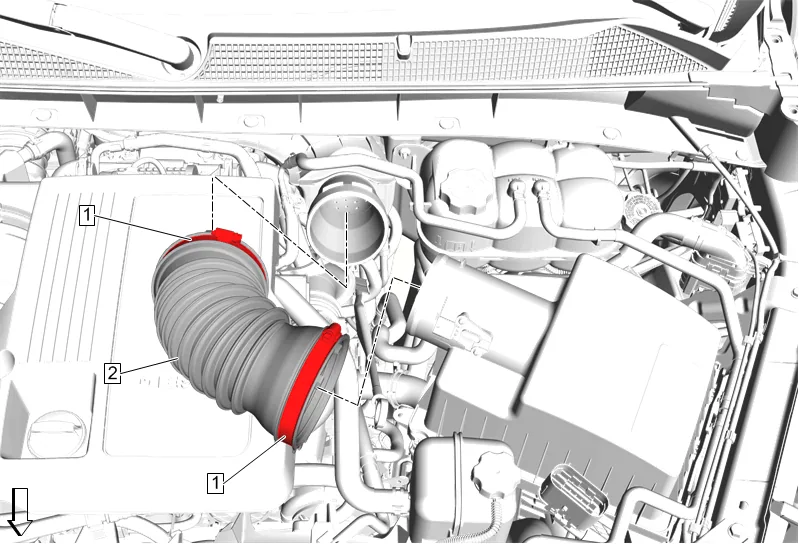

Intake Air Pressure and Temperature Sensor Replacement — figure 1
Intake Air Pressure and Temperature Sensor Replacement — figure 1
  1. Air Cleaner Outlet Duct Clamp (1) » Loosen [2x]
  2. Air Cleaner Outlet Front Duct (2) » Remove
  3. Plenum Front Panel Outer Reinforcement (1) » Remove — Plenum Front Panel Outer Reinforcement Removal and Installation

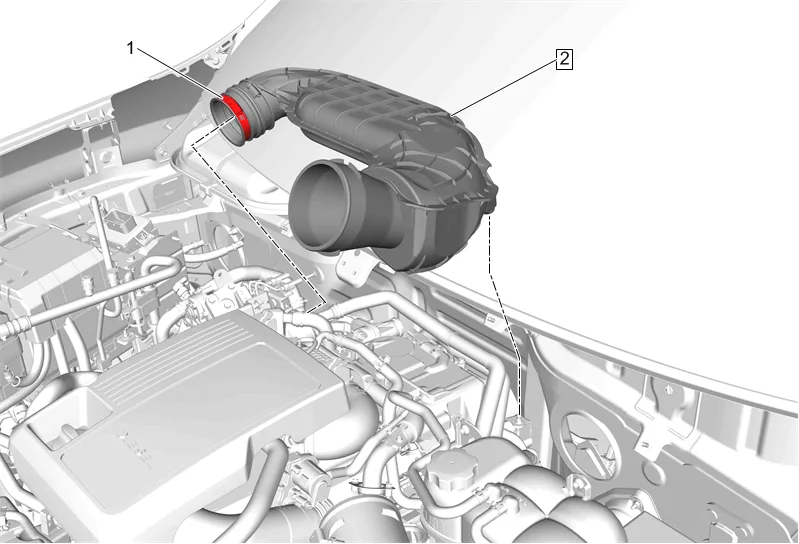

Intake Air Pressure and Temperature Sensor Replacement — figure 2
Intake Air Pressure and Temperature Sensor Replacement — figure 2
  1. Air Cleaner Outlet Duct Clamp (1) » Loosen
  2. Air Cleaner Outlet Duct (2) » Remove

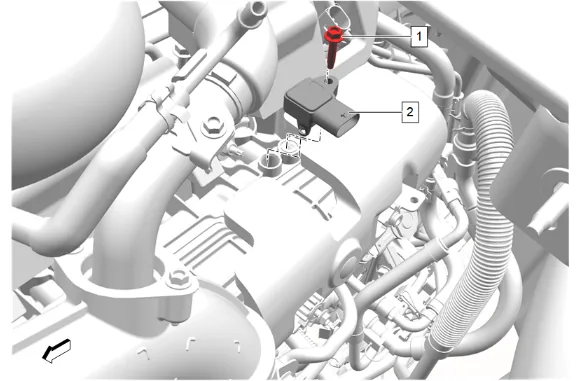

Intake Air Pressure and Temperature Sensor Replacement — figure 3
Intake Air Pressure and Temperature Sensor Replacement — figure 3

  1. Disconnect the intake air pressure and temperature sensor electrical connector.

  2. Intake Air Pressure and Temperature Sensor Bolt (1) » Remove

  3. Intake Air Pressure and Temperature Sensor (2) » Remove Installation Procedure

  4. Intake Air Pressure and Temperature Sensor (2) » Install

  5. Intake Air Pressure and Temperature Sensor Bolt (1) » Install and tighten — Fastener Specifications

  6. Connect the intake air pressure and temperature sensor electrical connector.

  7. Air Cleaner Outlet Duct (2) » Install

  1. Air Cleaner Outlet Duct Clamp (1) » Tighten — Fastener Specifications

  2. Plenum Front Panel Outer Reinforcement (1) » Install — Plenum Front Panel Outer Reinforcement Removal and Installation

  3. Air Cleaner Outlet Front Duct (2) » Install

  4. Air Cleaner Outlet Duct Clamp (1) » Tighten [2x] — Fastener Specifications
