Battery Auxiliary Tray Replacement (9C1, 5W4)

Removal Procedure

Disable the SIR system. SIR Disabling and Enabling

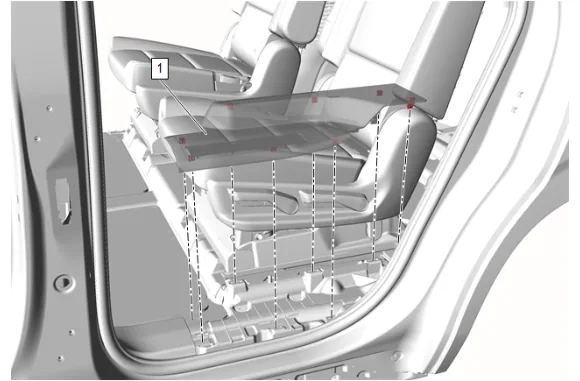

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 1

Using a flat-bladed plastic trim tool, release the retaining clips.
Rear Side Door Sill Garnish Molding (1) » Remove

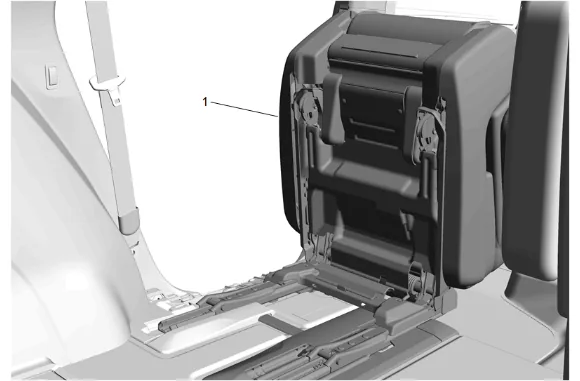

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 2

Place the rear seat (1) in the fold and tumble position.

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 3

Liftgate Lock Striker Cover (1) » Remove

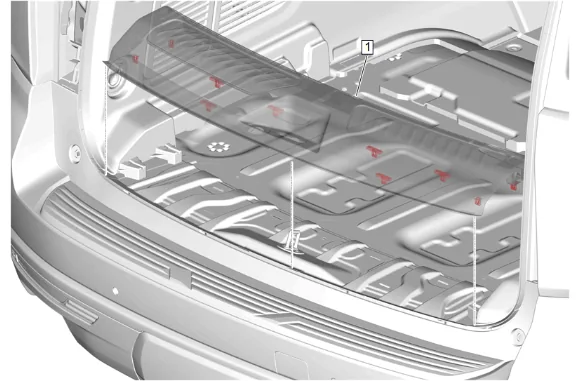

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 4

Using a flat-bladed plastic trim tool, release the retaining clips.
Rear End Trim Finish Panel (1) » Remove

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 5

Rear Seat Belt Retractor Sleeve (1) » Reposition
Rear Seat Belt Anchor Plate Bolt (2) » Remove

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 6

Rear Seat Belt Opening Bezel (1) » Disengage

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 7

Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
Quarter Window Trim Finish Panel Bolt (2) » Remove

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 8

Using a flat-bladed plastic trim tool, release the retaining clips.
Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.
Body Lock Pillar Upper Trim Panel (1) » Remove

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 9

Using a flat-bladed plastic trim tool, release the retaining clips.
Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

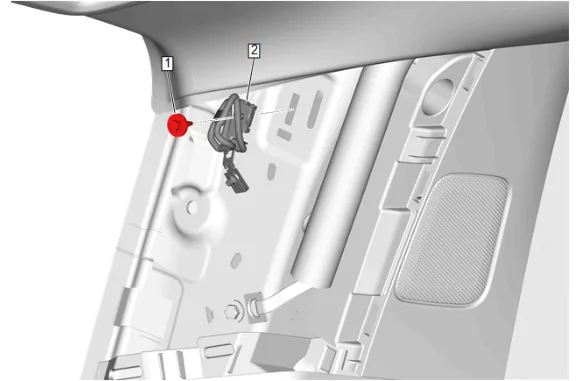

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 10

Body Side Rear Window Garnish Molding Bolt (1) » Remove
Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 11

Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 12

Using a flat-bladed plastic trim tool, release the retaining clips.
Body Rear Corner Upper Garnish Molding (1) » Remove

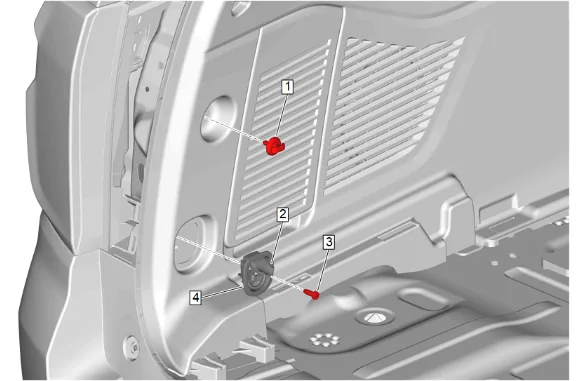

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 13

Convenience Net Retainer (1) » Remove
Cargo Tie Down Loop Bolt Cap (2) » Open
Cargo Tie Down Loop Bolt (3) » Remove
Cargo Tie Down Loop (4) » Remove

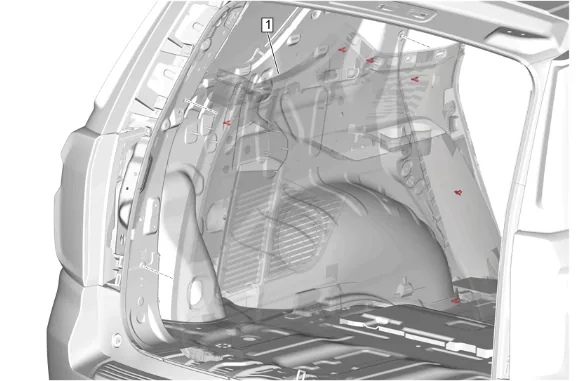

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 14

Using a flat-bladed plastic trim tool, release the retaining clips.
Remove the USB “C” port electrical connector and disengage the harness retainer.
Quarter Lower Rear Trim Panel (1) » Remove
Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

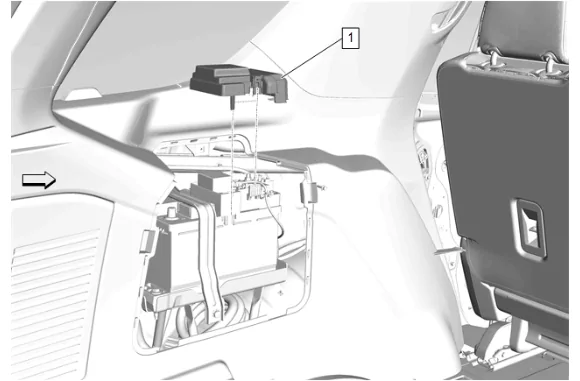

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 15

Disengage the retaining tabs and remove the battery distribution fuse block cover (1).

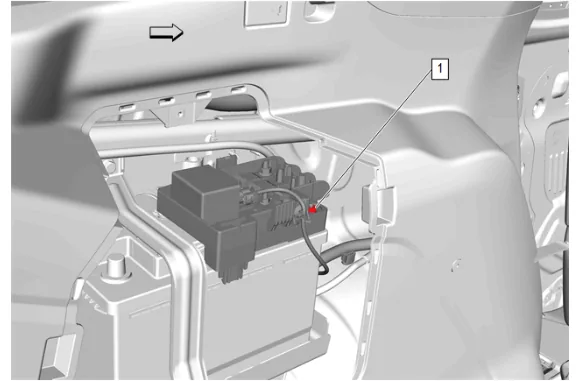

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 16

Battery Positive Post Clamp Nut (1) » Loosen

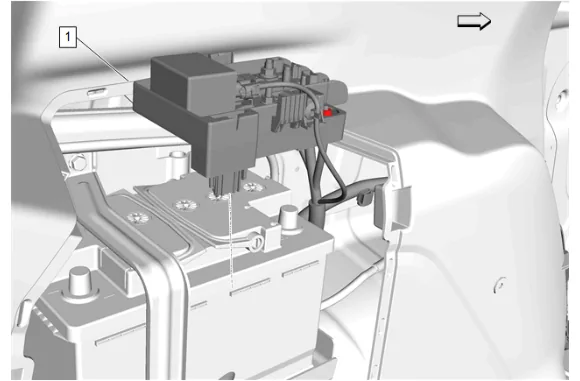

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 17

Disengage the retaining tabs and reposition away the battery distribution fuse block (1).

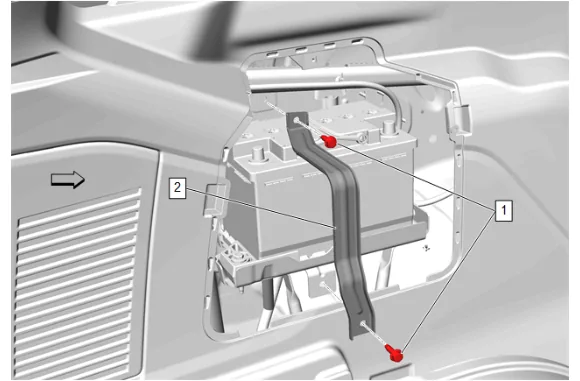

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 18

Battery Hold Down Strap Bolt (1) » Remove [2x]
Battery Auxiliary Tray Hold Down Strap (2) » Remove

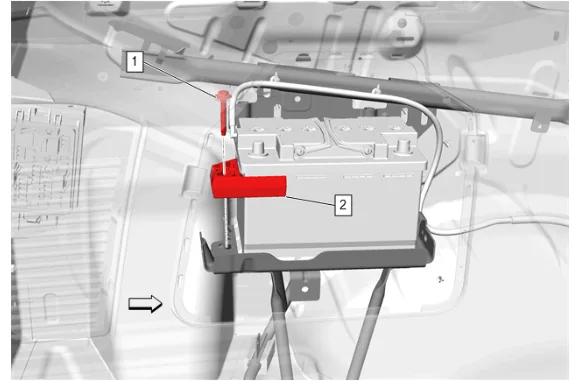

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 19

Battery Hold Down Retainer Bolt (1) » Remove
Battery Hold Down Retainer (2) » Remove

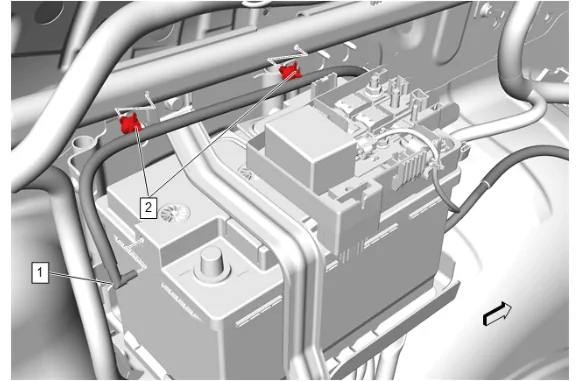

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 20

Battery Vent Tube (1) » Remove
Retainer (2) » Disengage [2x]

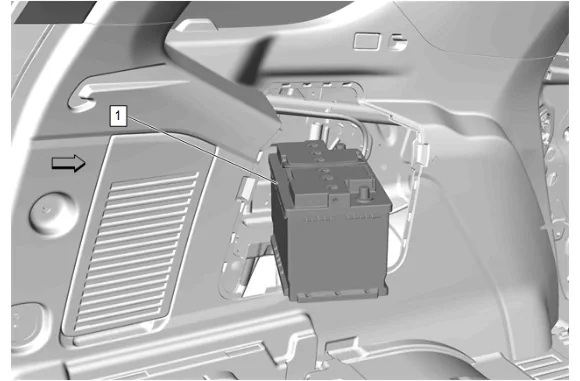

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 21

Battery (1) » Remove

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 22

Retainer (1) » Disengage

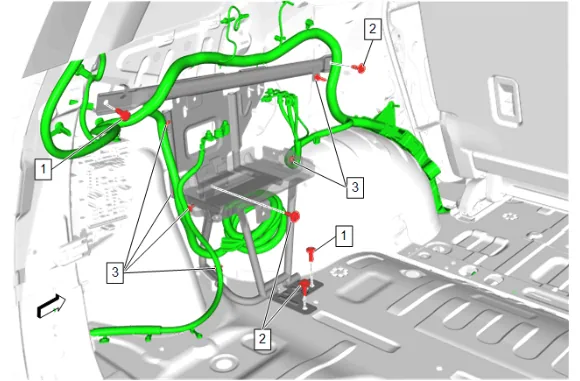

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 23

Retainer (3) » Disengage [6x]
Battery Auxiliary Tray Bolt (1) » Remove [2x]
Battery Auxiliary Tray Bolt (2) » Remove [3x]

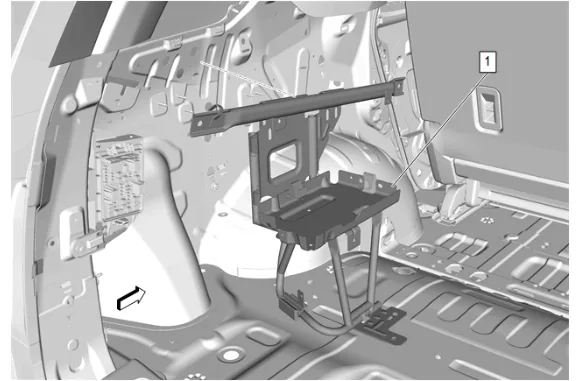

Battery Auxiliary Tray Replacement (9C1, 5W4) — figure 24

Battery Auxiliary Tray (1) » Remove Installation Procedure
Battery Auxiliary Tray (1) » Install

Battery Auxiliary Tray Bolt (2) » Install and tighten [3x] — Fastener Specifications
Battery Auxiliary Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications
Retainer (3) » Engage [6x]
Retainer (1) » Engage
Battery (1) » Install
Battery Vent Tube (1) » Install
Retainer (2) » Engage [2x]
Battery Hold Down Retainer (2) » Install
Battery Hold Down Retainer Bolt (1) » Install and tighten — Fastener Specifications
Battery Auxiliary Tray Hold Down Strap (2) »
Battery Hold Down Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications
Engage the retaining tabs and install the battery distribution fuse block (1).
Battery Positive Post Clamp Nut (1) » Tighten — Fastener Specifications
Engage the retaining tabs and install the battery distribution fuse block cover (1).
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Connect the electrical connector to USB “C” port and engage the harness retainer.
Quarter Lower Rear Trim Panel (1) » Install
Cargo Tie Down Loop (4) » Install
Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications
Cargo Tie Down Loop Bolt Cap (2) » Close
Convenience Net Retainer (1) » Install and tighten — Fastener Specifications
Body Rear Corner Upper Garnish Molding (1) » Install
Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications
Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install
Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications
Position the body side rear window garnish molding tether in the same position as before the molding removal.
Body Side Rear Window Garnish Molding (1) » Install
Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.
Body Lock Pillar Upper Trim Panel (1) » Install
Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications
Quarter Window Trim Finish Panel Bolt Cap (1) » Install
Rear Seat Belt Opening Bezel (1) » Install
Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications
Rear Seat Belt Retractor Sleeve (1) » Reposition
Rear End Trim Finish Panel (1) » Install
Liftgate Lock Striker Cover (1) » Install
Return the rear seat (1) to the original position.
Rear Side Door Sill Garnish Molding (1) » Install
Enable the SIR System. SIR Disabling and Enabling
