Brake System Control Module Replacement

Single Use Fasteners and Components Electronic Brake Control Module Bolt [6x]

Warning

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

Warning

Brake Fluid Irritant Warning

Caution

Brake Fluid Effects on Paint and Electrical Components Caution Removal Procedure

1. Prepare the brake system control module for removal. Control Module References
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Front Wheelhouse Liner » Remove — Front Wheelhouse Liner Replacement

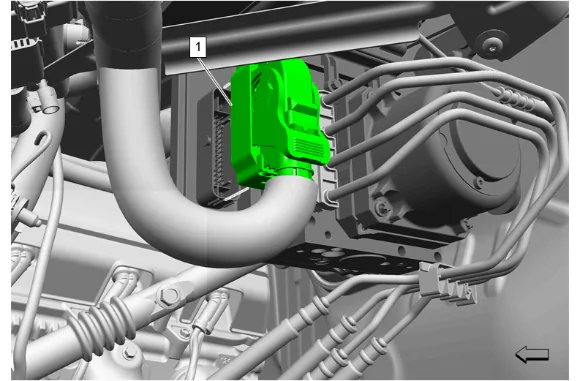

Brake System Control Module Replacement — figure 1

4. Electrical Connector (1) @ Brake System Control Module » Disconnect

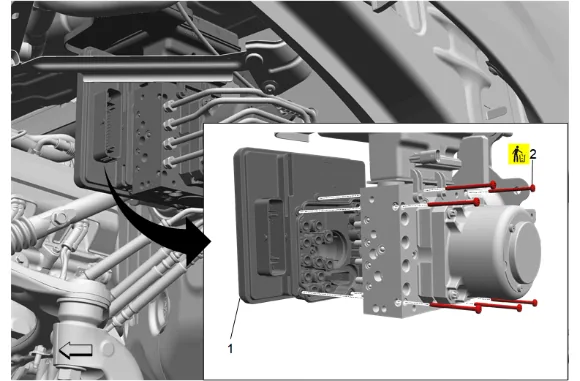

Brake System Control Module Replacement — figure 2

5. Electronic Brake Control Module Bolt (2) » Remove and DISCARD [6x]

6. Brake System Control Module (1) » Remove Installation Procedure

7. Brake System Control Module (1) » Install

Caution

Refer to Fastener Caution.

2. Electronic Brake Control Module Bolt (2) » Install NEW and tighten in sequence [6x] — Fastener Specifications

3. Electrical Connector (1) @ Brake System Control Module » Connect

4. Front Wheelhouse Liner » Install — Front Wheelhouse Liner Replacement

5. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

6. Reprogram the brake system control module. Control Module References
