Torque Converter Removal and Holding Fixture Installation

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4738340 Torque Converter Removal and Holding Fixture Installation Special Tools DT-46409 Torque Converter Lifting Handles DT-03289-20 Holding Fixture Base Assembly DT-48989 Holding Fixture Equivalent regional tools: Special Tools

Torque Converter Removal and Holding Fixture Installation — figure 1
Torque Converter Removal and Holding Fixture Installation — figure 1

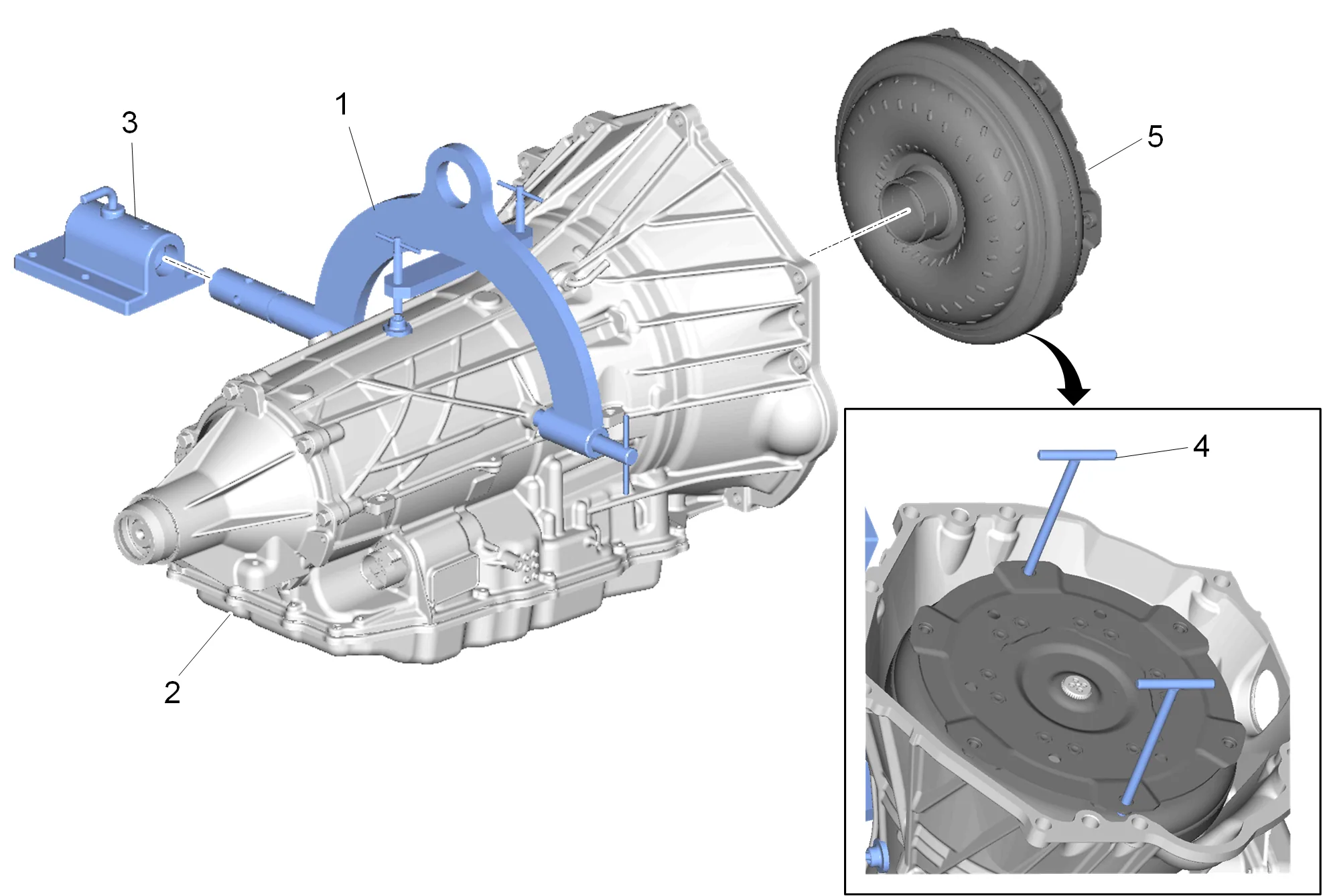

  1. Attach and secure DT-48989 Holding Fixture (1) to the Automatic Transmission Case (2).
  2. Support the transmission with a overhead hoist attached to DT-48989 Holding Fixture (1).
  3. Install DT-48989 Holding Fixture (1) with the Automatic Transmission Case (2) into the DT-03289- 20 Holding Fixture Base Assembly (3).
  4. Rotate the transmission so that the converter housing is up and secure with locking pin.
  5. Install DT-46409 Torque Converter Lifting Handles (4) into the Torque Converter (5).
  6. Torque Converter (5) » Remove
