Camshaft Housing and Components

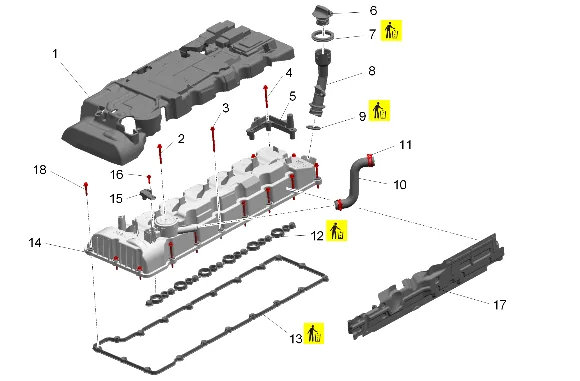

Camshaft Housing and Components — figure 1

(1) Camshaft Housing Cover Insulator (2) Camshaft Housing Cover Bolt [7x] (3) Camshaft Housing Cover Bolt [7x] (4) Camshaft Housing Cover Bolt [3x] (5) Charge Air Cooler Bracket (6) Oil Filler Cap (7) Oil Filler Cap Seal (8) Oil Filler Tube (9) Oil Filler Cap Seal (10) Positive Crankcase Ventilation Hose (11) Positive Crankcase Ventilation Hose Clamp [2x] (12) Camshaft Housing Gasket (13) Camshaft Housing Gasket (14) Camshaft Housing (15) Crankcase Pressure Sensor (16) Bolt @ Crankcase Pressure Sensor (17) Charge Air Cooler Bracket (18) Camshaft Housing Cover Bolt [9x]
